The screens in this chapter are those you would see when configuring a Point-to-Point (router) network. The Point-to-Point Network Interface Configuration branch of NMMGR begins with a screen called the Network Interface Configuration screen. Figure 6-1 "Point-to-Point Network Interface Configuration Screen Flow" shows the screen flow for configuring the Point-to-Point (router) screens. Screens unique to Point-to-Point are indicated by bold boxed screens. [FUNCTION] denotes the function key used at a screen to invoke the next screen on the screen flow.

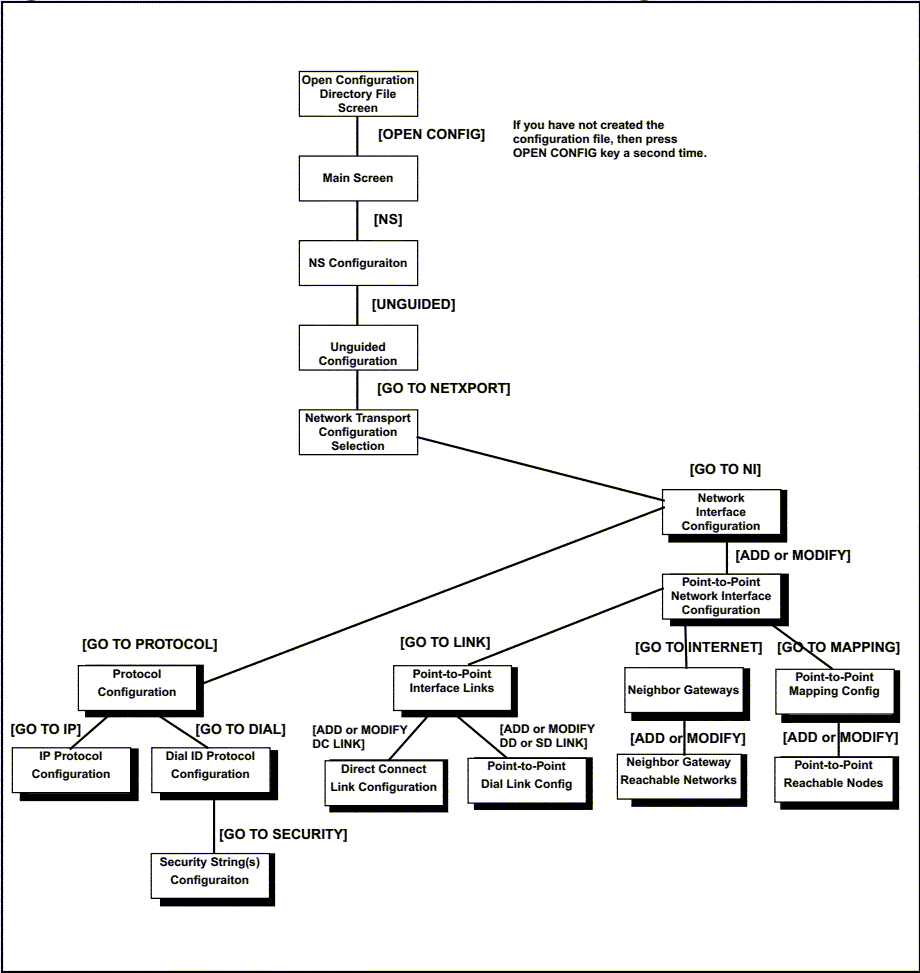

Figure 6-1 Point-to-Point Network Interface Configuration Screen Flow

[Point-to-Point Network Interface Configuration Screen Flow]
