The Protocol Configuration screen (#113) in
Figure 6-4 "Protocol Configuration Screen"
is displayed when you press the [Go To PROTOCOL] function key at the
Point-to-Point Network Interface Configuration screen
(Figure 6-3 "Point-to-Point Network Interface
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.PROTOCOL
in the Command window of any screen and press the [Enter] key, where
NIname is a configured point-to-point (router) NI name.

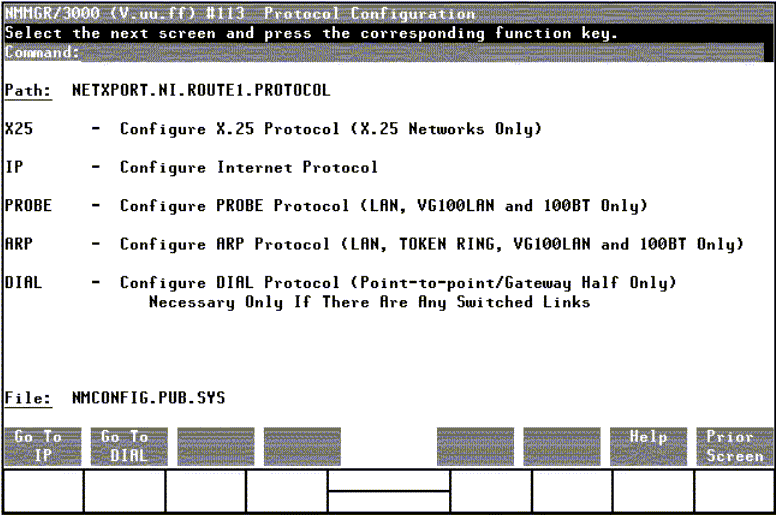

Figure 6-4 Protocol Configuration Screen
For a point-to-point NI, you must configure the IP protocol.
The Dial protocol must be configured if you have switched lines.
Choose the protocol to configure and press the corresponding function key.
