The Point-to-Point Network Interface Links screen (#119) in
Figure 6-8 "Point-to-Point Network Interface
Links Screen" is displayed when you press the [Go To LINK] function
key at the Point-to-Point Network Interface Configuration screen
(Figure 6-3 "Point-to-Point Network Interface
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.LINK
in the Command window of any screen and press the [Enter] key, where
NIname is a configured point-to-point NI.

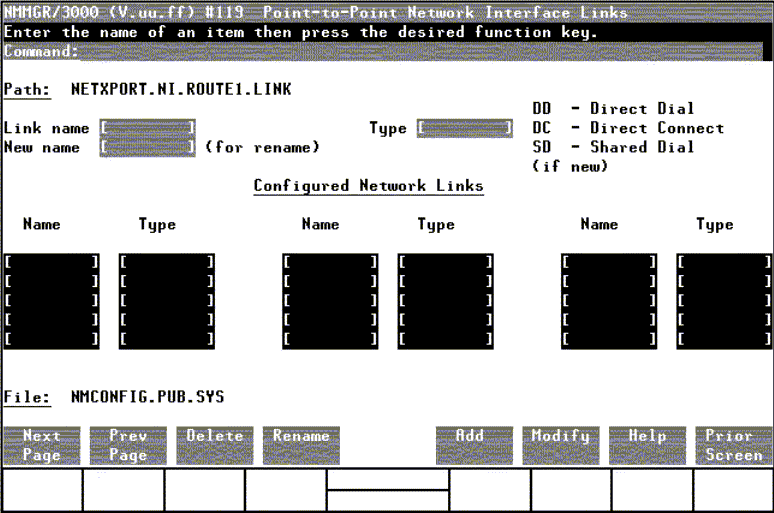

Figure 6-8 Point-to-Point Network Interface Links Screen
To define a new NI link configuration, specify the link name and
link type; then press the [Add] function key. The path for the
selected link name is added to the configuration file, and the data
screen on the path is displayed. Up to 40 network links are
supported per Router NI.
To modify an existing NI link configuration, specify the link
name; then press the [Modify] function key. The data screen on
the path for the specified link is displayed.
To change the link name of an existing NI link configuration,
specify the link name and a new name; then press the [Rename]
function key. The previously configured name is replaced, and the
screen displays the new name in a display field under the label
Configured Network Links.
To delete an existing NI link configuration, specify the link
name; then press the [Delete] function key. Press the
[Delete] function key again to confirm the deletion. The
previously configured name is deleted and is no longer displayed in a
display field under the label Configured Network Links.
Fields
Link name
Enter the same link name that you entered in the Link Configuration:
LAP-B Link Data screen (Figure 3-4
"Link Configuration: LAPBMUX Link Data Screen") for this node. This
enables network transport to associate the correct link with this
point-to-point NI. The link name is used by network transport when
establishing connections.
The name can contain as many as eight alphanumeric characters, and the
first character must be alphabetic.
Related screens:
LINK.linkname
The link name of type LAP-B specified in this screen for this node
must match the link name in this Point-to-Point Network Interface
Link screen.
NETXPORT.NI.NIname.MAPPING.mapentry
This screen specifies which link to use to reach a specific node on
the point-to-point network. The link specified must be one entered
on the current screen.
Type
Enter DD, for "direct dial," if this is a dial link that
provides a connection to a single remote system over a phone line. For
direct dial links, the phone number dialed by the local node to reach the
remote node never changes.
Enter SD, for "shared dial," if this is a dial link that
provides connection to more than one remote system. Such a link is said
to be shared by more than one remote node, though the connection may only
be to one remote node at a time. If you choose shared dial, no other
nodes can be accessed through the remote host; it is an end point in the
connection.
Enter DC, for "direct connect," if this is a non-switched
point-to-point link (a private line, leased line, or hardwired
connection).
Related screen:
NETXPORT.NI.NIname.MAPPING.mapentry
This screen allows up to 1024 mappings of point-to-point links to
destination nodes. If multiple destinations are mapped to a single
link, the link must be configured as a shared dial (SD)
link in the current screen.
New name
(Required only when renaming an existing point-to-point link.)
Enter a link name. This new link name is used in place of the current
link name for an existing link configuration. Remember, the link name
must be the same as the link name configured in the Link Configuration:
LAP-B Link Data screen.
The name can contain as many as eight alphanumeric characters, and the
first character must be alphabetic.
