The Security String(s) Configuration screen (#110) supplies the security string
required by the Dial ID protocol for the node you are configuring. (Note that
the security string is not required if dial ID protocol is not enabled.) This
screen, shown in Figure 6-7 "Security String(s)
Configuration Screen", is displayed if you pressed the [Go To
Security] function key at the preceding Dial ID Protocol Configuration
screen (Figure 6-6 "Dial ID Protocol
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.PROTOCOL.DIAL.SECURITY
in the Command window of any screen and press the [Enter] key, where
NIname is a configured point-to-point NI.

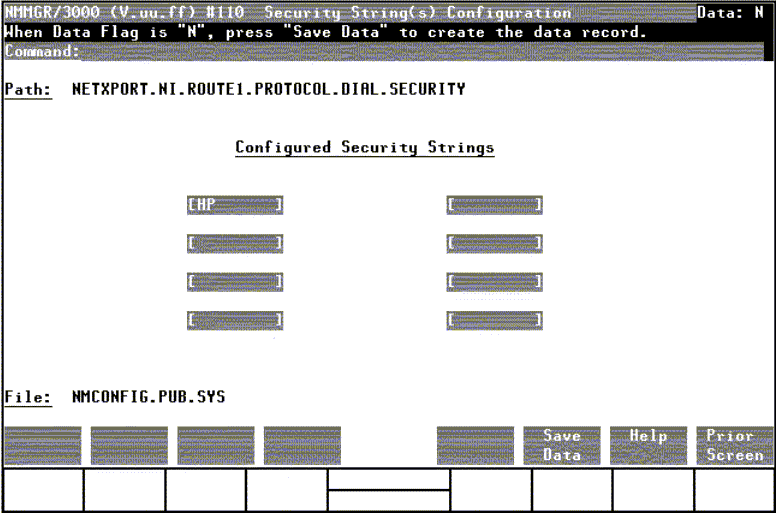

Figure 6-7 Security String(s) Configuration Screen
Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating. You verify that
the data record has been created by checking that the Data flag is set to
Y.
Fields
Configured security strings
Enter the security string that the remote nodes must use to gain dial
link access to the node you are configuring. The string can contain up to
eight alphanumeric characters, left justified, with no embedded blanks.
To delete a security string, blank out the field that contains the string
you want deleted, then press the [Save Data] function key.
Default value: HP
Related screen:
NETXPORT.NI.NIname.LINK.linkname
The dial IP protocol is enabled or disabled on this screen.
