Along with other information, the Dial ID Protocol Configuration screen (#103)
provides a means of verifying that the remote node is the intended remote node
and that both local and remote nodes have proper security access. This screen,
shown in Figure 6-6 "Dial ID Protocol
Configuration Screen", is displayed when you press the function key for
[Go To DIAL] at the Protocol Configuration screen
(Figure 6-4 "Protocol Configuration
Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.PROTOCOL.DIAL
in the Command window of any screen and press the [Enter] key, where
NIname is the configured point-to-point NI.

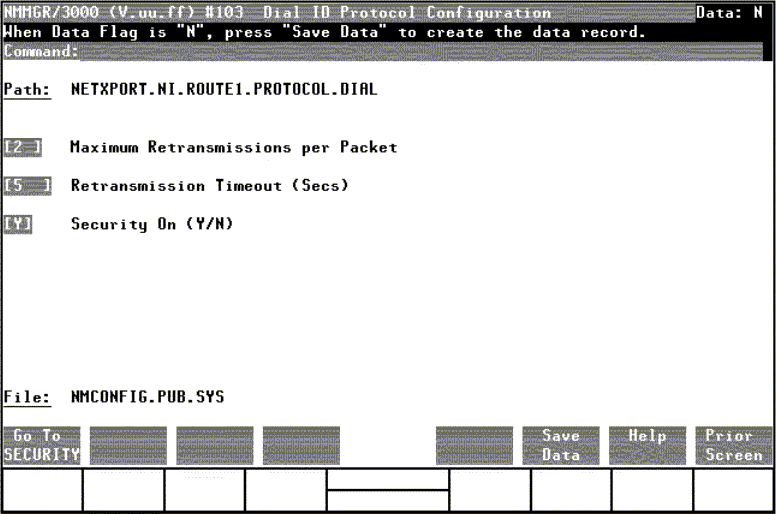

Figure 6-6 Dial ID Protocol Configuration Screen
Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating. Verify that the
data record has been created by checking that the Data flag is set to
Y.
After the data has been updated, press [Go To SECURITY] to proceed to
the next screen.
Fields
Maximum retransmissions per packet
(HP modifiable.) This is the maximum number of times that a
dial ID protocol packet will be retransmitted. If the expected response
to a packet is not received after this number of retransmissions, the
connection is closed.
This value is related to the retransmission timeout value discussed.
Multiplying these values results in the total time that passes before a
failure is reported (an error message is recorded when the timer
expires). HP recommends that you alter this value only upon the
recommendation of your HP representative. The higher the value, the
longer it will take to be notified of a link failure if one occurs. The
dial ID protocol is in use after the physical and data link levels have
been activated and before normal communication occurs.
Default value: 2
Range: 1-10
Retransmission timeout (secs)
(HP modifiable.) The retransmission timeout is the time
interval that passes between retransmissions of a Dial ID protocol
packet.
Multiplying the values configured for maximum number of retransmissions
per packet (described above) and retransmission timeout results in the
total time that passes before a failure is reported (an error message
will be recorded). HP recommends that you alter this value only upon the
recommendation of your HP representative. Note that if the value is set
too low, dial connections may fail unnecessarily when response times are
temporarily slowed by transient conditions such as an abnormally high
volume of traffic. The higher the value, the longer it will take to be
notified of a link failure if one occurs.
Default value: 5
Range: 1-10
Security on (Y/N)
A Y (Yes) value in this field indicates that security strings
are to be exchanged and validated between the node being configured and a
remote node.
When a dial connection is initiated by a remote node, the security string
sent by the remote node is checked against the list of valid security
strings configured for the dial ID protocol for this network interface.
(See "Related screens"). When a dial connection is initiated by this
node, the local dial ID protocol sends the destination's security string
(as configured on this node) to that node.
If security validation fails, an error message is logged, where
PARM indicates if the failure was local or remote. (See the
NS 3000/iX Error Messages Reference Manual for a description of
any error message received.)
Related screens:
NETXPORT.NI.NIname.PROTOCOL.DIAL.SECURITY
Security strings valid for this network are configured in this
screen.
NETXPORT.NI.NIname.MAPPING.mapentry
The remote node's security string is configured in this
screen.
