Chapter 5 LAN Network Interface Configuration Screens

MPE documents

Complete PDF
Table of Contents
Glossary
Index

Table of Contents
Network Interface (NI) Configuration
LAN Network Interface Configuration
Protocol Configuration
Internet Protocol Configuration
Probe Protocol Configuration
Address Resolution Protocol (ARP) Configuration
LAN Network Interface Link
Neighbor Gateways
Neighbor Gateway Reachable Networks
The screens in this chapter are those you would see when configuring IEEE 802.3/Ethernet LAN networks. These networks include 10Base-T, 100Base-T and 100VG-AnyLAN. Figure 5-1 "LAN Network Interface Configuration Screen Flow" shows the screen flow for configuring the IEEE 802.3/Ethernet LAN screens. Screens unique to the LAN are indicated by bold boxed screens. [FUNCTION] denotes the function key used at a screen to invoke the next screen on the screen flow.

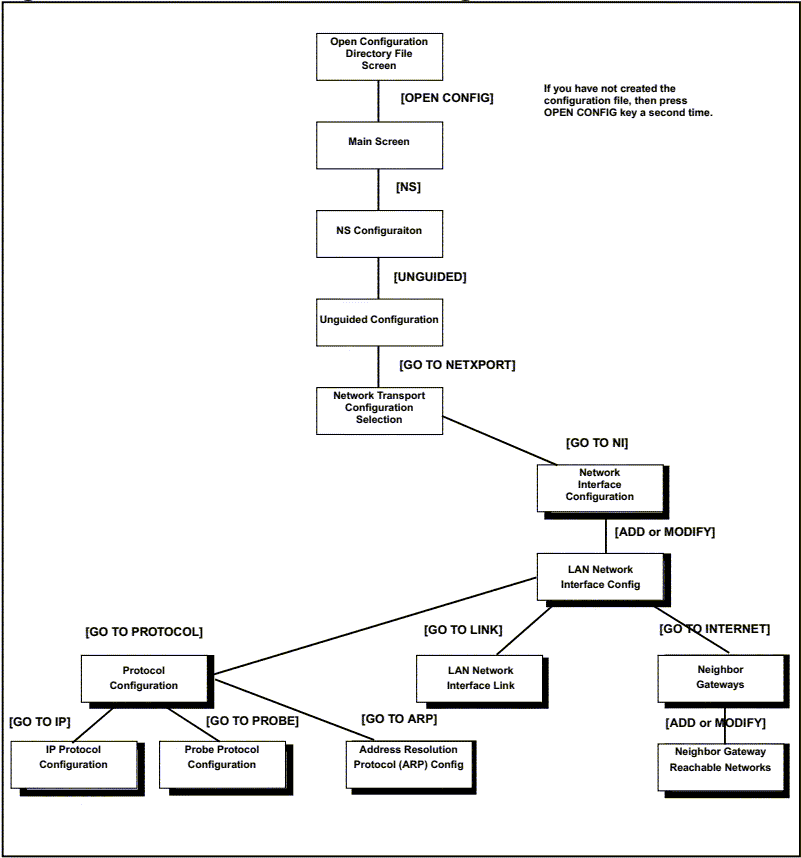

Figure 5-1 LAN Network Interface Configuration Screen Flow

[LAN Network Interface Configuration Screen Flow]



Network Interface Configuration

Network Interface (NI) Configuration
