The Protocol Configuration screen (#113) in
Figure 5-4 "Protocol Configuration Screen"
is displayed when you press the [Go To PROTOCOL] function key at the LAN
Network Interface Configuration screen (Figure
5-3 "LAN Network Interface Configuration Screen"). It is also displayed
when you type the path name:
@NETXPORT.NI.NIname.PROTOCOL
in the command window of any screen and press the [Enter] key, where
NIname is a configured LAN NI.

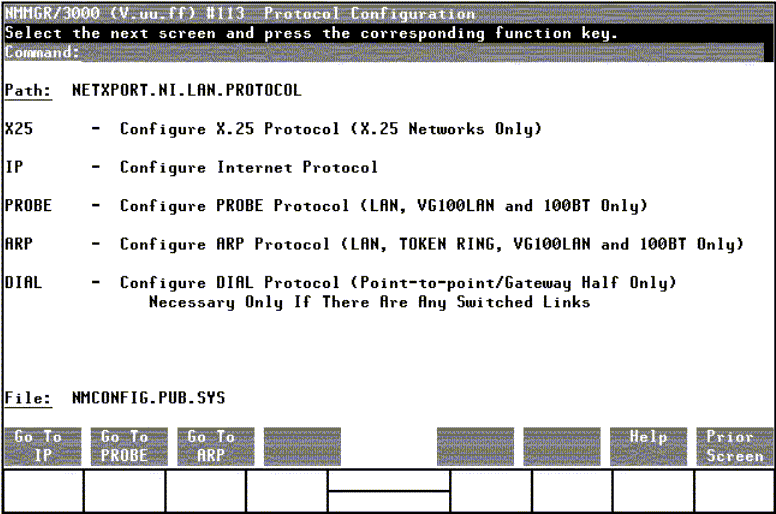

Figure 5-4 Protocol Configuration Screen
For the LAN NI, you configure the IP, probe, and ARP protocols. Choose the
protocol to configure, and press the corresponding function key.
