The LAN Network Interface Link screen (#107) in
Figure 5-8 "LAN Network Interface Link
Screen" is displayed when you press the [Go To LINK] function key at
the LAN Network Interface Configuration screen
(Figure 5-3 "LAN Network Interface
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.LINK
in the command window of any screen and press the [Enter] key, where
NIname is a configured LAN NI.

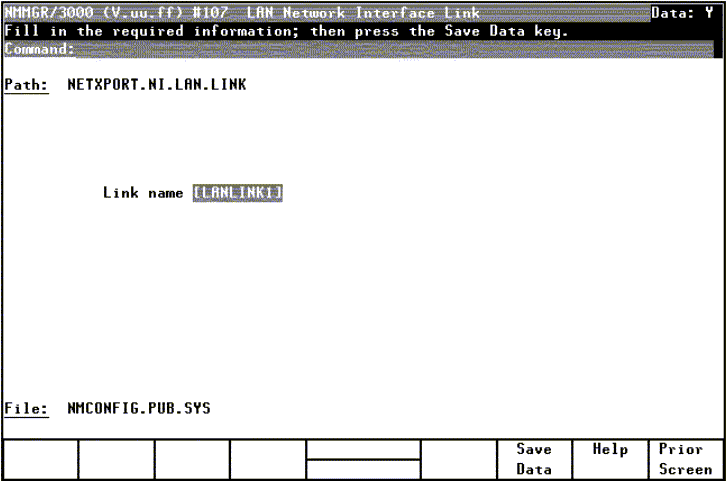

Figure 5-8 LAN Network Interface Link Screen
Use this screen to specify the link name for the NI. The link name is used by
the network transport when establishing connections.
Fields
Link name
Make sure this is the same link name configured at the LAN Link
Configuration screen (path name LINK). Press the
[Save Data] function key to save the link name in the
configuration file. Verify that the link name has been configured by
checking that the Data flag is set to Y.
This screen associates the link data with the LAN network interface data. The
link name is used by the network transport when establishing connections. The
link name can contain as many as eight alphanumeric characters, and the first
character must be alphabetic.
To change an existing link name, enter the new name in the Link name
field and press the [Save Data] function key.
