Network Interface Configuration

The Network Interface Configuration screen (#112) in Figure 4-8 "Network Interface Configuration Screen" is displayed when you press the [Go To NI] function key at the Network Transport Configuration Selection screen (Figure 4-2 "Network Transport Configuration Selection Screen"). It is also displayed when you type the path name:

@NETXPORT.NI

in the command window of any screen and press the [Enter] key.

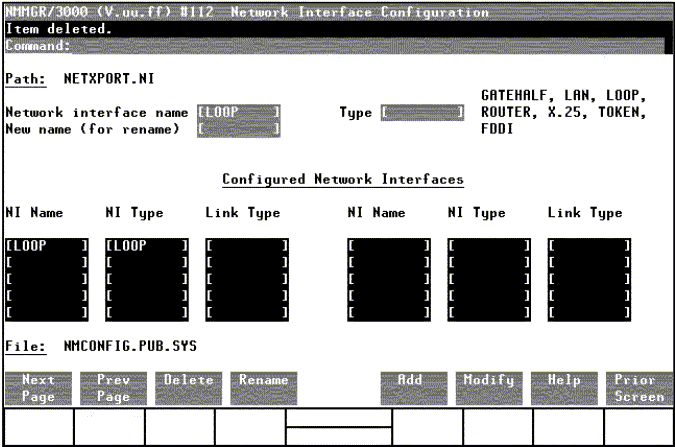

Figure 4-8 Network Interface Configuration Screen

For information on selecting a specific network interface, refer to the following Chapters:

LAN: Chapter 5 "LAN Network Interface Configuration Screens"
ROUTER: Chapter 6 "Point-to-Point (Router) Network Interface Configuration Screens"
X.25: Chapter 7 "X.25 Network Interface Configuration Screens"
TOKEN: Chapter 8 "Token Ring Network Interface Configuration Screens"
FDDI: Chapter 9 "FDDI Network Interface Configuration Screens"
GATEHALF: Chapter 10 "Gateway Half Network Interface Configuration Screens"
LOOP: Chapter 11 "Loopback Network Interface Configuration Screens"
