Chapter 4 Network Transport Configuration Screens

MPE documents

Complete PDF
Table of Contents
Glossary
Index

Table of Contents
Network Transort Configuration Selection
Global Transport Configuration
General Protocol Configuration
Packet Exchange Protocol (PXP) Configuration
Transmission Control Protocol (TCP) Configuration
User Datagram Protocol (UDP) Configuration
Network Interface Configuration
This section contains information about the NMMGR configuration screens that are common to all network interfaces. The network transport configuration branch of NMMGR begins with a screen called the Network Transport Configuration Selection screen. Figure 4-1 "Network Transport Configuration Screen Flow" shows the screen flow for configuring the Network Transport Configuration screens. Screens unique to the Network Transport Configuration are indicated by bold boxed screens. [FUNCTION] denotes the function key used at a screen to invoke the next screen on the screen flow

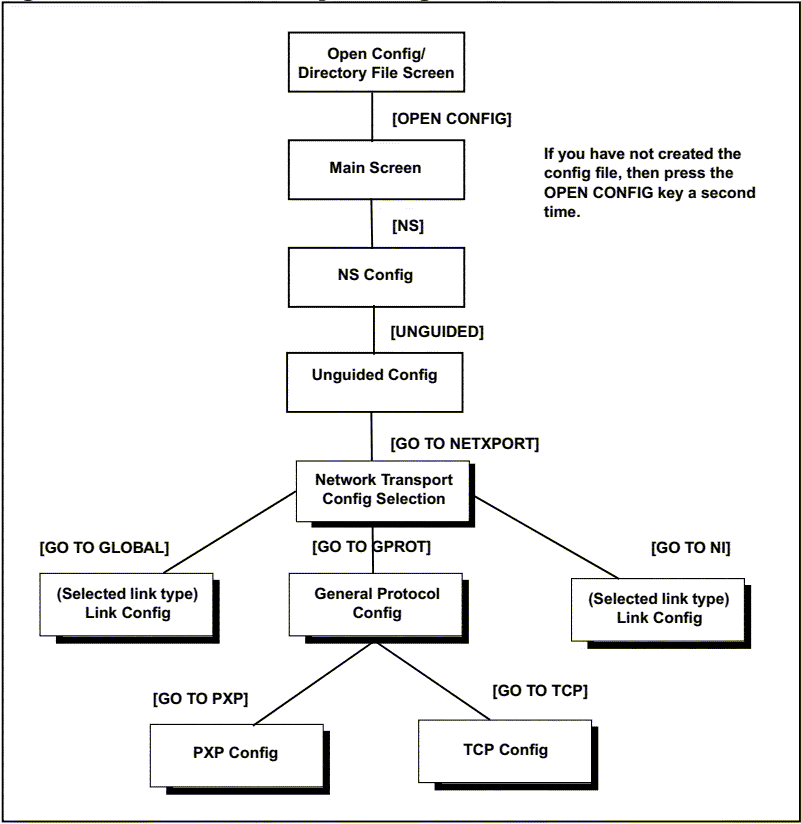

Figure 4-1 Network Transport Configuration Screen Flow

[Network Transport Configuration Screen Flow]

The Network Transport Configuration Selection screen allows you to define global parameters for the node as well as network interfaces of type LAN, ROUTER (point-to-point), X.25, SNA, TOKEN (Token Ring), FDDI, 100VG-AnyLAN, 100Base-T, Gateway Half, or Loopback.

To reach the network transport configuration screens, run NMMGR, and refer to the following pages of this section for a step-by-step process.

Step-by-Step Process:

  1. Run NMMGR. The Open Configuration/Directory File screen is displayed.

  2. Enter the configuration file name (NMCONFIG.PUB.SYS) and password, if a password is required, and press the [Open Config] function key. If you have not yet created the configuration file you will need to press the key a second time. The Main screen is displayed.

  3. Press the [NS] function key. The NS Configuration screen is displayed.

  4. Press the [Unguided Config] function key. The Unguided Configuration screen is displayed.

  5. Press the [Go To NETXPORT] function key and the Network Transport Configuration Selection screen is displayed.

For more general information on NMMGR, refer to Using the Node Management Services (NMS) Utilities.

NOTE: Fields described as "HP modifiable" should be changed only upon the recommendation of your Hewlett-Packard representative.
