This chapter provides step-by-step instructions for configuring local area
network (LAN), Token Ring, Fiber Distributed Data Interface (FDDI),
100VG-AnyLAN, and 100Base-T links. This manual assumes that you are using the
guided configuration capabilities of NMMGR.
Figure 6-1 "Configuring Screen Flow" shows the
screen flow for configuring LAN, Token Ring, FDDI, 100VG-AnyLAN, and 100Base-T
screens. Screens unique to the configuration of LAN, Token Ring, FDDI,
100VG-AnyLAN and 100Base-T are indicated by bold boxed screens.
[FUNCTION] denotes the function key used at a screen to invoke the next
screen on the screen flow.

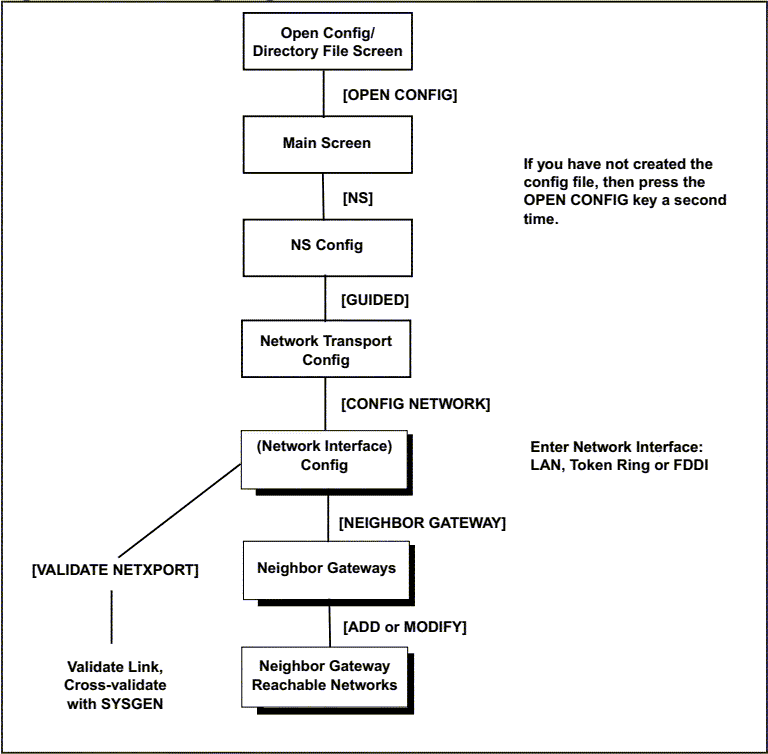

Figure 6-1 Configuring Screen Flow
Before using NMMGR to configure a link, you should complete the worksheets
provided. See Chapter 4 "Planning for Node
Configuration" for more information on planning your configuration and
filling out the configuration worksheets.
This chapter includes step-by-step instructions to help you perform the
following tasks:
Begin the configuration process.
Configure a LAN, Token Ring, FDDI, 100VG-AnyLAN, or 100Base-T
network interface.
Complete PDF![[Configuring Screen Flow]](img/gfx24.gif)
