The procedures that follow describe how to modify the NMMGR configuration file
for the introductory screens.
Start NMMGR
Node manager (NM) or network administrator (NA) capabilities are required to
run this program.
To run NMMGR:
Type NMMGR.PUB.SYS at the system prompt (:).
Press [RETURN].
NOTE: You can modify the link configurations in NMCONFIG.PUB.SYS
when the Network Services are active. However, the network must be
stopped and restarted for the changes made in NMMGR to be implemented.
If NS is down, you will see the following two messages in response to the
NETCONTROL STATUS command:
TRANSPORT NOT ACTIVE. (NETEXPORTWARN 0001) ENCOUNTERED ONE OR MORE WARNINGS
WHILE PROCESSING COMMAND. (CIWARN 4437)
Open Configuration File

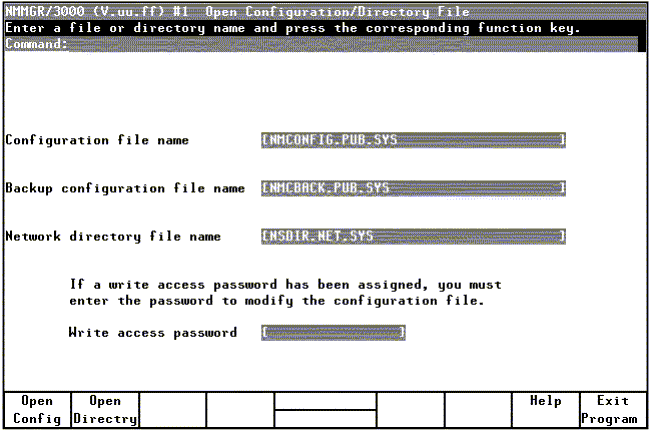

The Open Configuration/Directory File screen (#1) in
Figure 5-2 "Open Configuration/Directory File
Screen" is the first screen displayed when you run NMMGR.
Figure 5-2 Open Configuration/Directory File Screen
Follow the steps listed here to enter data for this screen. Refer to "Fields"
subsection for detailed information about each field on the screen.
Verify that the correct configuration file name, backup
configuration file name, and network directory file name are in the
appropriate fields.
If you have assigned a write access password, enter it in this
field. If you are not using the password feature, leave this field
blank.
Press the [Open Config] key. If you are creating the
configuration file for the first time, NMMGR will ask you to verify
creation. Press the [Open Config] key again to continue.
Fields
configuration file name
The only configuration file name the system recognizes for
use by the network subsystem is NMCONFIG.PUB.SYS. You
can, however, create or modify a configuration file using a
different name and save it as an offline configuration file.
You can use offline configuration files as a means of creating
and storing configurations that you want to use in the future
or that you are preparing for use on a different system. When
you are ready to use an offline configuration file,
rename it as NMCONFIG.PUB.SYS and reboot the system.
(Keep in mind that any file you use as a configuration file
must be successfully validated before you try to use
it.)
Backup configurationfile name
A backup file name must be specified whenever a
configuration file is opened or created. The default backup
configuration file name is NMCBACK.group.account. The
backup file will be automatically updated with the contents of
the configuration file each time the configuration file is
successfully validated.
Network directory file name
A network directory must be configured in the following
circumstances:
nodes running X.25
nodes not using domain name services
nodes on a LAN network that do not support the HP-PROBE
protocol
The only network directory file name supported by HP is
NSDIR.NET.SYS. This file is part of a KSAM pair. A key
file is created at the same time as this data file. The key
file will automatically be named using the first six letters of
the network directory file name, appended with the character
K. For example, NSDIRK.NET.SYS is the name of
the key file associated with the data file
NSDIR.NET.SYS. If the name of the data file is less
than six letters long, then the entire file name would be
appended with a K.
Write access password
The password is an optional feature. If a password has been
assigned, you must enter it in the password field to update the
configuration file or the directory file. It is still possible
to open an existing file without using an assigned password,
but the file will be in read only mode and NMMGR will not
accept changes.
If a password has not been assigned, you should ignore the
password field.
If you want to assign a password for the system you are
configuring, see Using the Node Management Services (NMS)
Utilities.
Ensure that the information in the fields on this screen is
correct. If not, or if the information has not been entered, specify
the correct information and press the [Save Data] key. (See
Configuring Systems for Terminals, Printers, and Other Serial
Devices for information about configuring the information on this
screen.)

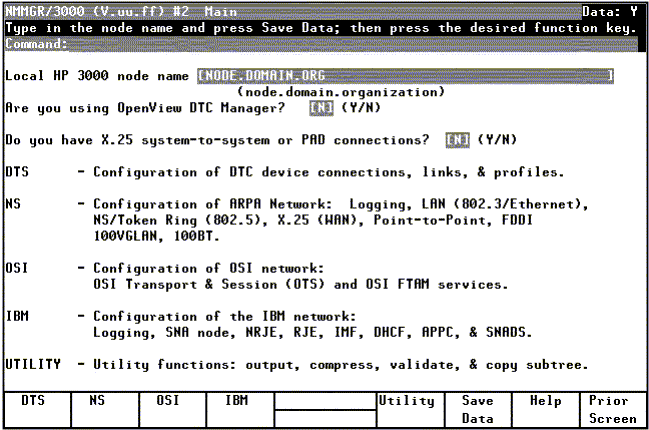

When you are satisfied with the information as configured, press
the [NS] key to select the NS configuration branch.
Fields
Local node name
The local node name is the name by which the HP e3000 computer is
known in the network. The format of a node name is
nodename.domain.organization where the total number of
characters is 50 or fewer, and each field contains 16 or fewer characters
(alphanumeric, underscore, or hyphens). The first character of each field
must be alphabetic.
The nodename portion of each node name must be unique within the
node's network. The nodename.domain portion of each node name
must be unique within the internetwork. HP recommends that all nodes on
the network be assigned the same domain and organization.
Assign meaningful node names. For example, MKTG.BND.HP and
LAB.BND.HP are meaningful names for two nodes on the same
network within Hewlett-Packard. One node (MKTG.BND.HP) is used
by the marketing department. The other node (LAB.BND.HP) is used
by the lab. The domain field is the same because the nodes
belong to the same network. The organization field is the same because
the nodes belong to the same internetwork.
Are you using OpenView DTC Manager?
If you answer yes to this question, NMMGR assumes you are using a PC
to manage your system and takes you to the corresponding set of screens
when you configure DTS. If you answer no, NMMGR assumes you are using
host-based network management and takes you to a different set of DTS
screens. You should already have answered this question when you
configured DTS.
Do you have X.25 system- to-system or PAD connections?
If you answer yes to this question, NMMGR assumes you are configuring
X.25 connections and takes you to the set of screens required to
configure DTC X.25 Network Access Cards when you configure DTS. If you
answer no, NMMGR assumes you have no need to configure X.25 connections
and takes you to a different set of DTS screens. You should already have
answered this question when you configured DTS.
If you are using domain names for network access, replace the node
name in the field at the bottom of the screen with this system's
domain name and press the [Save Data] key. If not using domain
names, leave the node name as is.
Press the [Guided Config] key to proceed with guided
configuration of LAN.

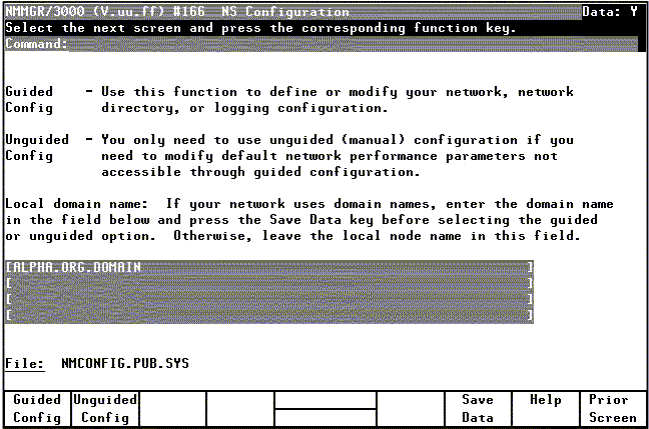

Guided/Unguided Configuration
Hewlett-Packard recommends that you press the [Guided Config] key to
select the guided configuration branch whenever you need to initially configure
a network interface. Guided configuration supplies many default values for your
configuration and requires that you visit a minimal number of screens. This
manual provides information on every screen available to you through unguided
NS configuration.
The [Unguided Config] key is used to modify configuration values that
are not available in the guided screens. To use the unguided configuration
screens, refer to the NS 3000/iX NMMGR Screens Reference Manual.
Fields
Local Domain Name
The name of this system in the ARPANET standard format. This name can
be used by other nodes on the network to access this host.
The domain name is composed of labels, with each label separated by a
period. Each label must start with a letter or digit, and have as
interior characters only letters, digits, hyphens (-), or underbars (_).
A domain name may have any number of labels, but its total length,
including periods, is limited to 255 characters.
label[.label][...]
Domain names are not case sensitive.
Use of domain names is optional. If you are not using domain names for
network access, leave the local node name in this field.

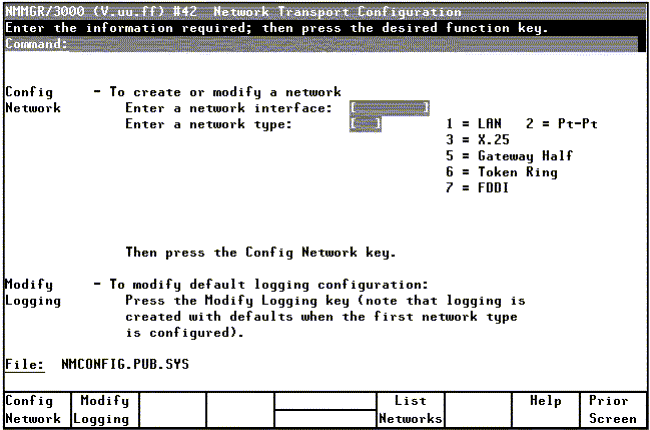

Next to the words Enter a network interface:, enter a
name for the selected network interface (for example, LANNI).
Next to the words Enter a network type:, enter the
selected network type number indicated on the above screen. (For
example, enter a 1 to indicate that the NI is a LAN
NI.)
Press the [Config Network] key. (There may be a short pause
before the next screen appears.)
Proceed to the chapter of the network interface selected above for
screen information. Refer to Chapter 6
"Configuring a LAN Node" for information on LAN, Token Ring,
FDDI, 100VG-AnyLAN, and 100Base-T; and other chapters for information
on Point-to-Point, X.25, and Gateway Half respectively.
Fields
Enter a network interface
The network name (NI name) is used to easily identify one of the types
of network interfaces: LAN, Token Ring, FDDI, NS Point-to-Point, X.25 or
Gateway Half. The name can be up to eight alphanumeric characters,
starting with a letter. The maximum number of NIs that can be configured
on a node is 48. One of the 48 allowable NIs is reserved for loopback.
(Loopback is configured for you automatically.)
If a node interfaces to more than one network, give each NI on that node
a unique name. Although all nodes on the same network do not have to have
the same NI name, it will be easier to remember if you make the NI name
the same for all nodes on the same network (for instance,
LANNET). You will use the NI name with the NETCONTROL
command to start the transport and network link.
Enter a network type
Number that indicates the type of network interface you are
configuring. You must enter a network type if you are configuring a new
network interface. Refer to the following for what number to enter:
Enter 1 for a LAN NI (100Base-T, ThinLAN or 100VG-AnyLAN)
