X.25 Network Interface Links

MPE documents

Complete PDF
Table of Contents
Glossary
Index

The X.25 Network Interface Links screen (#151) in Figure 7-11 "X.25 Network Interface Links Screen" is displayed when you press the [Go To LINK] function key at the X.25 Network Interface Configuration screen (Figure 7-3 "X.25 Network Interface Configuration Screen"). It is also displayed when you type the path name:

@NETXPORT.NI.NIname.LINK

in the command window of any screen and press the [Enter] key, where NIname is a configured X.25 NI.

Figure 7-11 X.25 Network Interface Links Screen

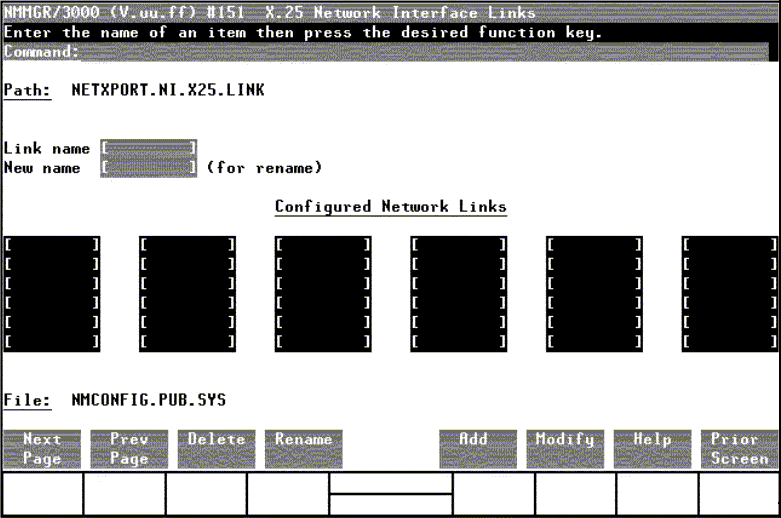

[X.25 Network Interface Links Screen]

Use the fields and the function keys of this select screen to perform the desired action.

  • To define a new link configuration, specify the link name; then press the [Add] function key. The path for the added link name is put in the configuration file, and the data screen on the path is displayed. You can associate 12 links with a single X.25 NI.

  • To modify an existing link configuration, specify the link name; then press the [Modify] function key. The next screen for the specified link is displayed.

  • To change the link name of an existing link configuration, specify the link name and a new name; then press the [Rename] function key. The previously configured name is replaced, and the screen displays the new name in a display field under the label Configured Network Links.

  • To delete an existing link configuration, specify the link name; then press the [Delete] function key. Press the [Delete] function key again to confirm the deletion. The previously configured name is deleted and is no longer displayed in a display field under the label Configured Network Links.

Fields

Link name

Make sure this is the same link name configured at the X.25 Link Configuration screen (path name LINK). This screen associates the link data with the X.25 network interface data. The link name can contain as many as eight alphanumeric characters, and the first character must be alphabetic.

The link name is used by the network transport when establishing connections. You can associate up to twelve (12) links with a single X.25 NI. All links associated with an NI have equal value (no primary or secondary weightings are assigned).

New name

(Required when renaming an existing X.25 link.) Enter a link name. This new link name is used in place of the current link name for an existing link configuration. The name can contain as many as eight alphanumeric characters, and the first character must be alphabetic.
