X.25 Network Interface Configuration

MPE documents

Complete PDF
Table of Contents
Glossary
Index

The X.25 Network Interface Configuration screen (#102) in Figure 7-3 "X.25 Network Interface Configuration Screen" is displayed when you add an X.25 interface to the Network Interface Configuration screen (Figure 7-2 "Network Interface Configuration Screen") and press the [Add] or [Modify] function key. It is also displayed when you type the path name:

@NETXPORT.NI.NIname

in the Command window of any screen and press the [Enter] key, where NIname is a configured X.25 NI.

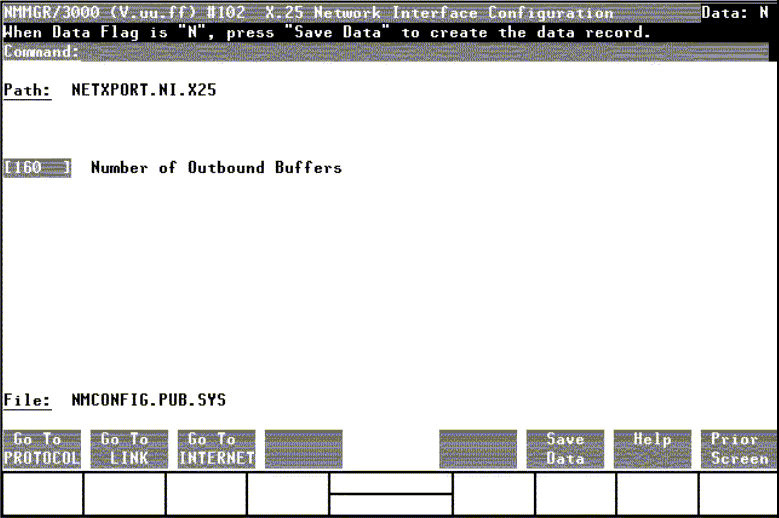

Figure 7-3 X.25 Network Interface Configuration Screen

[X.25 Network Interface Configuration Screen]

Use the fields and the function keys of the select screen to perform the desired action. Press the [Save Data] function key to transfer the data displayed on the screen to the configuration file you are creating or updating. Verify that the data record has been created by checking that the Data flag is set to Y.

Fields

Number of outbound buffers

(Required.) Enter the number of buffers that are allocated to the X.25 network interface.

If direct level 3 access is being used, or large (over 5000 bytes) blocks of data are being sent, or multiple no-wait sends are being issued, then more buffers may be needed. Logging location code 174, CLAS0003, tells you that the X.25 subsystem does not have enough buffers, in which case you can increase the number of outbound buffers. (If the outbound buffers are exhausted, the transport will continue to function, but at a significantly reduced efficiency.)

Default value: 160

Range: 32-1060
