The X.25 Link Configuration screen (#106) shown in
Figure 7-12 "X.25 Link Configuration
Screen" is displayed when you select an NI link name and press the
[Add] or [Modify] function key at the X.25 Network Interface Link
screen (Figure 7-11 "X.25 Network Interface
Links Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.LINK.linkname
in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI, and linkname is a configure X.25
link.

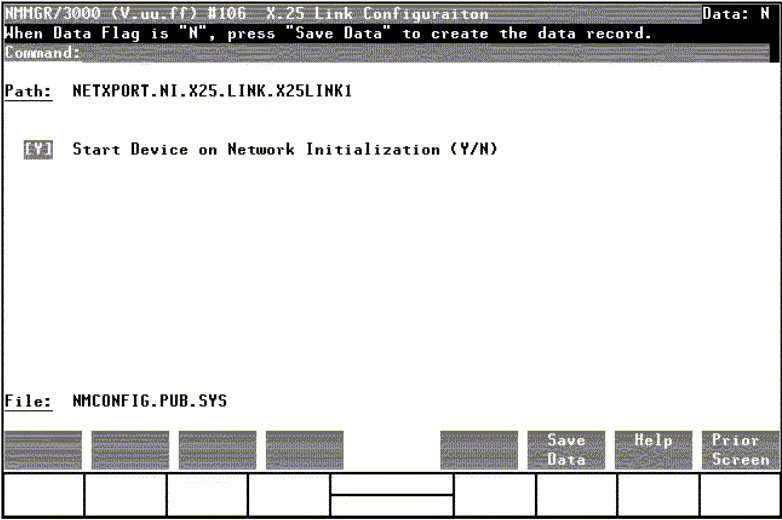

Figure 7-12 X.25 Link Configuration Screen
Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating. Verify that the
data record has been created by checking that the Data flag is set to
Y.
Fields
- Start device on network initialization (Y/N)
Answer Y (Yes) if you want the device connected over this
link to be started when the network is first initialized. Answer
N (No) if you do NOT want the device started when the network is
first initialized.
Default value: Y
Range: Y or N
|
