Link configuration screens are used to define a link from
the HP e3000 to a network. The first screen, Link Selection, allows
you to define a link of type LAN, LAP-B (point-to-point), X.25,
TOKEN, FDDI, 100VG-AnyLAN, or 100Base-T. A screen is then displayed
that allows you to configure operating parameters for the link type
that you select.
The links defined and configured in these screens must match
the links defined later when configuring the network interface (path
name NETXPORT.NI.NIname.LINK) in the following chapters.

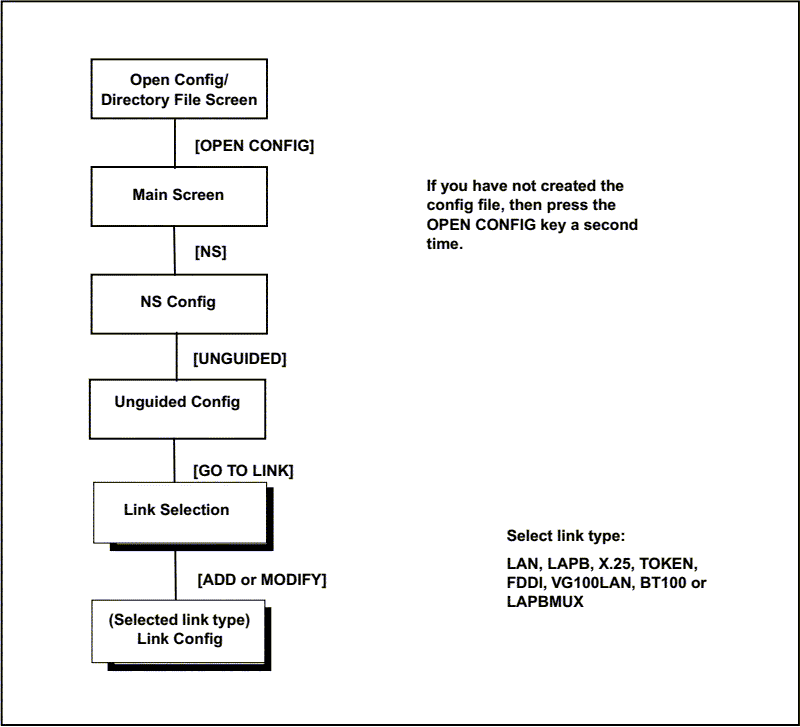

Figure 3-1 "Link Selection Screen Flow" shows
the screen flow of the link selection screens. Screens unique to the link
selection are indicated by bold boxed screens. [FUNCTION] denotes the
function key used at a screen to invoke the next screen on the screen flow.
Figure 3-1 Link Selection Screen Flow
|
Complete PDF![[Link Selection Screen Flow]](img/gfx7.gif)
