X.25 Link Configuration

MPE documents

Complete PDF
Table of Contents
Glossary
Index

The X.25 Link Configuration Screen (#84) in Figure 3-6 "X.25 Link Configuration Screen" is displayed when you add a link of type X.25 at the Link Selection Screen (Figure 3-2 "Link Selection Screen") and press the [Add] or [Modify] function key. This screen is also displayed when you type the path name:

@LINK.linkname

in the command window of any screen and press the [Enter] key, where linkname is a configured X.25 link.

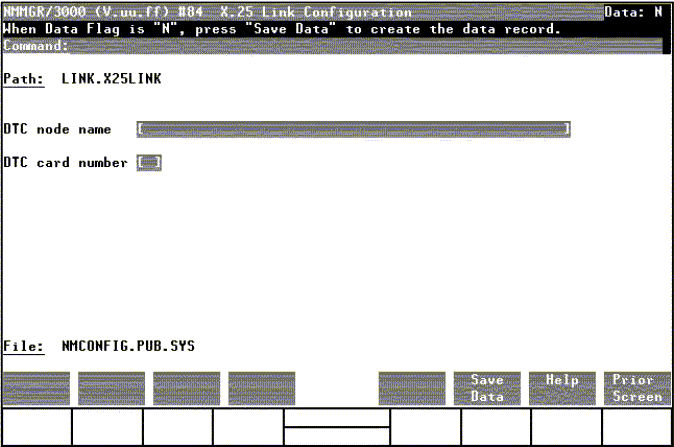

Figure 3-6 X.25 Link Configuration Screen

[X.25 Link Configuration Screen]

Press the [Save Data] function key to transfer the data displayed on the screen to the configuration file you are creating or updating. Verify that the data record has been created by checking that the Data flag is set to Y.

Fields

DTC node name

This is the name of the DTC node where the DTC/X.25 Network Access card is installed. The format for the name is name.domain.organization. The entire DTC name can have a maximum number of 50 characters, and each field can have a maximum of 16 characters (alphanumeric, underscore or hyphens) and is separated from the other fields by periods. The first character of each field must be alphabetic.

Each DTC must have a unique name within the local network, and the name.domain portion of the DTC name must be unique for each DTC within the internetwork. HP recommends that all nodes on the same network be assigned the same domain and organization.

The DTC node name must match the name configured at the DTC Node Name screen under DTS configuration. Refer to Configuring Systems for Terminals, Printers, and Other Serial Devices for more information about configuring the DTC.

DTC card number

(Required.) Enter the DTC card number. The DTC card number is the number of the slot in the DTC where the DTC/X.25 Network Access card for this node resides. Slot 0 of the DTC is reserved and cannot be used by a DTC/X.25 Network Access card. A DTC can be configured with a maximum of 3 DTC/X.25 Network Access cards.

Make sure that the DTC is already configured before you configure an X.25 link on the HP e3000. Refer to Configuring Systems for Terminals, Printers, and Other Serial Devices and Using the OpenView DTC Manager for complete information on configuring the DTC.

Default: None.

Range: 1-5
