The NMS utility NMDUMP can be used to format tracing and logging records for the SNA links. Described below are the tracing and logging formats produced for the SNA links by NMDUMP. Note that NMDUMP is described in more detail in Using the Node Management Services Utilities. If you are not familiar with NMDUMP, you should read that manual before running NMDUMP.

As stated earlier in this chapter, link trace logging information is written to the system log file, which your Hewlett-Packard support contact formats by using the DUI. So, no description of that file's format is given below.

SNA Transport Output Formats

For SNA Transport, NMDUMP formats tracing records and logging records. When NMDUMP displays the list of subsystems and IDs, and prompts you for the IDs you want to select, specify the ID for SNA Transport: 1. Then, proceed normally with NMDUMP. The format for each type of record is described below.

Tracing Records

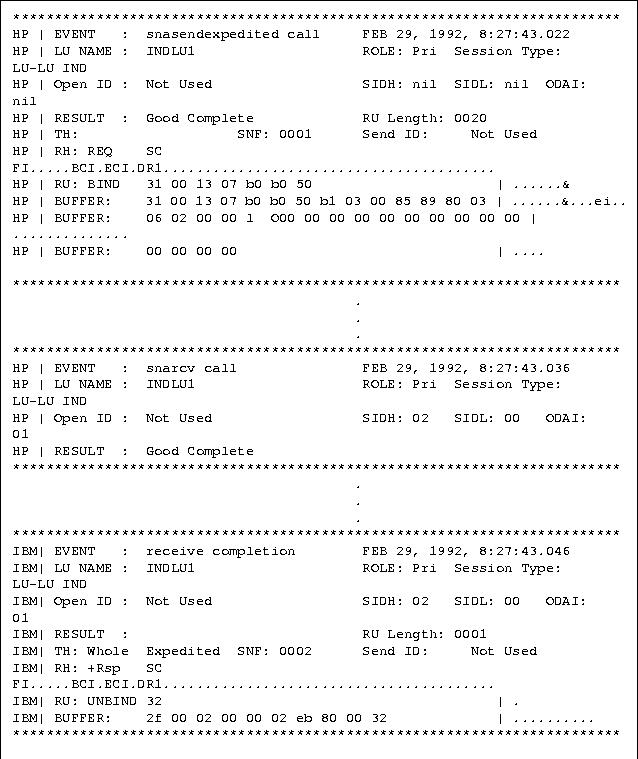

Figure 5-1 "SNA Transport Trace Format Example" shows a partial format of a tracing record for SNA Transport.

NOTE: All numeric values in the SNA Transport trace are given in hexadecimal.

Figure 5-1 SNA Transport Trace Format Example

[SNA Transport Trace Format Example]

Logging Records

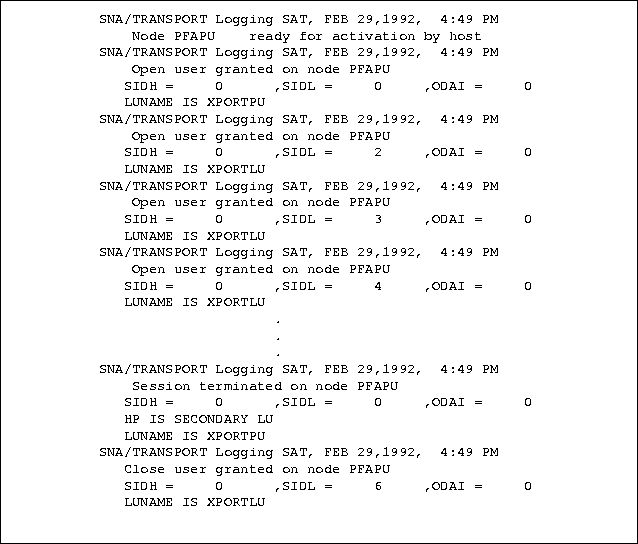

Figure 5-2 "SNA Transport Logging Format Example" is a partial format for SNA Transport logging information.

Figure 5-2 SNA Transport Logging Format Example

[SNA Transport Logging Format Example]

SDLC Link Output Formats

For the SDLC link, NMDUMP formats tracing records and logging records. When NMDUMP displays the list of subsystems and IDs, and prompts you for the IDs you want to select, specify the ID for SDLC Link: 27. Then, proceed normally with NMDUMP. The format of the tracing records is shown below.

Tracing Records

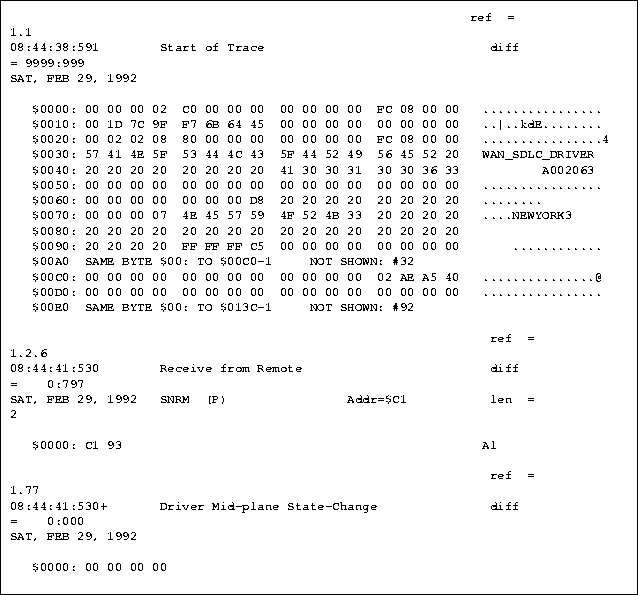

Figure 5-3 "SDLC Link Tracing Record Format Example" is a partial format of a tracing record for the SDLC link.

Figure 5-3 SDLC Link Tracing Record Format Example

[SDLC Link Tracing Record Format Example]

Logging Records

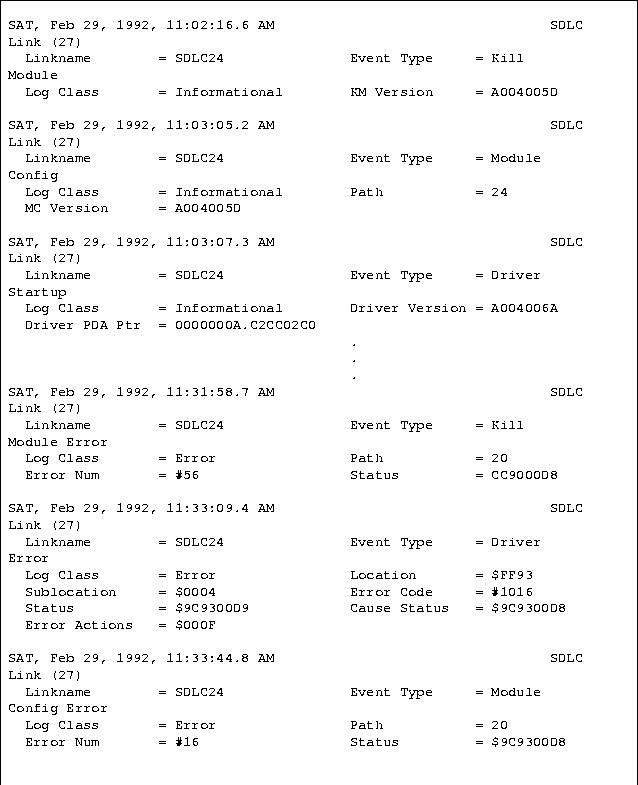

Figure 5-4 "SDLC Link Logging Format Example" is a partial format for SDLC link logging information.

Figure 5-4 SDLC Link Logging Format Example

[SDLC Link Logging Format Example]

X.25 Link Output Formats

For the X.25 link, NMDUMP formats tracing records. (Logging information is contained within the SNA Transport logging information.) When NMDUMP displays the list of subsystems and IDs, and prompts you for the IDs you want to select, specify the ID for X.25 Link: 38. Then, proceed normally with NMDUMP. The format of the tracing records is shown below.

Tracing Records

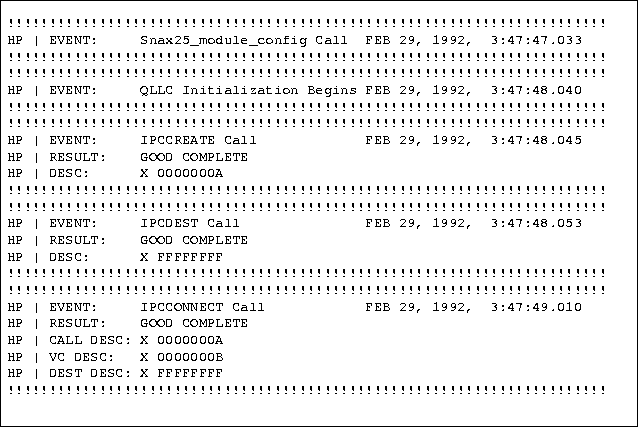

Figure 5-5 "X.25 Link Tracing Record Format Example" is a partial format of a tracing record for the X.25 link.

Figure 5-5 X.25 Link Tracing Record Format Example

[X.25 Link Tracing Record Format Example]

Logging Records

As stated earlier in this chapter, X.25 link logging information is contained within the SNA Transport logging information.

Token Ring Link Output Formats

For the Token Ring link, NMDUMP formats tracing records and logging records. When NMDUMP displays the list of subsystems and IDs, and prompts you for the IDs you want to select, specify the ID for Token Ring Link: 61. Then, proceed normally with NMDUMP. The format of the tracing records is shown below.

Tracing Records

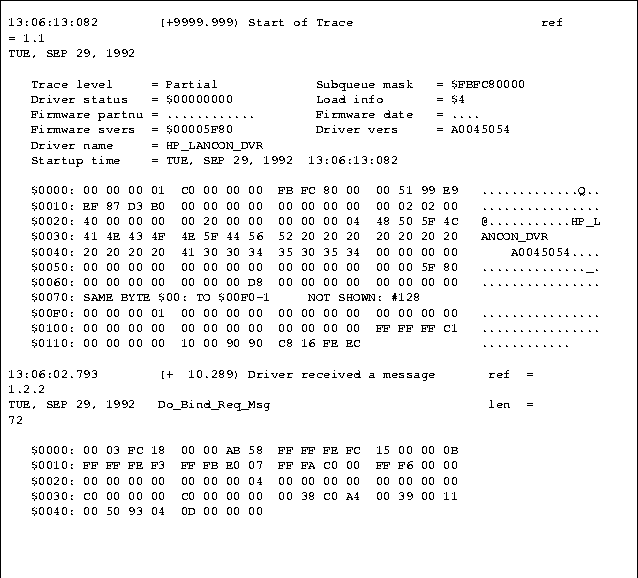

Figure 5-6 "TR Link Tracing Record Format Example" is a partial format of a tracing record for the Token Ring link.

Figure 5-6 TR Link Tracing Record Format Example

[TR Link Tracing Record Format Example]

Logging Records

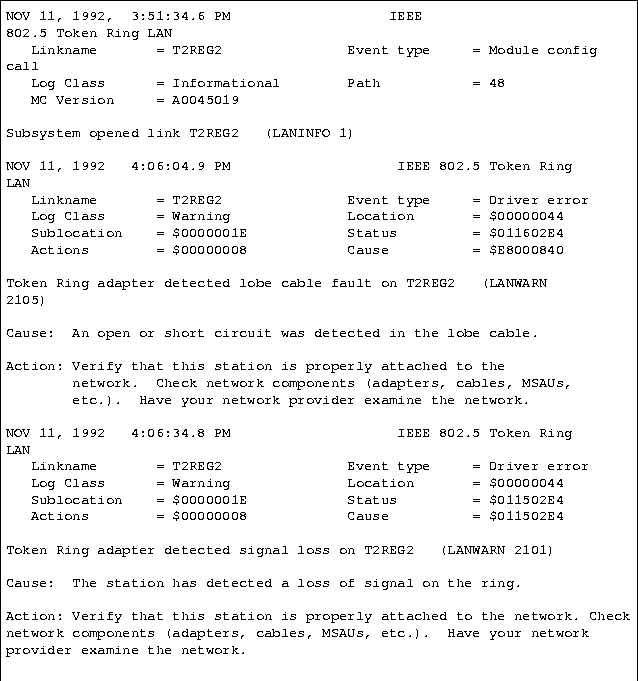

Figure 5-7 "Token Ring Link Logging Format Example" is a partial format for Token Ring link logging information

Figure 5-7 Token Ring Link Logging Format Example

[Token Ring Link Logging Format Example]
