The ALLBASE/SQL FORTRAN Preprocessor

• Syntax checking of SQL commands and host variable declarations.

• Creation of compilable files: one modified source code file and one include file.

• Creation of an installable module.

• Storage of a module in the system catalog.

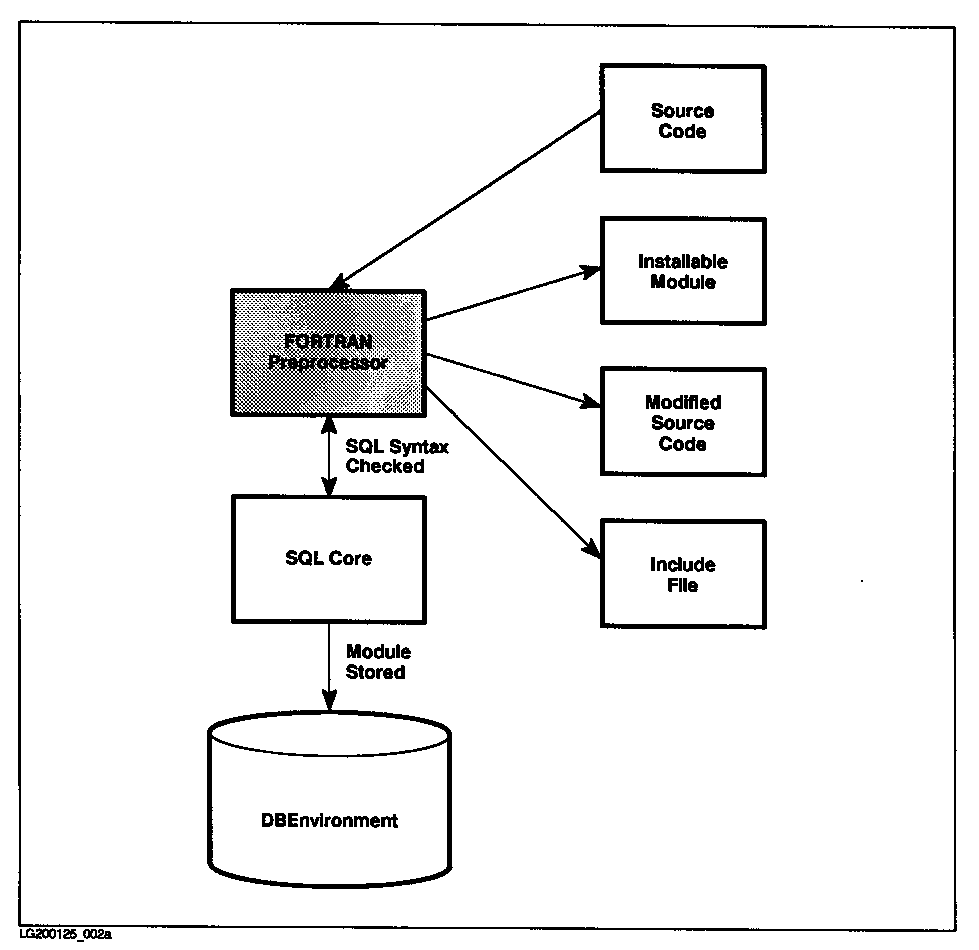

Figure 1-2 Preprocess-Time Events

Effect of Preprocessing on Source Code

The FORTRAN preprocessor scans the source code for SQL commands. If the syntax of an SQL command is valid, the preprocessor converts the command to compilable FORTRAN statements that call ALLBASE/SQL external procedures at runtime. During preprocessing, for example, the SQL command:

         EXEC SQL SELECT  PartNumber, PartName, SalesPrice
        1           INTO :PartNumber,
        2                :PartName,
        3                :SalesPrice
        4           FROM  Purchdb.Parts
        5          WHERE  PartNumber = :PartNumber

is converted into the following modified source code statements:

   C**** Start SQL Preprocessor ****
   C           EXEC SQL SELECT  PartNumber, PartName, SalesPrice
   C    1                 INTO :PartNumber,
   C    2                      :PartName,
   C    3                      :SalesPrice :SalesPriceInd
   C    4                 FROM  PurchDB.Parts
   C    5                WHERE  PartNumber = :PartNumber
   C
   C**** Start Inserted Statements ****
         WRITE(SQLTMP,'(A16)')PartNumber
         CALL SQLXFE(SQLCAID,SQLOWN,SQLMDN,1,SQLTMP,16,56,1)
         IF (SQLCODE .EQ. 0) THEN
         READ(SQLTMP,'(A16,A30,A8,A2)')PartNumber,PartName,SalesPrice,Sales
        1PriceInd
         ELSE
         END IF
   C**** End SQL Preprocessor   ****

The embedded SELECT command has been converted into a FORTRAN comment, and FORTRAN statements that enable ALLBASE/SQL to execute the SELECT command at runtime have been inserted. The names that appear in the inserted FORTRAN code (italicized in the above example) identify variables used by the ALLBASE/SQL external procedures; in this example, the names identify variables used by the SQLXFE external procedure. Some of these variables are derived from host variables. As shown in the embedded SELECT command above, you precede a host variable with a colon when you use it in SQL commands:

         :PartNumber

Type declarations used by preprocessor generated code are defined and initialized in the include file the preprocessor creates. The preprocessor inserts INCLUDE statements that reference this file in each program unit of the modified source code after the host variable declarations. Even if you do not declare host variables you must still include the EXEC SQL BEGIN DECLARE SECTION and EXEC SQL END DECLARE SECTION commands in order for the preprocessor to create and insert this include file:

          INCLUDE 'SQLVAR'

	CAUTION: Never modify the statements inserted by the preprocessor in the modified source code file, or the include file the preprocessor creates. Changes to preprocessor generated information could damage your DBEnvironment or your system.

Effect of Preprocessing on DBEnvironments

When you invoke the preprocessor, you name an ALLBASE/SQL DBEnvironment. The preprocessor starts a DBE session for that DBEnvironment when preprocessing begins and terminates that session when preprocessing ends.

When the preprocessor encounters a syntactically correct SQL command, it creates a section and stores that section in the system catalog of the DBEnvironment being accessed. An ALLBASE/SQL section is a group of stored ALLBASE/SQL instructions for executing one SQL command.

All sections created during a preprocessing session constitute a module. The preprocessor derives the name of the module from the PROGRAM statement or subroutine name unless you supply a different name when you invoke the preprocessor:

   :RUN PSQLFOR.PUB.SYS;INFO = "DBEnvironmentName (MODULE(ModuleName))"

When the preprocessor terminates its DBEnvironment session, it issues a COMMIT WORK command if it encountered no errors. Created sections are stored in the system catalog and associated with the module name.
