Example Worksheets

The completed worksheets in this section are based on the configuration illustrated in Figure C-1 “Example Configuration”. Appendix B “Sample Configuration” shows the NMMGR screens used for the configuration in this figure.

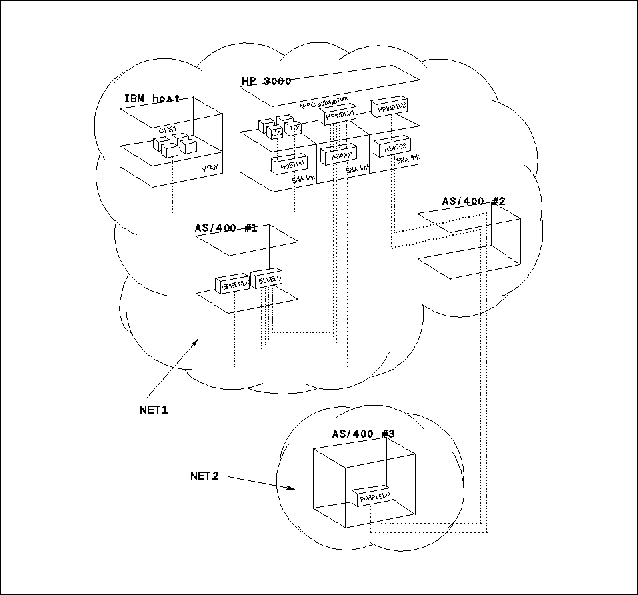

Figure C-1 Example Configuration

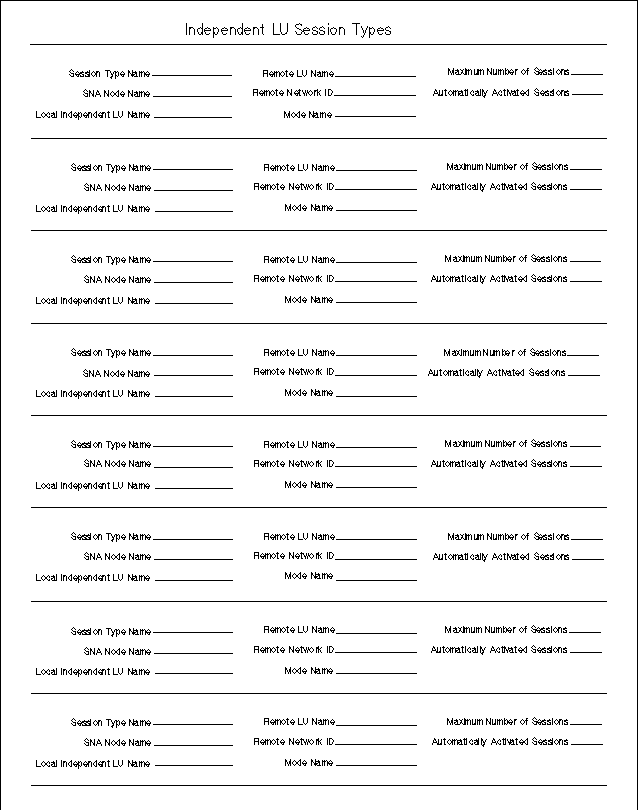

Figure C-2 “Independent LU Session Types Worksheet” is a Independent LU Session Types worksheet for the example configuration in Figure C-1 “Example Configuration”.

Figure C-2 Independent LU Session Types Worksheet

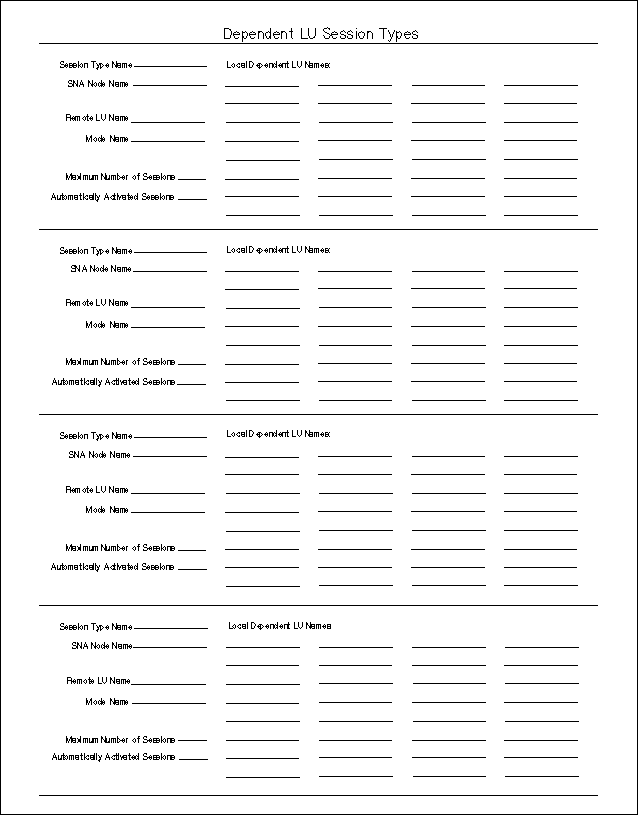

Figure C-3 “Dependent LU Session Types Worksheet” is a Dependent LU Session Types worksheet for the example configuration in Figure C-1 “Example Configuration”.

Figure C-3 Dependent LU Session Types Worksheet

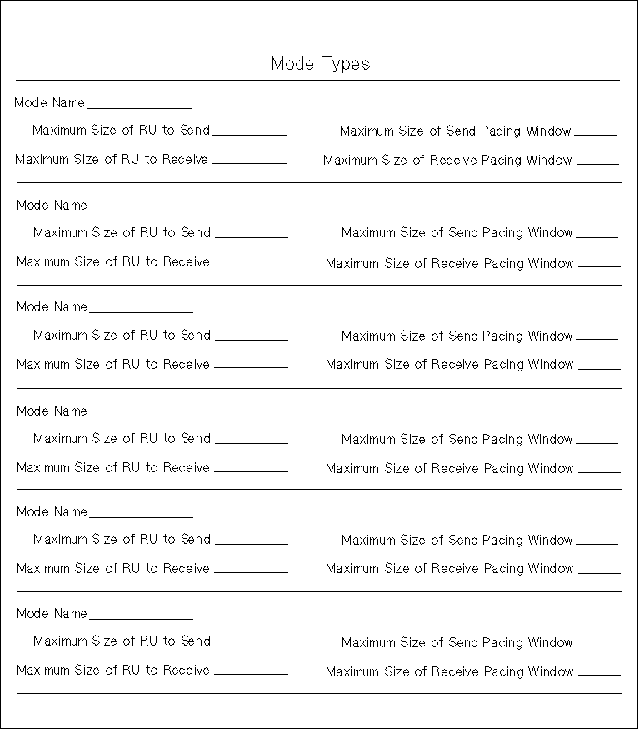

Figure C-4 “Mode Types Worksheet” is a Mode Types worksheet for the example configuration in Figure C-1 “Example Configuration”.

Figure C-4 Mode Types Worksheet
