The key information in each log message is the log class and the location code number, which uniquely identify the logging message for that entity, and the Parm. You use these numbers to find the explanation and action in the tables in this section and other sections of this manual. The actions given should be performed. Only if there is no clear error reported or the recommended action fails should system level troubleshooting be performed. When the system level tests are done, it is advisable to use the configuration files that have most of the logging classes configured for the console. This saves having to format the log files for the log messages received during the test.

Internal Errors


Each subsystem has a log class defined for internal errors, as listed in Table 21-1 "Logging Subsystems and Class Names". If an internal error ever occurs, a log message is sent to the console. Record the log message exactly and consult this manual for the recommended action, which in most cases is to contact HP; refer to Appendix A "Submitting a CR" of this manual.

Some error messages have an extra parameter whose explanation reads "Parm = BFM result code." The error codes that are produced by the buffer manager are listed in Table C-1 "Native Mode NS 3000/iX Buffer Error Codes" and Table C-2 "Compatibility Mode Buffer Error Codes". Those tables contain all of the error codes returned by the NS 3000/iX native mode and compatibility mode buffer manager interfaces.

Informative and Non-Critical Errors


The Network Transport logs all normal or informative events to CLAS0005. Because of the high number generated, messages for this class are not normally recorded, even to the disk log file. However, if any of the normal events encounters an error condition, an additional log message is generated that is recorded with the log file. This is CLAS0003, non-critical error.

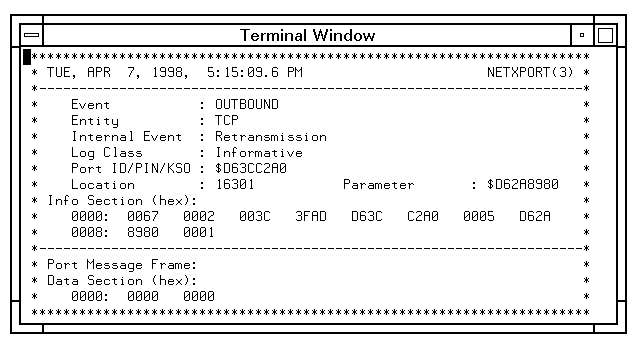

An example of log class 3, non-critical error, is shown in Figure 21-2 "Non-Critical Transport Error ". This example shows a non-critical, or Class 3, log message for TCP. The first part describes the log message, including the event, the entity, the internal event and the log class. In Figure 21-2 "Non-Critical Transport Error ", the internal event is retransmission which indicates that there was an attempt to retransmit a TCP packet. The parameter number indicates the sequence number of the packet that was retransmitted. Also check the explanation and action listed under the Location Code number which is 61 in the example. The TCP PM section describes the protocol module Location Code.

Figure 21-2 Non-Critical Transport Error

[Non-Critical Transport Error]

Statistics Logging Example

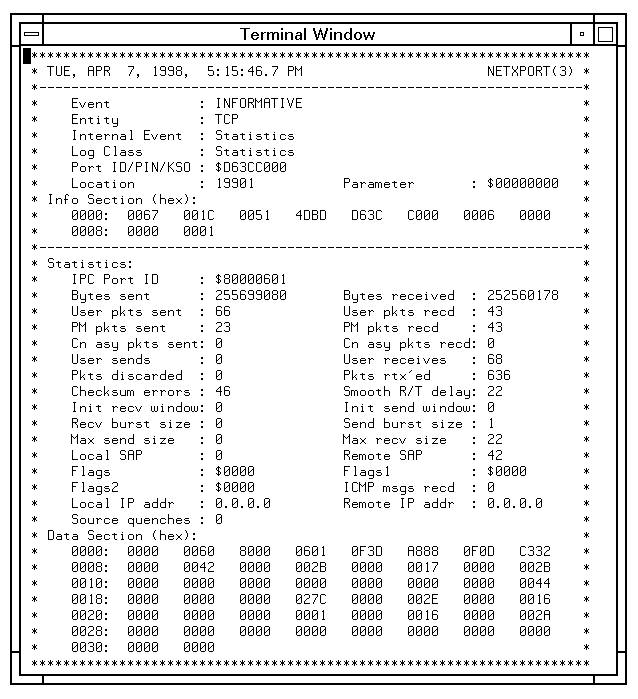

An example of log class 6, statistics, is shown in Figure 21-3 "Logging Statistics Example". Figure 21-3 "Logging Statistics Example" shows a statistics log message for TCP. This example shows an informative, or Class 3, log message for TCP. The first part describes the log message, including the event, the entity, the internal event and the log class. The internal event is Statistics, which indicates that the logging message contains statistical information. For more information check the log file of the remote node.

Figure 21-3 Logging Statistics Example

[Logging Statistics Example]

The key information in each log message is the log class and the location code number, which uniquely identify the logging message for that entity, and the parameter. You use these numbers to find the explanation and action in this section and other sections of this manual. The "Statistics:" section displays the following fields:
  • IPC Port ID. Gives the address of the NetIPC port associated with the TCP (or PXP) protocol module for this connection. This is the number to use in matching a TCP/PXP Statistic log message to a NetIPC log message. Look for the identical number called the Socket Port ID in the NetIPC log message.

  • Bytes sent/received. Shows the total number of bytes transmitted or received by the PM.

  • User pkts sent/recd. Shows the number of packets sent or received. May be more than the number of User Sends/Receives because TCP may need to fragment the message into link-size packets.

  • PM pkts sent/recd. Shows the number of non-data carrying packets sent or received, such as window updates and acknowledgments.

  • Cn ass pkts sent/recd. Shows the number of connection assurance packets sent or received. A large number of these indicate that the connection is idle for long periods of time.

  • User sends/receives. Shows the number of messages sent or received.

  • Pkts discarded/rtx'ed. The number of packets discarded or retransmitted. If there is a problem with the connection, it may be reflected here by an extremely high number for one of these fields. Check for Class 3 logging messages; refer to the specific location code for more information.

  • Checksum errors. Shows the number of checksum errors for this connection. Check for Class 3 logging messages; refer to the specific location code for more information.

  • Smooth R/T delay. Shows the observed delay (in milliseconds) required to receive acknowledgments from the remote node. This number is used by TCP to dynamically calculate the retransmission timer.

  • Init recv/send window. Shows the size of the window used for flow control. The size varies for each service.

  • Recv/Send burst size. Shows the burst size for the receiver and the sender. This value is specified with the IPCCONNECT used to initiate the connection.

  • Max send/recv size. Shows the maximum message size for the receiver and the sender. This value is specified with the IPCCONNECT used to initiate the connection.

  • Local/Remote SAP. Shows the TCP Service Access Point address for the local and the remote node. If you do not know which application to check on the remote node, use these numbers (reversed) to find the matching PM in the log file for the remote node. Specify a time range when formatting the remote node log file to narrow the search.

  • Flags/Flags1/Flags2. Internal state flags.

  • ICMP msgs recd. Total number of ICMP messages that this connection has received from the IP module.

  • Local/Remote IP addr. Shows the IP address for the local and remote node.

  • Source quenches. Shows the number of times this connection has been quenched. A connection is quenched when it receives a source quench ICMP message from IP.
