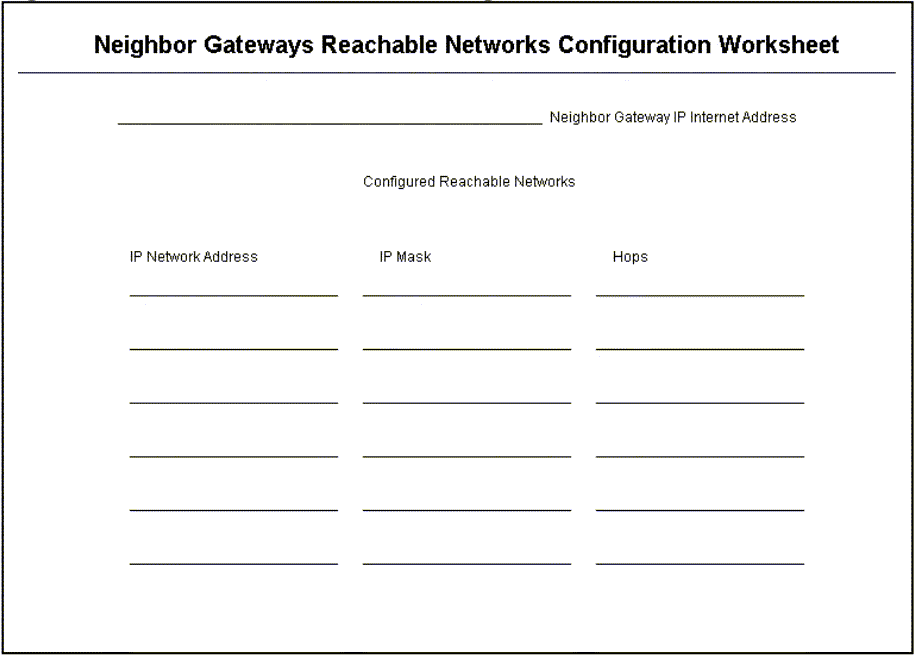

The following is a description of the information that needs to be gathered for
the worksheets that follow in this chapter. This information is used for
configuring nodes.
Neighbor Gateway IP Internet Address
This is the IP address of the gateway specified on the Neighbor
Gateways screen. The IP address is in the same format as the LAN
Configuration screen. An example of an address is:
C 192.007.007 001
IP network address
The IP addresses of all the remote networks that can be reached
through the gateway whose IP address is configured in the previous field.
If the gateway node is to serve as a default gateway, enter an at sign
(@) in one of these fields.
IP mask
The IP mask allows you to specify a subnet mask for each reachable
network. This is in the same format as an IP address. This mask is
optional.
Hops
This is the number of hops (full gateways) that a packet travels to
reach a remote network from a local network. Two partner gateway halves
count as one hop.
