The Network Directory Select Node Name screen (#9) shown in
Figure 13-4 "Network Directory Select Node Name
Screen" is displayed when you press the function key for
[Update Dir] at the Network Directory Main screen
(Figure 13-3 "Network Directory Main
Screen"). The function of this screen is to display node names
that are currently configured in the directory, and to allow you
to delete, rename, add, or modify information about a node.

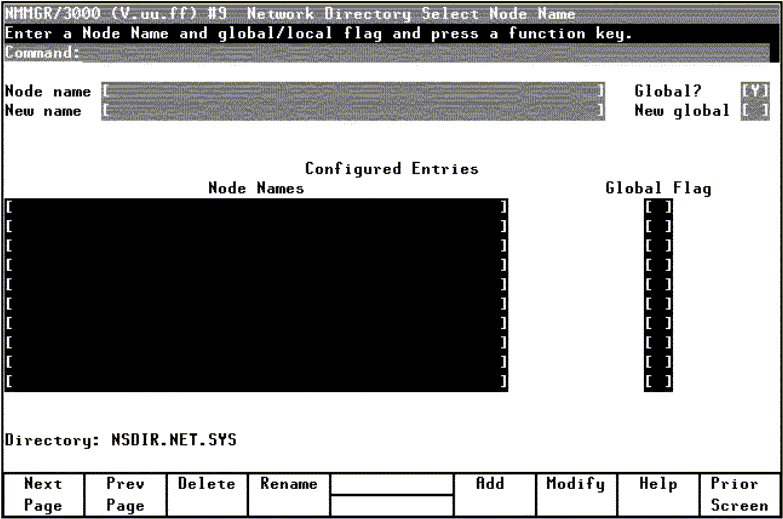

Figure 13-4 Network Directory Select Node Name Screen
Press the [Next Page] and [Prev Page] function keys to see
additional nodes that have already been configured.
To add a node to the directory, specify the node name and the
global/local setting; then press the [Add] function key. You
are taken to the Network Directory Data screen. You may add new
entries as long as room remains in the file. If the file fills, you
may use the Maintenance Mode command EXPANDDIR to expand the
file.
To modify path report data for a node in the directory, specify
the node name; then press the [Modify] function key. This
includes deleting part, but not all, of a node's path report
list.
To delete a node from the directory, specify the name of a node;
then press the [Delete] function key. Press the
[Delete] function key again to confirm the deletion.
To change the name of a node in the directory, specify the node
name and a new name; then press the [Rename] function key. The
previously configured node name is replaced and the screen displays
the new name in a display field under the label Configured
Entries.
Fields
- Node name
The name of the node for which you want network directory
information. The node name field must contain a fully qualified
node name when used to add, modify, delete, or rename a node. The
node name field is used with the [Prev Page] and
[Next Page] function keys to browse through a specified part of
the network directory. You can enter part of a node name in this field to
designate which node names you want displayed. For example, if you
enter the value NIK, and press the [Next Page] function
key, the list of nodes will begin with the first matching node name, for
example NIKOLAI.FINANCE.IND, and continue through the rest of
the alphabet until all node names between the letters NIK and
Z are listed.
- Global?
The global/local setting for node name. The acceptable values are
Y or N. When the [Prev Page] and
[Next Page] function keys are used, only node names whose
global/local setting matches the value in this field are displayed.
Entries can be configured as either global or local in the network
directory. Global entries (the default) can be merged into other
directories using the MERGEDIR command. Local entries are not
merged into other network directories. The local
entries are used for configuring localized network directory entries,
thus providing a mechanism to restrict directory data from being
propagated throughout the network.
A situation where this type of restriction could be useful
is when you want to change the configuration for users on a single
host, but not for everyone else. You can configure two network directory
entries: one local, used by host users, and one global, used by
everyone else when establishing connections to the host. For example,
suppose Node A sets up a new link to Node C, but Node A does not
want other nodes (already connected to A) to know about Node C until
the new link is tested. Users on Node A can configure a local entry,
which contains information about the new link not included in the
global entry configured for users on other nodes.
Other uses of local entries include restricting certain nodes
from communicating with the internet, or being able to direct which
way to access remote nodes depending on your configuration of local
entries. When both local and global entries exist for the same node, the
network transport uses the local entry.
Default value: Y
Range: Y or N
- New name
(Required only when renaming an existing node name.) New name
to be assigned to the node with the Rename function key.
- New global
The global/local flag setting for the node named in the new name
field. The acceptable values are Y or N. The only time
this field is used is when you rename a node or when you change the
global/local setting of a node. The new name field can be left blank if
you wish to change only the global/local setting.
- Configured Entries (node names & global flag)
Display-only fields that show node names and their global/local flag
settings that are already configured in the directory.
|
