The Network Directory Main screen (#8) shown in
Figure 13-3 "Network Directory Main Screen"
is displayed when you press the [Open Directry] or the
[Create Directry] function key at the Open Configuration/Directory File
screen (#1) as shown in Figure 2-2 "Open
Configuration/Directory Screen". This screen is also displayed if a network
directory has already been opened and you type NETDIR in the command
window of any screen and press the [Enter] key.

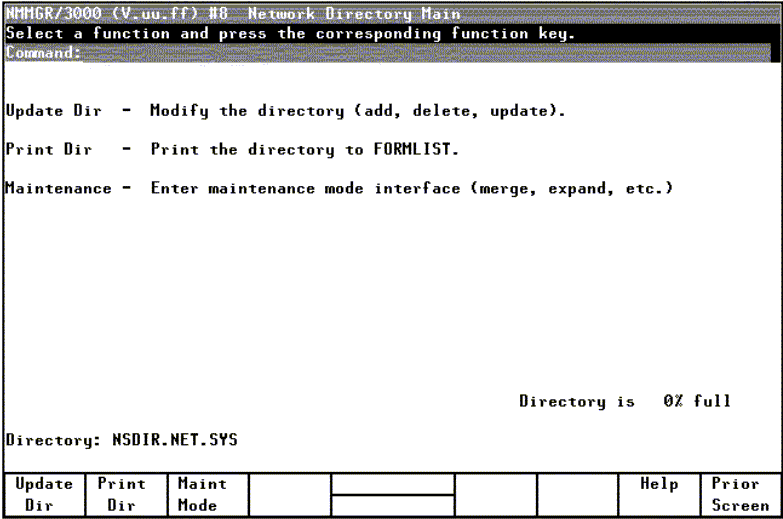

Figure 13-3 Network Directory Main Screen
This screen is the main select screen from which all directory
functions are accessed. The currently opened directory is displayed
at the bottom of all network directory screens. The percentage of
the network directory that is full is shown in the lower right corner
of the screen.
Press the [Update Dir] function key to modify the contents of the
directory by adding, deleting and updating node names and path reports.
Press the [Print Dir] function key to print out a copy of the directory
to formal designator FORMLIST, device class LP. You can use a
file equation for FORMLIST to redirect the output to another device
class or disk file. To set a file equation without leaving NMMGR, enter the
appropriate MPE command, preceded by a colon (:), in the command window
and press the [Enter] key.
Press the [Maint Mode] function key to enter the command interface to
perform directory merging or to expand the size of your directory. Refer to
Using the Node Management Services (NMS) Utilities for details
on maintenance mode.
Within the maintenance mode interface, command input is read from the formal
designator NMMGRCMD, which defaults to $STDINX. Type
EXIT and press the [Return] key to leave maintenance mode.
