The Protocol Configuration screen (#113) in
Figure 7-4 "Protocol Configuration Screen"
is displayed when you press the [Go To Protocol] function key at the
X.25 Network Interface Configuration screen
(Figure 7-3 "X.25 Network Interface
Configuration Screen"). This screen is also displayed when you type the
path name:
@NETXPORT.NI.NIname.PROTOCOL
in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

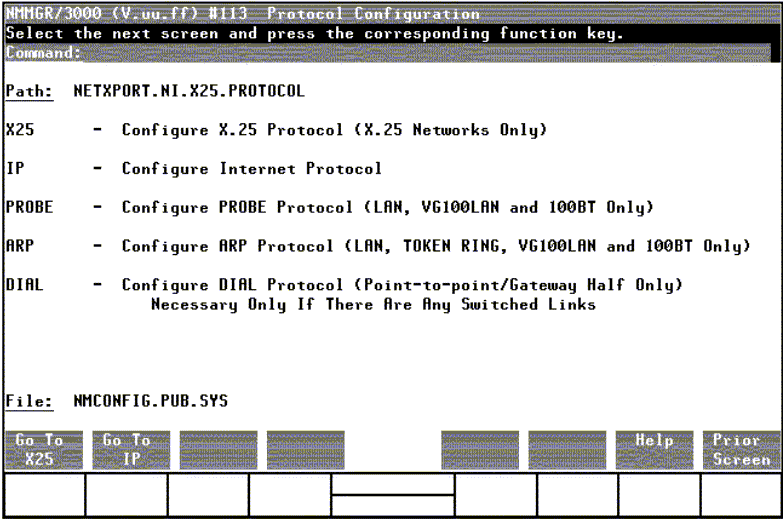

Figure 7-4 Protocol Configuration Screen
For the X.25 NI, you configure the X.25 and IP protocols. Choose the protocol
to configure and press the corresponding function key.
