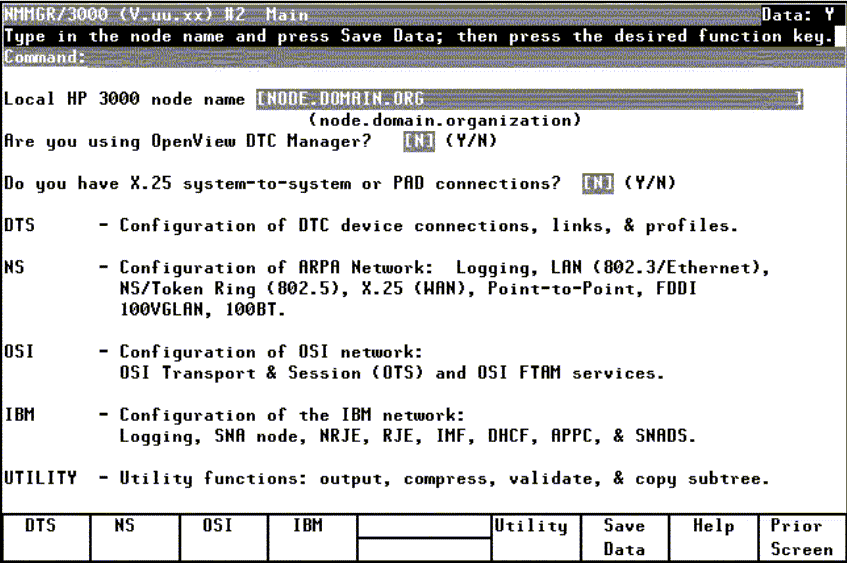

Once you have opened the configuration file, you are placed at the NMMGR "Main"
screen, as shown in Figure 3-1 "Main Screen".
Main Screen
From this screen shown in Figure 3-1
"Main Screen" you can select the category of network subsystems you want to
configure.
Figure 3-1 Main Screen
To access the NMMGR branch for configuring logging, press [f4]

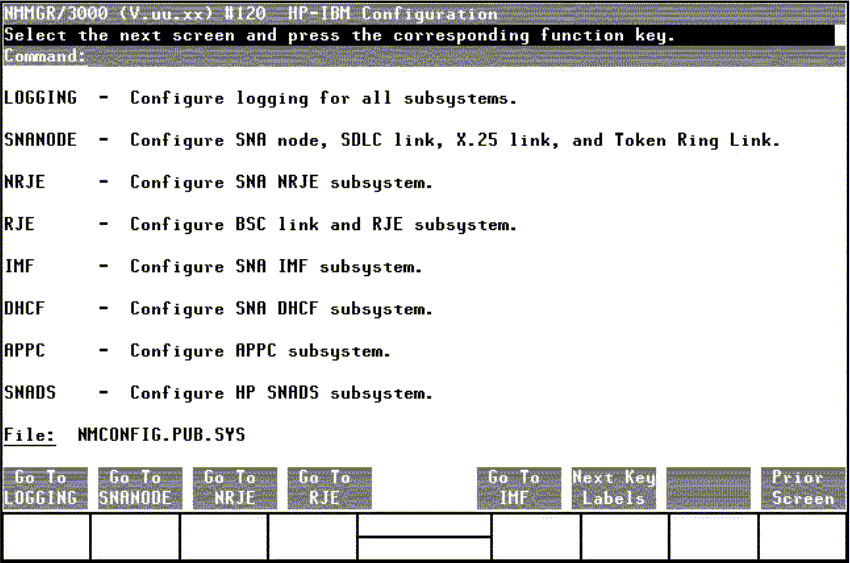

(IBM). This places you at Figure 3-2
"HP-IBM Configuration Screen"
HP-IBM Configuration Screen
From the screen shown in Figure 3-2 "HP-IBM
Configuration Screen" you can select the item you want to configure.
Figure 3-2 HP-IBM Configuration Screen
To select logging, press [f1] (Go To LOGGING).

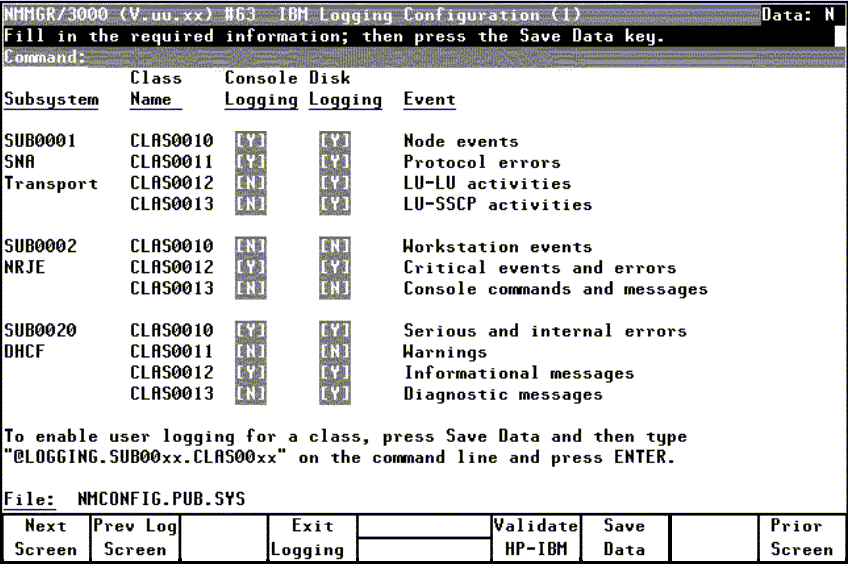

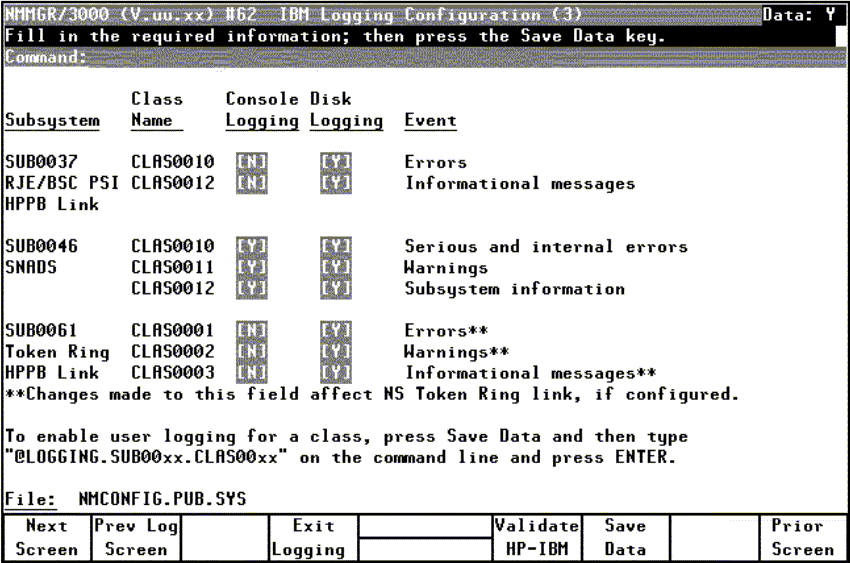

IBM Logging Configuration (1)
After you have selected logging configuration, NMMGR displays the screen shown
in Figure 3-3 "IBM Logging Configuration (1)
Screen" Here you specify logging information for these subsystems: SNA
Transport, NRJE, and DHCF.
If you want to specify logging information for an SNA subsystem not shown on
this screen, press [f1](Next Screen) once, which places you at
the screen shown in Figure 3-4 "IBM Logging
Configuration (2) Screen" or twice, which places you at the screen shown in
Figure 3-5 "IBM Logging Configuration (3)
Screen" Each of these screens is described later in this chapter.
Figure 3-3 IBM Logging Configuration (1) Screen
Fields
Subsystem
For display only. The names and numbers of the subsystems you
can configure logging for on this screen.
Class Name
For display only. The names of the logging classes you can
configure logging for on this screen.
Console Logging
Required. Enter Y if you want logging events for a
class displayed at the HP e3000 console; N, otherwise.
NOTE: If you change the console logging configuration for
any subsystem, the changes will not take effect until the
entire HP e3000 system is shut down and restarted.
Disk Logging
Required. Enter Y if you want logging events for a
class recorded in the NM log file; N, otherwise. The file name
that Node Management Services (NMS) uses is NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000 through
9999. This is a common file used for logging by all
logging classes in all subsystems. At each MPE system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive file by incrementing nnnn. When
NMLG9999.PUB.SYS is full, NMS names the next file
NMLG0000.PUB.SYS. The MPE commands RESUMENMLOG,
SHOWNMLOG, and SWITCHNMLOG are used to control logging and
the log file. These commands are described in
Chapter 6 "MPE Commands" of this manual.
NOTE: If you change the disk logging configuration for a subsystem,
the changes will not take effect until that subsystem is shut
down and restarted.
Event
For display only. The type of information logged for a class.
SNA Transport (SUB0001):
CLAS0010: node events
Node activation
Link activation
Link errors
Internal errors
Node shutdown
Note that if you are using an X.25 link and you want logging
information recorded, logging (console, disk, or both) for this
SNA Transport class (CLAS0010) must be
enabled, because the X.25 link uses the logging facilities for this
SNA Transport class.
CLAS0011: protocol errors
Packet discards/rejects
Bad port messages
CLAS0012: LU-LU activities
OpenUser/CloseUser
Session activation/Session deactivation
CLAS0013: LU-SSCP activities
OpenUser/CloseUser
Session activation/Session deactivation
Note that if you are using a manual-dial modem, console logging for
this SNA Transport class (CLAS0013) must be
enabled, so that pertinent logging messages can be displayed.
NRJE (SUB0002):
CLAS0010: workstation events
Job transmission
Job output reception (including Peripheral Device Information
Records [PDIRs])
Noncritical errors
CLAS0012: critical events and errors
Critical errors
LU startup
LU shutdown
CLAS0013: JES2, JES3, and VSE/POWER console commands and
messages
Console commands
Console messages
DHCF (SUB0020):
CLAS0010: serious and internal errors
Errors fatal to session
Errors fatal to subsystem
CLAS0011: warnings
Errors not fatal to session
Errors not fatal to subsystem
CLAS0012: informational messages
Session startup
Session shutdown
Subsystem startup
Subsystem shutdown
CLAS0013: diagnostic messages
Internal data
NOTE: If you want the logging events for only a specific logging
subsystem and class to be displayed at the list devices of users, see "Enabling
Users for a Specific Subsystem and Class" later in this chapter.
File
For display only. The name of the configuration file.
Once you have entered all of the logging information, press [f6]
(Save Data).
Then, if you do not want to configure logging information for other SNA
subsystems, press [f5] (Validate HP-IBM) to validate the
logging configuration you just did. Once the logging configuration is
validated, press [f4] (Exit Logging) to return to the
screen shown in Figure 3-2 "HP-IBM
Configuration Screen"
If you want to configure logging information for other SNA subsystems,
(1) press [f1] (Next Screen) once, which places you at
the "IBM Logging Configuration (2)" screen (described next in this
chapter); or (2) press [f1] (Next Screen) twice, which
places you at the "IBM Logging Configuration (3)" screen (described later
in this chapter).

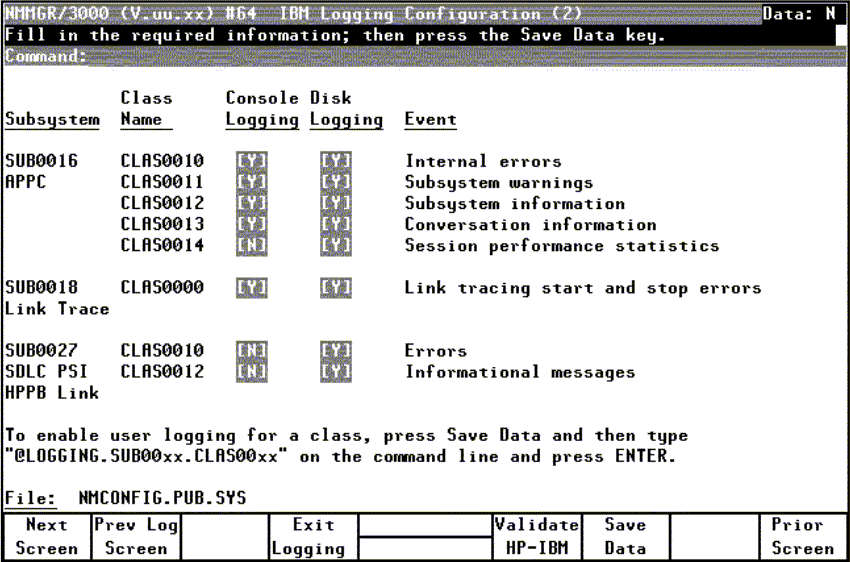

IBM Logging Configuration (2)
On this screen (Figure 3-4 "IBM Logging
Configuration (2) Screen"), you specify logging information for these
subsystems: APPC, link trace, and SDLC link.
If you want to specify logging information for an SNA subsystem not shown on
this screen, press [f1] (Next Screen), which places you at the
"IBM Logging Configuration (3)" screen (described later in this chapter), or
press [f8] (Prior Screen), which places you at the "IBM Logging
Configuration (1)" screen (described earlier in this chapter).
Figure 3-4 IBM Logging Configuration (2) Screen
Fields
Subsystem
For display only. The names and numbers of the subsystems you
can configure logging for on this screen.
Class Name
For display only. The names of the logging classes you can
configure logging for on this screen.
Console Logging
Required. Enter Y if you want logging events for a
class displayed at the HP e3000 console; N, otherwise.
NOTE: If you change the console logging configuration for
any subsystem, the changes will not take effect until the
entire HP e3000 system is shut down and restarted.
Disk Logging
Required. Enter Y if you want logging events for a
class recorded in the NM log file; N, otherwise. The file name
that Node Management Services (NMS) uses is NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000 through
9999. This is a common file used for logging by all
logging classes in all subsystems. At each MPE system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive file by incrementing nnnn. When
NMLG9999.PUB.SYS is full, NMS names the next file
NMLG0000.PUB.SYS. The MPE commands RESUMENMLOG,
SHOWNMLOG, and SWITCHNMLOG are used to control logging and
the log file. These commands are described in
Chapter 6 "MPE Commands" in this manual.
NOTE: If you change the disk logging configuration for a subsystem,
the changes will not take effect until that subsystem is shut
down and restarted.
Event
For display only. The type of information logged for a class.
APPC (SUB0016):
CLAS0010: internal errors
CLAS0011: subsystem warnings
CLAS0012: subsystem information messages
CLAS0013: conversation information messages
CLAS0014: session performance statistics
Link trace (SUB0018):
CLAS0000: link trace starting and stopping errors
Errors that occur when starting or stopping SDLC link-level
tracing. This does not include link errors.
SDLC link (SUB0027):
CLAS0010: errors
CLAS0012: informational messages
NOTE: If you want the logging events for only a specific logging
subsystem and class to be displayed at the list devices of users, see "Enabling
Users for a Specific Subsystem and Class" later in this chapter.
File
For display only. The name of the configuration file.
Once you have entered all of the logging information, press [f6]
(Save Data).
Then, if you do not want to configure logging information for other SNA
subsystems, press [f5] (Validate HP-IBM) to validate the
logging configuration you just did. Once the logging configuration is
validated, press [f4] (Exit Logging) to return to the
screen shown in Figure 3-2 "HP-IBM
Configuration Screen"
NOTE: Although the logging subsystem for RJE/BSC Link (SUB0037)
is shown on the "IBM Logging Configuration (3)" screen, information for
configuring RJE/BSC Link logging is not included in this manual. See the
RJE/XL Node Manager's Guide for that information.
For display only. The names and numbers of the subsystems you
can configure logging for on this screen.
Class Name
For display only. The names of the logging classes you can
configure logging for on this screen.
Disk Logging
Required. Enter Y if you want logging events for a
class recorded in the NM log file; N, otherwise. The file name
that Node Management Services (NMS) uses is NMLGnnnn.PUB.SYS,
where nnnn is a number from 0000 through
9999. This is a common file used for logging by all
logging classes in all subsystems. At each MPE system startup, or when a
file is full, NMS creates a new NMLGnnnn.PUB.SYS file,
naming each successive file by incrementing nnnn. When
NMLG9999.PUB.SYS is full, NMS names the next file
NMLG0000.PUB.SYS. The MPE commands RESUMENMLOG,
SHOWNMLOG, and SWITCHNMLOG are used to control logging and
the log file. These commands are described in
Chapter 6 "MPE Commands" of this manual.
NOTE: If you change the console logging configuration for
any subsystem, the changes will not take effect until the
entire HP e3000 system is shut down and restarted.
Event
For display only. The type of information logged for a class.
SNADS (SUB0046):
CLAS0010: serious and internal errors
Errors that prevent HP SNADS/XL, a Transport process, or a
mapper process from continuing.
CLAS0011: warnings
Conditions that should be noticed, but which do not prevent
normal operation of HP SNADS/XL.
CLAS0012: subsystem information
HP SNADS/XL subsystem information
Success or failure of the VERIFYManager
command
Token Ring Link (SUB0061):
CLAS0001: Errors
CLAS0002: warnings
CLAS0003: informational messages
NOTE: If you want the logging events for only a specific logging
subsystem and class to be displayed at the list devices of users, see
"Enabling Users for a Specific Subsystem and
Class" later in this chapter.
File
For display only. The name of the configuration file.
Once you have entered all of the logging information, press [f6]
(Save Data).
Then, if you do not want to configure logging information for other SNA
subsystems, press [f5] (Validate HP-IBM) to validate the
logging configuration you just did. Once the logging configuration is
validated, press [f4] (Exit Logging) to return to the
screen shown in Figure 3-2 "HP-IBM
Configuration Screen"

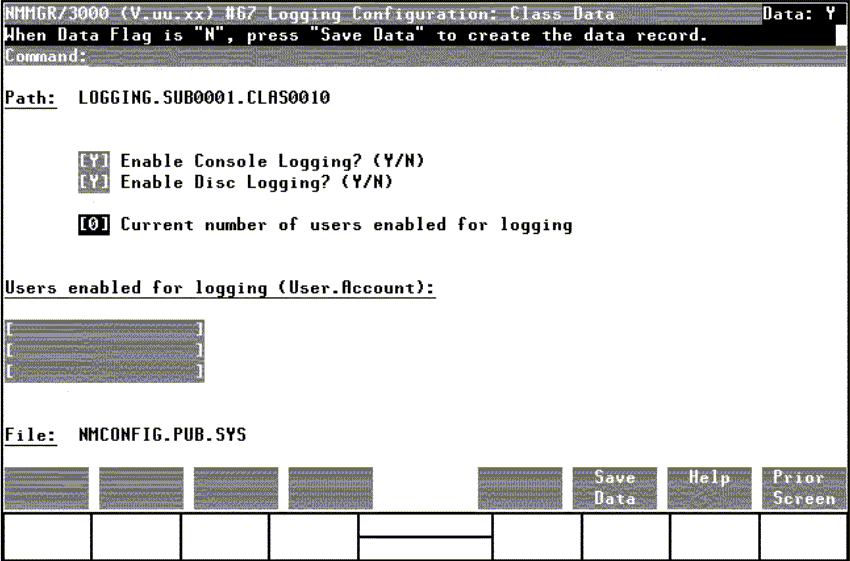

If you want the logging events for only a specific logging
subsystem and class to be displayed at the list devices of users, you can do it
through the screen shown in Figure 3-6 "Class
Data Screen" You can go directly to this screen from any screen by typing
@LOGGING.subsystemname.classname in the command window and
pressing [ENTER].
Figure 3-6 Class Data Screen
Fields
Path:
For display only. The NMMGR path to this screen. It includes
the names of the subsystem and the logging class you are enabling users
for.
Enable Console Logging?
Required. Enter Y if you want logging events for
only this subsystem and class displayed at the HP e3000
console; N, otherwise.
NOTE: If you change the console logging configuration for
any subsystem, the changes will not take effect until the
entire HP e3000 system is shut down and restarted.
Enable Disc Logging?
Required. Enter Y if you want logging events for
only this subsystem and class recorded in the NM log
file; N, otherwise. The file name that Node Management Services
(NMS) uses is NMLGnnnn.PUB.SYS, where nnnn
is a number from 0000 through 9999. This
is a common file used for logging by all logging classes in all subsystems.
At each MPE system startup, or when a file is full, NMS creates a new
NMLGnnnn.PUB.SYS file, naming each successive file by
incrementing nnnn. When NMLG9999.PUB.SYS
is full, NMS names the next file NMLG0000.PUB.SYS. The
MPE commands RESUMENMLOG, SHOWNMLOG, and SWITCHNMLOG
are used to control logging and the log file. These commands are described
in Chapter 6 "MPE Commands" in this manual.
NOTE: If you change the disk logging configuration for a subsystem,
the changes will not take effect until that subsystem is shut
down and restarted.
Current number of users enabled for logging
For display only. The number of users specified for Users
enabled for logging. For example, if two users are specified for
Users enabled for logging, the value 2 would be
displayed here when [f6] (Save Data) is pressed.
Users enabled for logging
You can have the logging events for only this subsystem and
class displayed at the list devices of users. We recommend
that you enable logging for the users responsible for installing and
maintaining the SNA subsystems you are configuring logging for. Enter up
to three user names in the form UserName.AccountName.
When you press [f6] (Save Data), NMMGR deletes duplicate
entries and enters the number of users specified into Current number
of users enabled for logging.
NOTE: If a user enabled for logging is logged on at the system
console, and console logging is enabled, two copies of each logged
message might be received.
File
For display only. The name of the configuration file.
Once you have entered the data, press [f6] (Save Data).
After the information is saved, press [f8] (Prior Screen)
until you get to the screen you need next.
