The largest unit in ALLBASE/SQL is the DBEnvironment,
which can be seen logically as a collection of database objects or
physically as a group of files. Objects are database structures.
Logically, the DBEnvironment is a structure which contains
one or more relational databases. In ALLBASE/SQL, a database is
a set of tables, views, and other objects that have the same owner.
The data in a relational database is organized in tables. A table
is a two-dimensional structure of columns and rows:
The Parts Table
----------------+------------------------------+----------
PARTNUMBER |PARTNAME |SALESPRICE
----------------+------------------------------+---------- _
1123-P-01 |Central Processor | 500.00 |
1133-P-01 |Communication Processor | 200.00 |- rows
1143-P-01 |Video Processor | 180.00 _|
| | |
+-----------------------+-----------------------+
|
columns
Often a table is referred to as a relation, and a row as a tuple.
You can also think of a row as a record, and a column as a field in a file, or
table.
A view is a table derived by placing a "window" over one or more tables
to let users or programs view only certain data. A view derived from the Parts
table shown above might look like this:
The PartsID View
----------------+------------------------------
PARTNUMBER |PARTNAME
----------------+------------------------------
1123-P-01 |Central Processor
1133-P-01 |Communication Processor
1143-P-01 |Video Processor
The owner of a table or view can be
one of the three following entities:
Individual as identified by the DBEUserID, which is the
login name. An individual who logs in as
WOLFGANG.ACCOUNTNAME is known to ALLBASE/SQL as
WOLFGANG@ACCOUNTNAME.
Authorization group, a named collection of individuals or
other groups. Wolfgang might be part of a group named
Managers. A group must be created explicitly by using
the CREATE GROUP statement.
Class, a name that identifies a user-defined abstraction,
such as a department or a function. Wolfgang might use tables owned
by a class called Marketing. A class is created
implicitly when you create objects that have a class name as owner
name.
Refer to Chapter 2 "Using ALLBASE/SQL" in this manual
and to the chapter "Logical Design" in the ALLBASE/SQL
Database Administration Guide for additional information about
authorization groups and classes.
To use data in a database, you need to specify the names of
the tables and views you need. You must also specify the owner name
associated with the table or view unless you own it (or you have
used the ISQL SET OWNER command). When accessing the Composers table,
Wolfgang needs to specify only Composers. However, when accessing the quotas
table, he needs to specify Marketing.Quotas because Marketing owns
the Quotas table.
You also need the proper authority to
access data. An authority is a privilege given to a user to perform
a specific database operation, such as accessing certain tables
and views and creating groups or tables. ALLBASE/SQL uses authorities
to safeguard databases from access by unauthorized users. In the
example above, before Wolfgang can access the Quotas table, he must
be granted the authority to do so by the owner of the table.
If you have been granted the proper authorization, you access databases by
first connecting to the DBEnvironment in which they reside:
CONNECT TO 'DBEnvironmentName'
Physically, the DBEnvironment is a collection of files for
one or more logical databases.
A DBEFile is an MPE XL file. Most files
in a DBEnvironment are DBEFiles. Data in the tables of logical databases
is stored in one or more DBEFiles. Indexes are also stored in DBEFiles;
an index is a structure that ALLBASE/SQL
can use to quickly find data in a table.
A DBEFileSet is a collection of DBEFiles.
You associate physical storage with a DBEFileSet by adding DBEFiles
to the DBEFileSet. Each DBEFileSet can have more than one DBEFile,
but a single DBEFile cannot contain data for more than one DBEFileSet.
When you create a table, you can specify the DBEFileSet with
which the table and its indexes will be associated. This causes
physical storage space for the table and indexes to be allocated
from the DBEFiles associated with the specified DBEFileSet.
Figure 1-2
illustrates the relationships among tables, DBEFiles, and DBEFileSets.

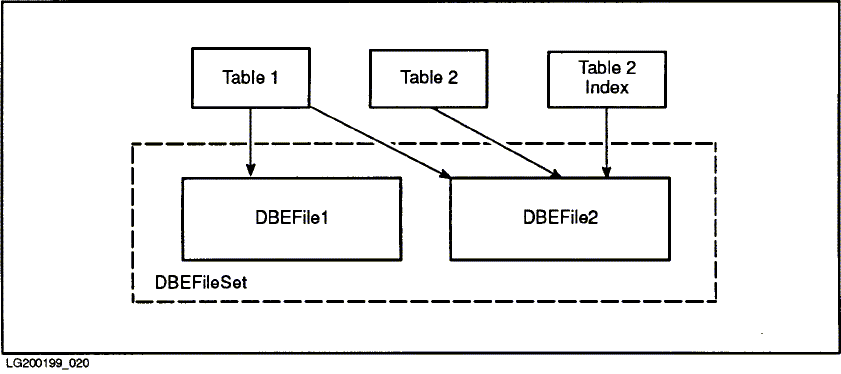

Figure 1-2 How Tables, DBEFiles, and DBEFileSets Are Related
A DBEFileSet specifies the files that contain data for one or more tables
associated with the DBEFileSet. These tables do not have to be in the same
database. Figure 1-3 illustrates
that, while a DBEFileSet can contain data for all the tables in
a database, a DBEFileSet can also contain data for some of the tables
in a database, or for tables in more than one database. Thus DBEFileSets
offer a way to allocate data storage independently of how users
think about the data.

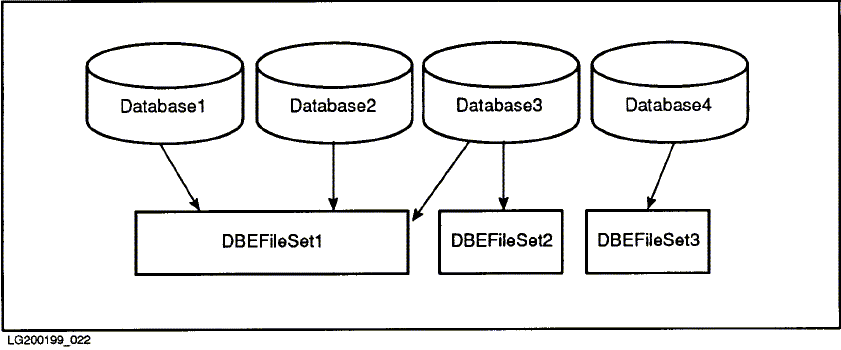

Figure 1-3 Databases and DBEFileSets
A DBEnvironment, illustrated in Figure 1-4,
houses the DBEFiles for one or more ALLBASE/SQL databases, plus the following,
which contain information for all databases in the
DBEnvironment:
A DBECon file. This file contains information about the
DBEnvironment configuration, such as the size of various buffers and
other startup parameters. The name of the DBECon file is the same as
the name of the DBEnvironment.
A system catalog. The system catalog is a collection of
tables and views that contain data describing DBEnvironment structure
and activity. The parts of the system catalog necessary for
DBEnvironment startup reside in a DBEFile known by default as
DBEFile0. All system catalog DBEFiles are associated with a
DBEFileSet called SYSTEM.
One or two log files. A log file contains a log of
DBEnvironment changes. ALLBASE/SQL uses log files to undo (roll
back) or redo (roll forward) changes made in the
DBEnvironment. The log files are known by default as DBELog1
and DBELog2.

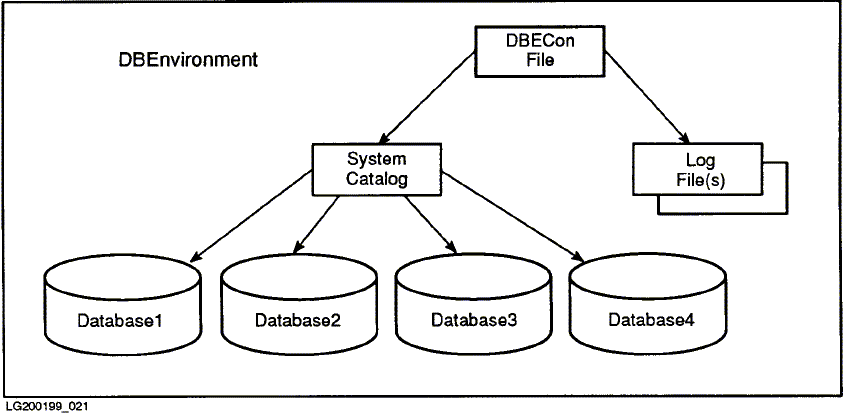

Figure 1-4 Elements of an ALLBASE/SQL DBEnvironment
Most database users need not be concerned with the physical
aspects of ALLBASE/SQL databases beyond knowing which DBEnvironment
contains the databases they want to access.
|
