FGETKEYINFO

MPE documents

Complete PDF
Table of Contents
Index

E0300 Edition 4 ♥
E0394 Edition 3

Syntax Parameters Operation Notes Condition Codes

Requests access and status information about a KSAM file.

Syntax


               I16V     BA     BA
  FGETKEYINFO (filenum, param, control);

Parameters

filenum

16-bit signed integer by value (required)

Passes the file number of the file about which information is requested.

param

byte array (required)

Returns information describing the key information for a KSAM file. The length is 162 bytes.

control

byte array (required)

Passes 256 bytes of control information about the key file.

Operation Notes

The FGETKEYINFO parameter returns an array equivalent to the array for the HPFOPEN and FOPEN intrinsics. (Refer to Figure 9-3 "FGETKEYINFO Parameter Format") Its length must be 162 bytes.

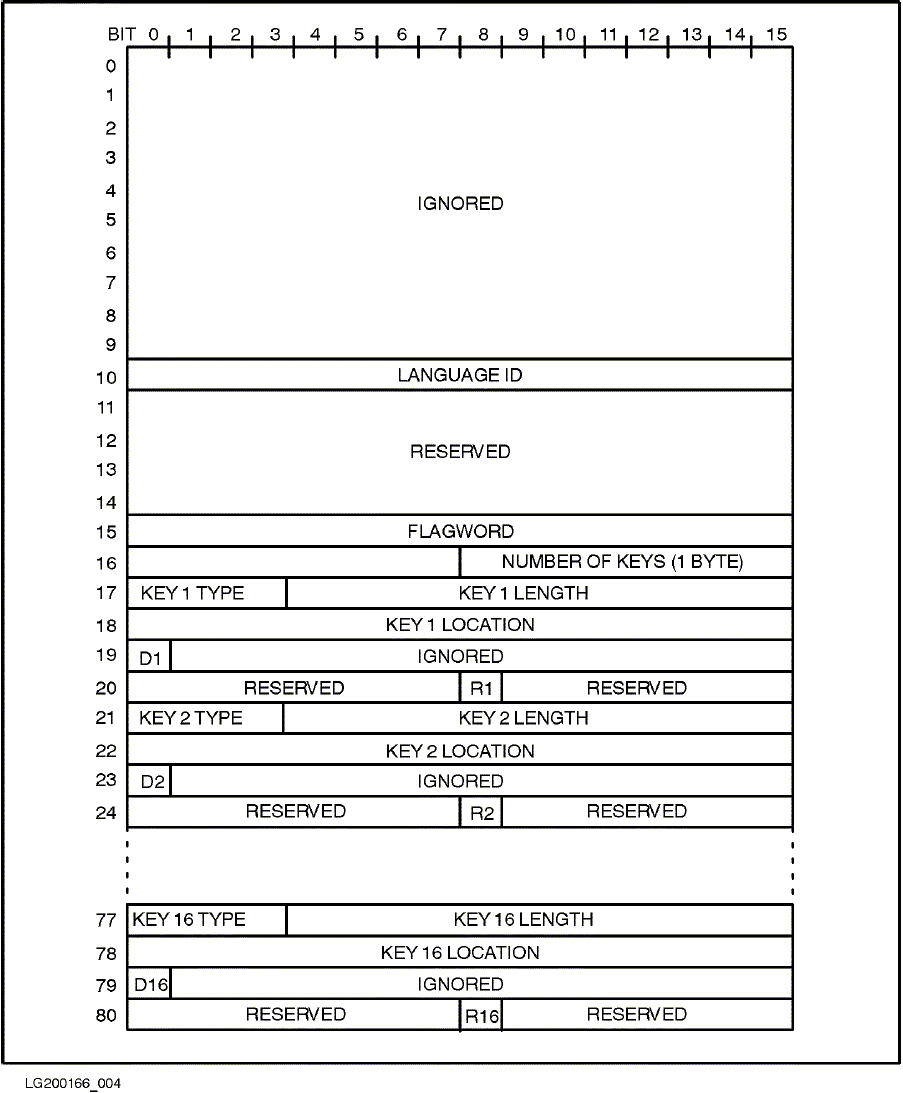

Figure 9-3 FGETKEYINFO Parameter Format

[FGETKEYINFO Parameter Format]

The control parameter provides dynamic information about the use of the file from the time it was created. It counts the number of times the file was referred to by intrinsics, and the date and time it was created, closed, updated, or written to. Its format is shown in Figure 9-4 "FGETKEYINFO Control Parameter Format"

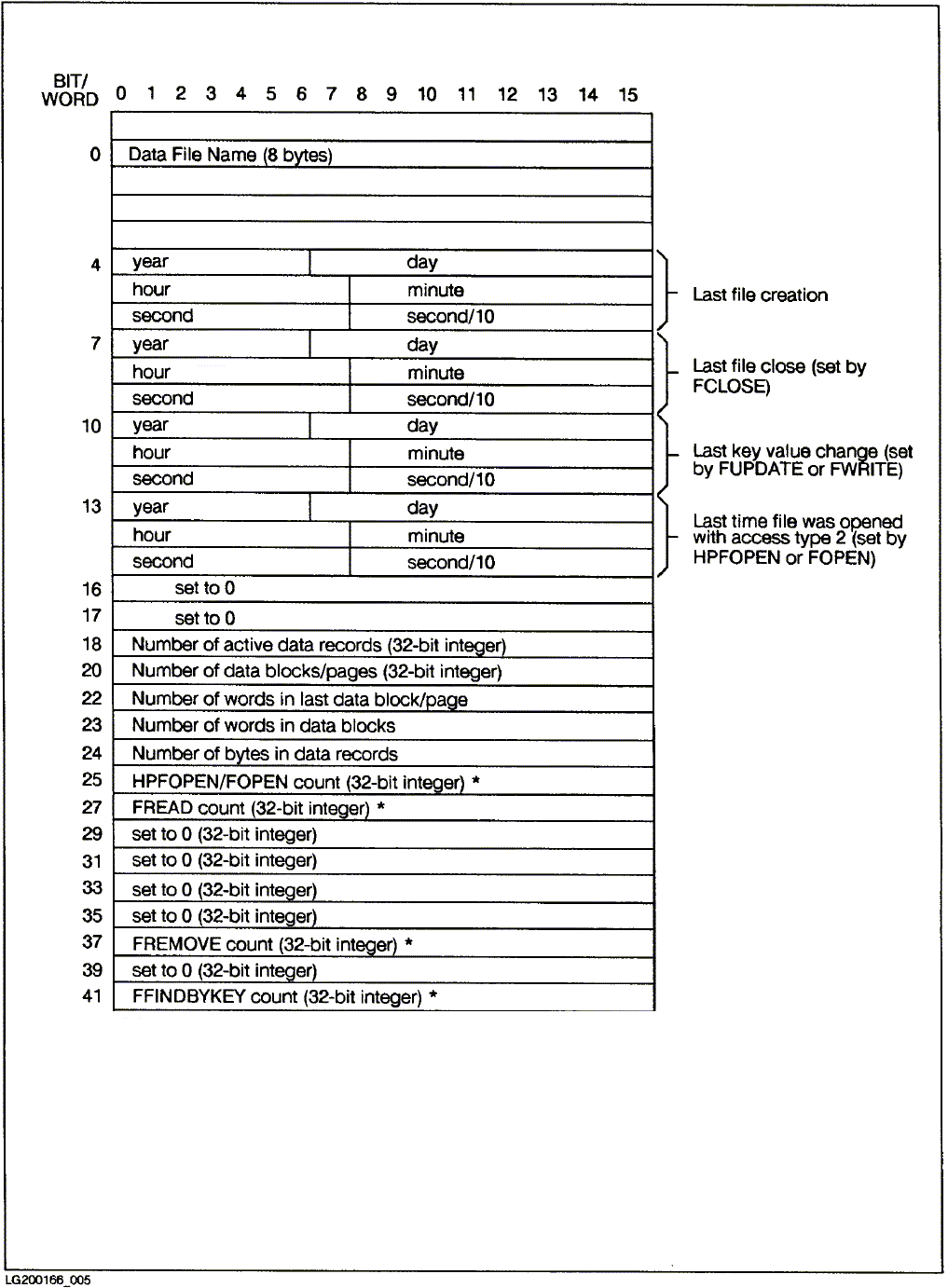

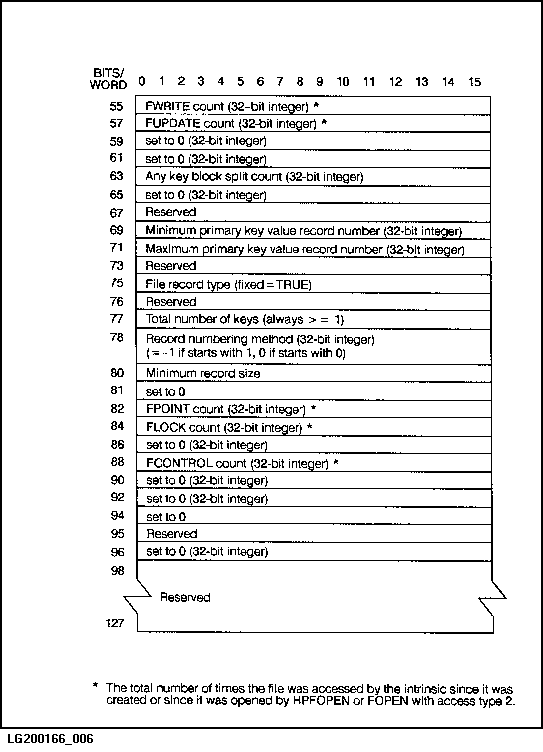

Figure 9-4 FGETKEYINFO Control Parameter Format

[FGETKEYINFO Control Parameter Format]

[]

Table 9-4 FGETKEYINFO Control Parameter Format

Word Bits/setting
43Set to 0 (32-bit interger)
45Minimum primary key value record number** (64-bit integer)**
49Maximum primary key value record number** (64-bit integer)**
53FFINDN Count (32-bit integer)**
55FWRITE Count (32-bit integer)**
57FUPDATE Count (32-bit integer)**
59Set to 0 (32-bit interger)
61Set to 0 (32-bit interger)
63Any key block splict count (32-bit integer)
65Set to 0 (32-bit interger)
67Reserved
69Minimum primary key value record number (32-bit integer)
71Maximum primary key value record number (32-bit integer)
73Reserved
75File record type (fixed=TRUE)
76Reserved
77Total number of keys (always >=1)
78Record numbering method (32-bit integer) (=-1 if starts with 1, 0 if starts with 0)
81Set to 0
82FPOINT Count (32-bit integer)**
84FLOCK Count (32-bit integer)**
86Set to 0 (32-bit interger)
88FCONTROL Count (32-bit integer)**
90Set to 0 (32-bit interger)
92File limit (32-bit unsigned interger)
94Key block size (16-bit unsigned integer)
95Set to 0 (16-bit unsigned interger)
96Set to 0 (16-bit unsigned interger)
97Set to 0 (16-bit unsigned interger)
98Set to 0 (16-bit unsigned interger)
99Set to 0 (16-bit unsigned interger)
100Data reuse (16-bit unsigned interger)
101Set to 0 (32-bit unsigned interger)
103Num deleted records (32-bit unsigned interger)
105Set to 0 (16-bit unsigned interger)
106Set to 0 (16-bit unsigned interger)
107Set to 0 (16-bit unsigned interger)
108Chronological data pointer (64-bit signed integer)
112Logical data pointer (64-bit signed integer)
116Lang ID (16-bit unsigned interger)
117Set to 0 (32-bit unsigned interger)
119Set to 0 (32-bit unsigned interger)
121Set to 0 (32-bit unsigned interger)
123Chronological data pointer** (32-bit unsigned integer)**
125Logical data pointer** (32-bit unsigned integer)**
127Reserved

**These fields are valid for KSAM XL and KSAM64 only. For KSAM XL and KSAM 64 files the 64-bit fields minimum primary key value record number as well as the maximum primary key value record number contain the same value as their 32-bit counterparts. For a KSAM XL file the 64-bit fields chronological data pointer and the logical data pointer contain the same value as the 32-bit counterparts. For a KSAM64 file, if the file size is less than 4 gigabytes, then the 64 bit and the 32-bit fields will have identical values. However, if the file size is greater than 4 gigabytes, the the 32-bit fields will contain hex ('ffffffff') while the 64-bit fields will contain the actual values.

Condition Codes

CCE

Request granted.

CCG

Not returned.

CCL

Request denied. An error occurred; insufficient space was declared for param or control, an illegal file number was specified, or the DB register is not set to the user stack.

Refer to this intrinsic in the MPE/iX Intrinsics Reference Manual for other codes pertaining to KSAM files.
