The file system uses record pointers to find specific records
for your use. Physical record pointers (also referred to as block
pointers) are used to locate specific blocks on disk; logical record
pointers blocks and deblocks the logical records in a physical record
and indicate specific logical records within a file. A file opened
with the inhibit buffering option parameter set to BUF
(the default) is accessed with a logical record pointer. A file opened with the
inhibit buffering option parameter set to NOBUF
is accessed with a physical record (or block) pointer.

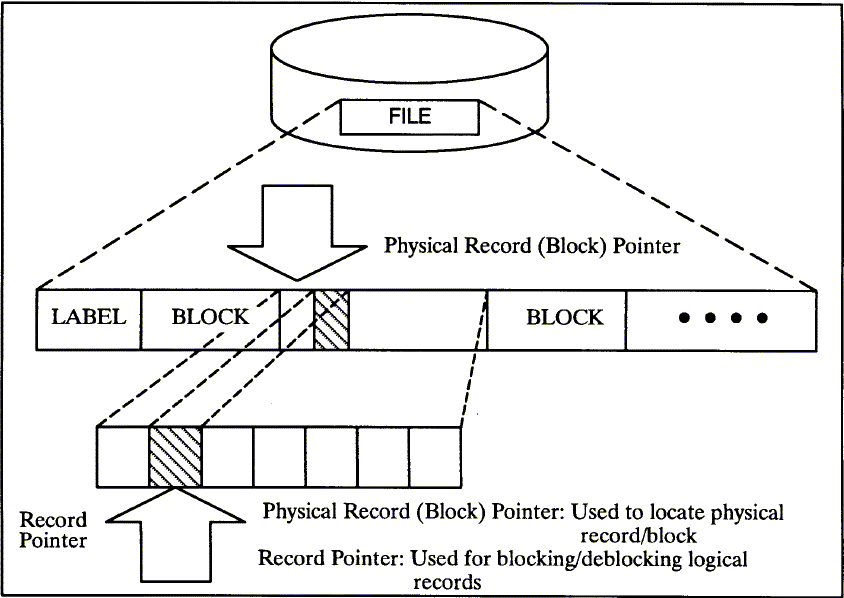

Figure 7-1 "Record Pointers" shows how the
physical and logical
record pointers operate together to locate any record in a file.
For any record, the physical record pointer indicates the correct
block, and the logical record pointer locates the logical record
within the block.
The file system uses both the physical and the logical record
pointers to locate records. Future references to "record pointer"
in this manual will imply this combination.
When you open your file the HPFOPEN/FOPEN intrinsic sets the
record pointer to record 0 (the first record in your file) for all operations.
If you have opened the file with APPEND access, though (using the
access type option parameter available in
HPFOPEN/FOPEN), MPE/iX moves the record pointer to the end of
the file prior to a write operation; this ensures that any data
that you write to the file is added to the end of the file rather
than written over existing data.
Figure 7-1 Record Pointers
Following initialization, the record pointer may remain in
position at the head of your file, or it may be moved by the intrinsics
used in record selection.
