The operation of the FCLOSE intrinsic as used with unlabeled magnetic
tape is outlined in the flowchart of Figure 6-1
"Using the FCLOSE Intrinsic with Unlabeled Magnetic Tape".

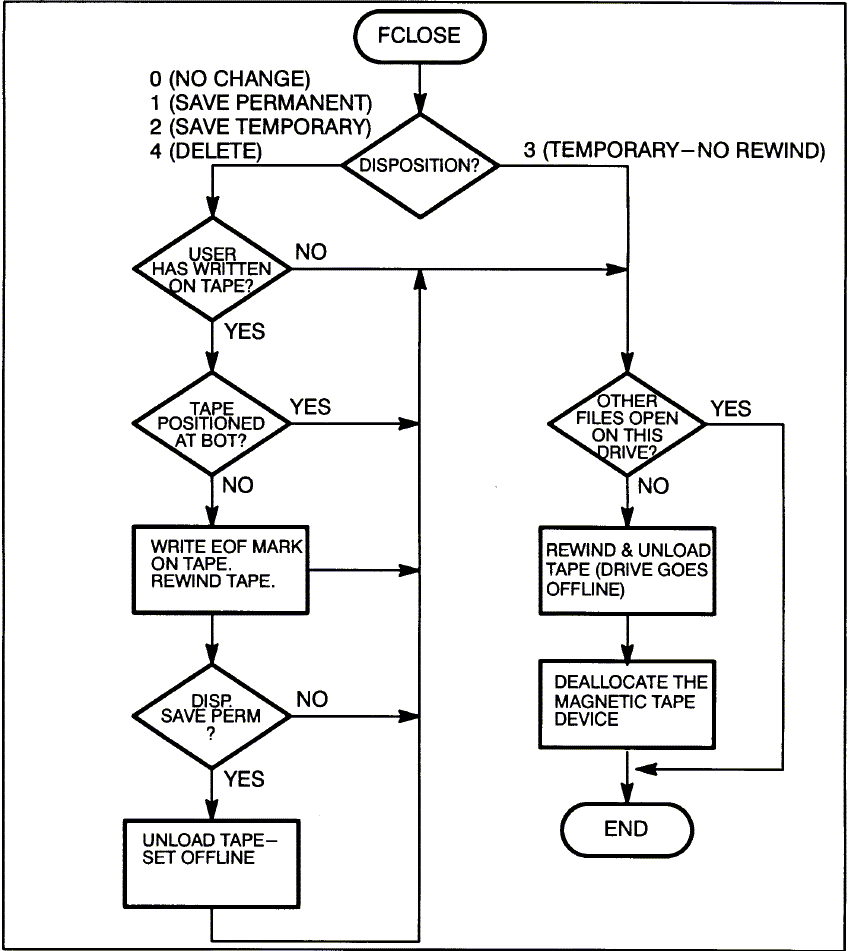

Figure 6-1 Using the FCLOSE Intrinsic with Unlabeled Magnetic Tape
Note that a tape closed with the temporary no-rewind disposition is rewound and
unloaded if certain additional conditions are not met. It is possible for a
single process to open a magnetic tape device using the device class
option of HPFOPEN/FOPEN, then again open the
already-allocated device by specifying its logical device number (ldev) using
the device name option of HPFOPEN/FOPEN. This
may be done in such a manner that both magnetic tape files are open
concurrently. The second HPFOPEN/FOPEN does not require any
operator intervention to allocate the device. When file open and file close
calls are arranged in a nested fashion, tape files may be closed without
deallocating the physical device, as follows:
Such nesting of HPFOPEN/FOPEN and FCLOSE pairs is
required to keep from rewinding a tape closed with FCLOSE. A tape
closed with the temporary, no-rewind disposition is rewound and unloaded unless
the process closing it has another file currently open on the device.
When a temporary no-rewind tape is deallocated, the file system has not placed
an EOF (end-of-file mark) at the end of the data file.
The FCLOSE intrinsic can be used to maintain position when
creating or reading a labeled tape file that is part of a volume
set. If you close the file with a disposition code of 0 or 3, the
tape does not rewind, but remains positioned at the next file. If
you close the file with a disposition code of 2, the tape rewinds
to the beginning of the file, but is not unloaded. A subsequent
request to open the file does not reposition the tape if the sequence
(seq) subparameter is NEXT or default (1).
A disposition code of 1 (save permanent) implies the close of an entire tape
volume set.
