System-defined file designators indicate those files that the file system
uniquely identifies as standard input/output devices for jobs and sessions.
These designators are described in Table 3-1
"System-Defined File Designators" When you reference them, you use only the
file name; group or account names and lockwords do not apply.
Table 3-1 System-Defined File Designators
FILE\DESIGNATOR (NAME)
DEVICE/FILE REFERENCED
$STDIN
The standard job or session input device from which your job/session is
initiated. For a session, this is always a terminal. For a job, it may be
a disk file or other input device. Input data images in this file should
not contain a colon in column 1, because this indicates the end-of-data.
(When data is to be delimited: use the EOD command, which
performs no other function.)
$STDINX
Same as $STDIN except that MPE/iX command images (those with a
colon in column 1) encountered in a data file are read without indicating
the end-of-data; however, the commands :EOD and EOF
(and in batch jobs, the commands JOB, EOJ and
DATA) are exceptions that always indicate end-of-data, but are
otherwise ignored in this context--they are never read as data.
$STDINX is often used by interactive subsystems and programs to
reference the terminal as an input file.
$STDLIST
The standard job or session listing device, nearly always a terminal for
a session and a printer for a batch job.
$NULL
The name of a nonexistent ghost file that is always treated as an empty
file. When referenced as an input by a program, that program receives an
end-of-data indication upon each access. When referenced as an output
file, the associated write request is accepted by MPE/iX but no physical
output is actually done. Thus, $NULL can be used to discard
unneeded output from a running program.
As an example of how to use some of these designators, suppose you are running
a program that accepts input from a file programmatically defined as
INFILE and directs output to a file programmatically defined as
OUTFILE. Your program specifies that these are disk files, but you
wish to respecify these files so that INFILE is read from the standard
input device and OUTFILE is sent to the standard listing device.
You could enter the following commands:
All file designators can be classified as those used for input files (Input
Set), or those used for output files (Output Set). For your convenience, these
sets are summarized in Table 3-2 "Input
Set" and Table 3-3 "Output Set"Table 3-2 Input Set
File Designator
Function/Meaning
$STDIN
Job/session input device.
$STDINX
Job/session input device with commands allowed.
$OLDPASS
Last $NEWPASS file closed. Discussed in the following
pages.
$NULL
Constantly empty file that returns end-of-file indication when
read.
*formaldesignator
Back reference to a previously defined file.
filereference
File name, and perhaps account and group names and lockword. May be a
temporary file created in current job/session, created and saved in any
job/session.
Table 3-3 Output Set
File Designator
Function/Meaning
$STDLIST
Job/session list device.
$OLDPASS
Last file passed. Discussed in following pages.
$NEWPASS
New temporary file to be passed. Discussed in the following
pages.
$NULL
Constantly empty files that returns end-of-file indication when
read.
*formaldesignator
Back reference to a previously defined file.
filereference
File name, and perhaps account and group names and lockword. Unless you
specify otherwise, this is a temporary file residing on disk that is
destroyed on termination of the creating program. If closed as a
temporary file, it is purged at the end of the job/session. If closed
as a permanent file, it is saved until you purge it.
An input file and a list file are said to be interactive if
a real-time dialog can be established between a program and a person
using the list file as a channel for programmatic requests, with
appropriate responses from a person using the input file. For example,
an input file and a list file opened to the same teleprinting terminal
(for a session) would constitute an interactive pair. An input file
and a list file are said to be duplicative when input from the former
is duplicated automatically on the latter. For example, input from
a magnetic tape device is printed on a line printer.
You can determine whether a pair of files is interactive or duplicative with
the FRELATE intrinsic call. (The interactive/duplicative attributes
of a file pair do not change between the that time the files are
opened and the time they are closed.)
The FRELATE intrinsic applies to files on all devices. To determine if
the input file INFILE and the list file LISTFILE are
interactive or duplicative, you could issue the following FRELATE
intrinsic call:
ABLE := FRELATE(INFILE,LISTFILE);
INFILE and LISTFILE are identifiers specifying the file
numbers of the two files. The file numbers were assigned to INFILE and
LISTFILE when the HPFOPEN/FOPEN intrinsic opened the files.
A half-word is returned to ABLE showing whether the files are
interactive or duplicative. The half-word returned contains two significant
bits, 0 and 15:
if bit 15 = 1, INFILE and LISTFILE form an
interactive pair
if bit 15 = 0, INFILE and LISTFILE do not form
an interactive pair
if bit 0 = 1, INFILE and LISTFILE form a
duplicative pair
if bit 0 = 0, INFILE and LISTFILE do not form a
duplicative pair
Programmers, particularly those writing compilers or other subsystems,
sometimes create a temporary disk file that can be automatically passed to
succeeding MPE/iX commands within a job or session. This file is always created
under the special name $NEWPASS. When your program closes the file,
MPE/iX automatically changes its name to $OLDPASS and deletes any
other file named $OLDPASS in the job/session temporary file domain.
From this point on, your commands and programs reference the file as
$OLDPASS. Only one file named $NEWPASS and/or one file named
$OLDPASS can exist in the job/session domain at any one time.

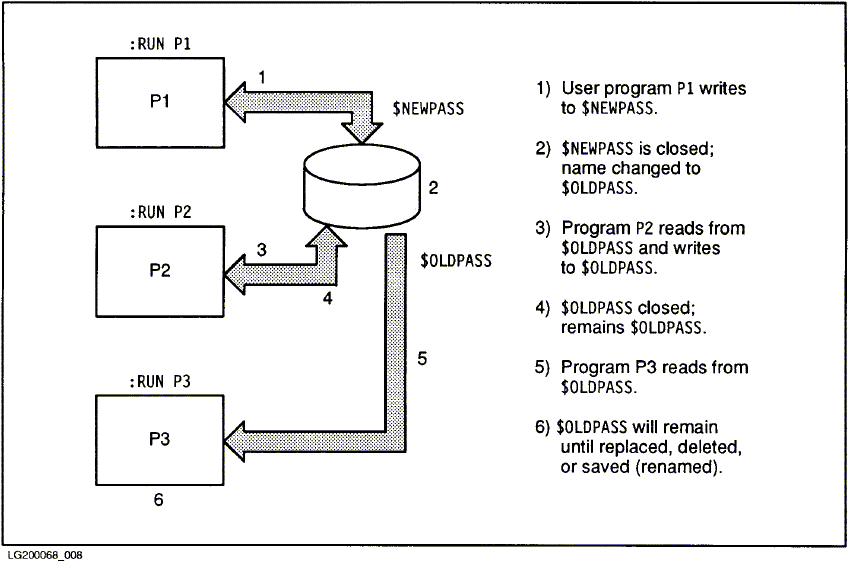

The automatic passing of files between program runs is depicted in
Figure 3-1 "Passing Files between Program Runs"
To illustrate how file passing works, consider an example where two programs,
PROG1 and PROG2, are executed. PROG1 receives input
from the actual disk file DSFILE (through the programmatic name
SOURCE1) and writes output to an actual file $NEWPASS, to be
passed to PROG2. ($NEWPASS is referenced programmatically in
PROG1 by the name INTERFIL.) When PROG2 is run, it
receives $NEWPASS (now known by the actual designator
$OLDPASS), referencing that file programmatically as SOURCE2.
Note that only one file can be designated for passing.
Figure 3-1 Passing Files between Program Runs
.
.
.
FILE SOURCE1=DSFIL
FILE INTERFIL=$NEWPASS <---
RUN PROG1 |- Same File
FILE SOURCE2=$OLDPASS <---
RUN PROG2
.
.
.
A program file must pass through several steps as it is executed;
passed files are most frequently used between these steps. A program
file must be compiled and linked before it is executed. By default,
the compiled form of a text file is written to $NEWPASS. When the
compiler closes $NEWPASS, its name is changed to $OLDPASS;
it is this file that is linked for execution.
The linked form of the program file is written to a new $NEWPASS,
which is renamed $OLDPASS when the file is closed; the old
$OLDPASS is deleted. Now, this file is ready to be executed.
This $OLDPASS may be executed any number of times, until it
is overwritten by another $OLDPASS file.

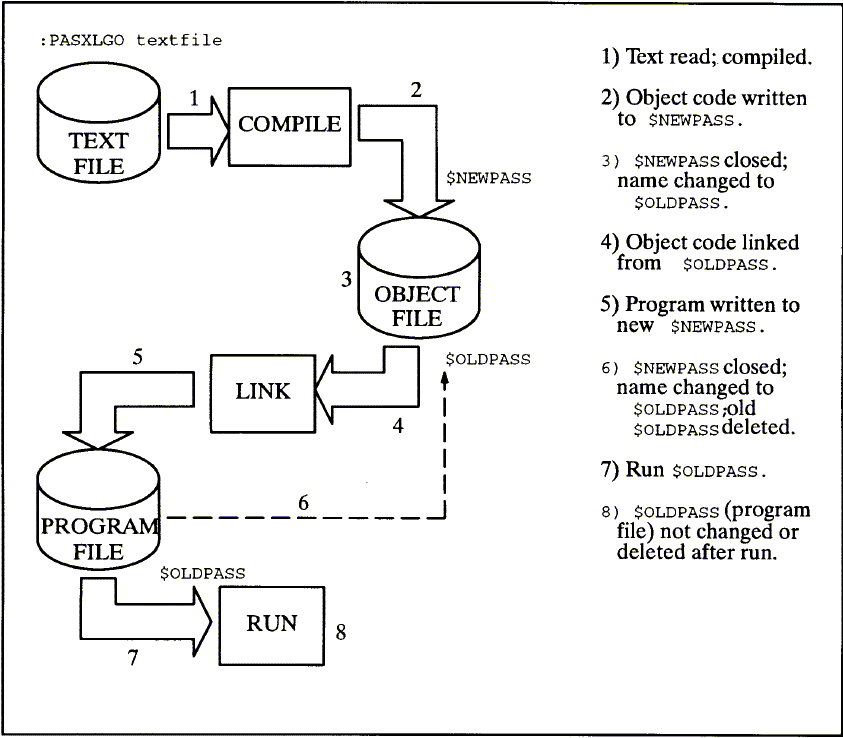

The steps that a program takes as it is run are depicted in
Figure 3-2 "Passing Files within a Program
Run".
Figure 3-2 Passing Files within a Program Run$NEWPASS and $OLDPASS are specialized disk files with many
similarities to other disk files. Comparisons of $NEWPASS to new
files, and $OLDPASS to old files, are given in
Table 3-4 "New Files Versus $NEWPASS" and
Table 3-5 "Old Files Versus $OLDPASS".
Table 3-4 New Files Versus $NEWPASS
NEW
$NEWPASS
Disk space allocated.
Disk space allocated.
Disk address put into control block.
Disk address put into
control block.
Default close disposition:
Deallocate space.
Delete control block entry.
Default close disposition:
Rename to $OLDPASS.
Save disk address in current job or session table. (Job Information Table)
Delete control block entry.
Disk address not saved (Not in any directory).
Disk address saved for future use in the current job session.
Table 3-5 Old Files Versus $OLDPASS
OLD
$OLDPASS
Directory (job temporary or system) searched for disk address
Disk address obtained from Job Information Table (JIT)
Disk address put into control block.
Disk address put into control block.
Default close disposition:
Delete control block.
Default close disposition:
Delete control block.
Disk address still in directory for future use.
Disk address still in JIT for future use in current job session.
