A file can contain records written in only one of three formats: fixed-length,
variable-length, and undefined-length. You can specify the format that you want
for your records, either with the HPFOPEN/FOPEN intrinsic or the
MPE/iX BUILD or FILE commands.
Files residing on disk or magnetic tape may contain records in any of the three
formats. For files on other devices, the file system overrides any
specifications that you supply, and treats the records as undefined-length
records.
When you create a file and request fixed-length records, all
the records in the file will be the same size. The file system knows
how much space has been allocated for each record, and that all
of the space is to be available for data.

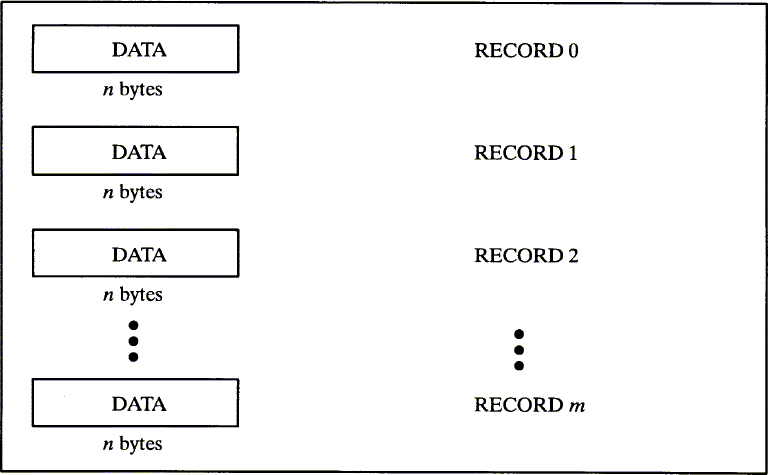

Figure 2-2 "Fixed-Length Records" depicts a
file with fixed-length records. A record size of n bytes has
been specified. Note that each record is the same size and contains the same
amount of information.
Figure 2-2 Fixed-Length Records
There may be a time when you want a disk file in which the
logical records need not be the same size. In this case, you can
request that the format of the records be variable-length. The file
system knows the size of each logical record because each record
is preceded by a two-byte (16-bit) counter giving the length of
the record in bytes; thus, the data for each record is accompanied by an
indication of its length. When you build a file containing variable-length
records, specify a record size at least large enough to accommodate
your longest record.

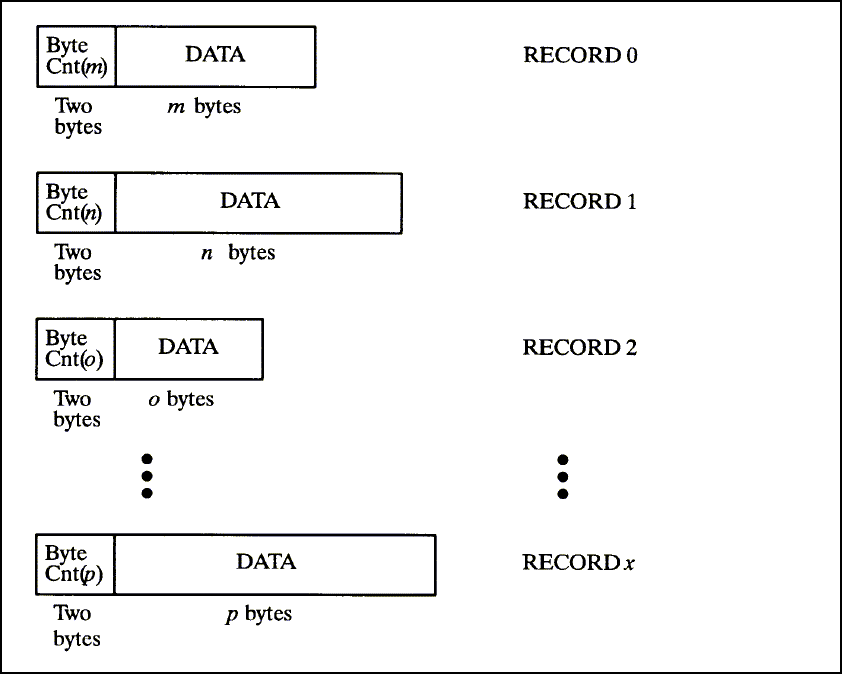

Figure 2-3 "Variable-length Records" depicts a
file with variable-length records. The byte count preceding the first byte of
each record gives its record's length.
Figure 2-3 Variable-length Records
When your file contains undefined-length records, the file
system does not know the amount of good data in any given logical
record. The data length is "undefined." Undefined-length records
are especially useful when you are reading tapes of unknown record
length produced on other systems.
The file system knows the maximum room available in each record
because the same amount of space is allocated for each record; however,
the data in the records may vary in length, so MPE/iX pads the unused
space with "filler" instead of good data. The file system supplies
this filler during writes to the file when the length of the data
being written is less than the maximum record length. The file system
cannot distinguish between valid data and filler. When you read
data from a file you must be able to distinguish between the valid data
and the filler.

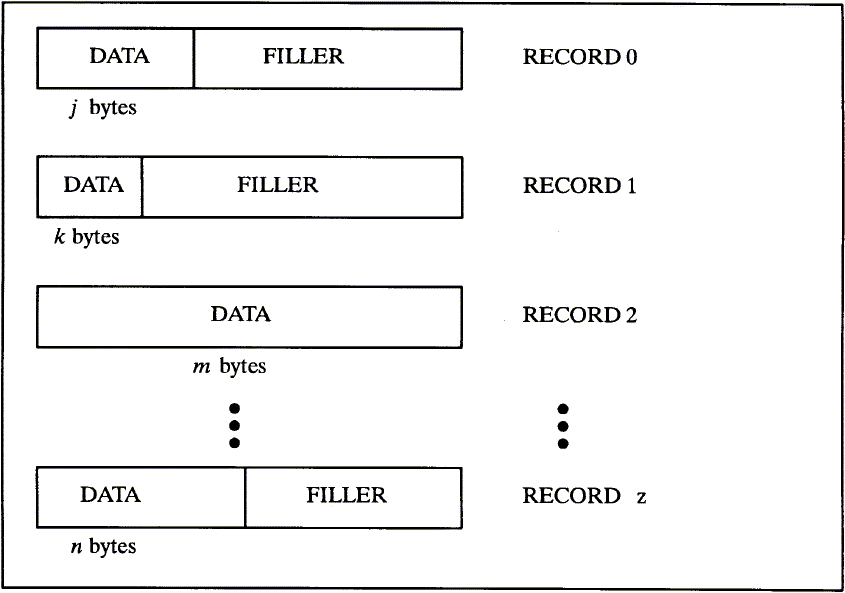

Figure 2-4 "Undefined-Length Records" depicts
a file with undefined-length records. When data does not fill the space
allocated, filler occupies the unused space.
Figure 2-4 Undefined-Length Records
The three record formats, fixed-length, variable-length, and undefined-length
are summarized in Table 2-4 "Comparison of
Logical Record Formats"
Table 2-4 Comparison of Logical Record Formats
Fixed-Length |
Variable-Length |
Undefined-Length |
Data length known to file system. | Data length known to file system. |
Data length not known to file system. |
Same length for all records. | Record length varies. |
Same length for all records. |
Record space contains data only. | Record space contains data plus byte count. |
Record space contains data plus filler. |
Request actual size for records. | Request maximum size for records. |
Request maximum size for records. |
|
