4. Attach the Adapter to the Network
»

Technical documentation

Complete book in PDF
» Feedback

 » Table of Contents

 » Glossary

 » Index

spacerspacerspacer
spacer
spacer



Use the RJ-45 connector for connecting a UTP category 3 or 5 cable (not supplied) to a 100VG-AnyLAN hub or 10Base-T hub/switch. Refer to Figure 1-3 “Port Connection”..

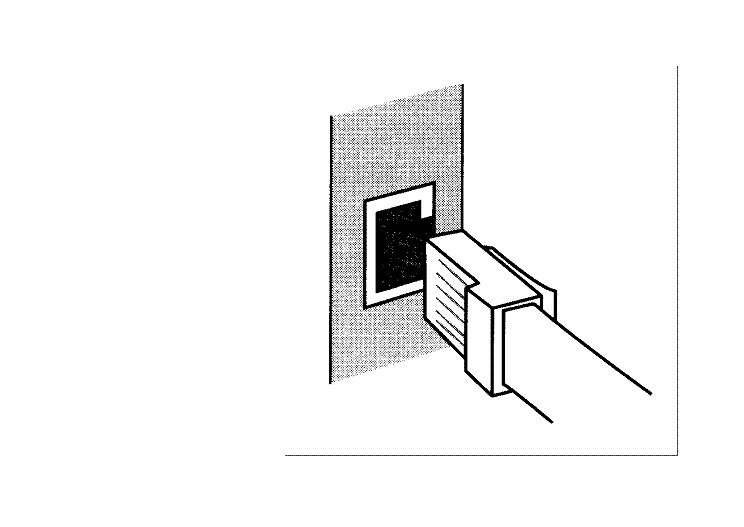

Figure 1-3 Port Connection

[Port Connection]

Attach the cable to the RJ-45 connector by following these steps:

  1. Plug the cable into the RJ-45 connector.

  2. Secure the other end of the cable to the 100VG-AnyLAN hub or 10Base-T hub/switch.

  3. If necessary, reconfigure the hub/switch port to operate at the desired speed and duplex settings.

NOTE: All of the LEDs on the adapter (except the Power LED) are initialized by software when the link is started on the system. Therefore, until software initializes the adapter, the state of the LEDs cannot be reliably interpreted.
