The flags, opt, data, and result parameters are common to many NetIPC intrinsics. Remote Process Management intrinsics also use these parameters, with the exception of the data parameter. The following discussion of these parameters may help to clarify the more condensed information given under each intrinsic.

Flags Parameter

The flags parameter is a bit representation, 32 bits long, of various options. Normally an option is invoked if the appropriate bit is on (that is, set equal to 1). Borrowing Pascal-type syntax, we shall use flags [0] to refer to the high order bit in the parameter, flags [31] to refer to the low order bit, and a similar designation to refer to each of the bits in between. Bits which are not defined for a given intrinsic must be off (zero).

Opt Parameter

The opt parameter, which denotes various options, contains an integer code for each option along with associated information. It is not necessary to know the internal structure of this parameter in order to use it. Several opt parameter manipulation intrinsics have been provided to enable you to add option information without concerning yourself with the parameter's structure. However, a knowledge of the structure of the opt parameter can help you to determine an appropriate size for the array.

The opt parameter must be defined as a byte array or as a record structured in the manner described below. If your program is written in a language which supports dynamically allocated arrays, the OPTOVERHEAD intrinsic may be used to determine the size of the array.

The opt parameter consists of these fields as shown in Figure 3-1 “OPT Parameter Structure”.

  • length, in bytes, of option entries and data (2-byte integer);

  • number of entries (2-byte integer);

  • option entries (8 bytes per option entry). Each 8-byte option entry, in turn, consists of the following fields:

    • option code (2-byte integer);

    • offset (2-byte integer) byte offset relative to the base address of the opt parameter indicating the location of the data for this option entry;

    • data length, in bytes(2-byte integer);

    • Reserved (2 bytes).

  • data associated with the option entries (variable length).

If the parameter is declared as a simple byte array, it must be large enough to contain 4 bytes for the first two fixed-length fields, 8 bytes for each option entry, plus the actual data. That is:

     4  +  8 * numentries  +  datalength
NOTE: Use of certain opt parameter options may result in the loss of portability between different Hewlett-Packard systems.

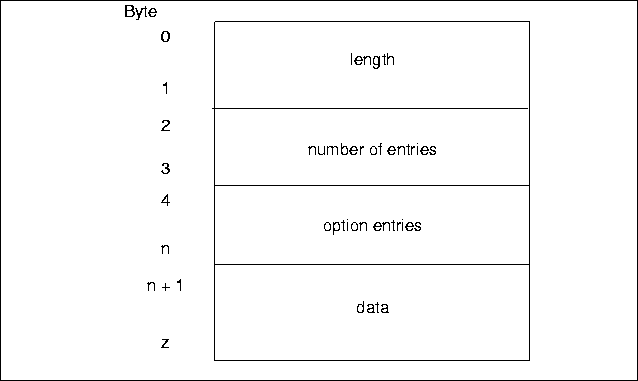

Figure 3-1 OPT Parameter Structure

OPT Parameter Structure

Figure 3-2 “Option Entry Structure.” shows the structure of an option entry.

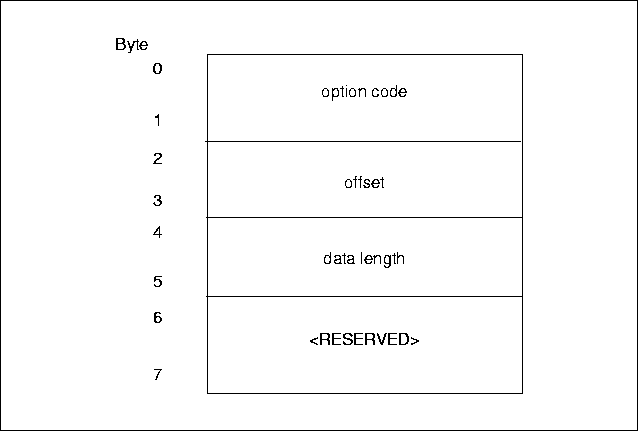

Figure 3-2 Option Entry Structure.

Option Entry Structure.

Data Parameter

The data parameter is defined as a byte array. It can be in one of two formats: either holding the actual data or in a vectored format. In the case of vectored data, the data parameter does not contain actual data but rather the addresses from or to which the data will be gathered or distributed.

The addresses of the data are represented by data location descriptors. For all intrinsics supporting vectored data, a maximum of two data location descriptors is permitted.

For vectored data, the parameter must be a record structured as described below. The format of a compatibility mode data location descriptor is different than a native mode data location descriptor as shown in Figure 3-3 “Data Location Descriptor — Vectored Data”.

Combining a compatibility mode vector with a native mode vector in the same NetIPC call is not supported.

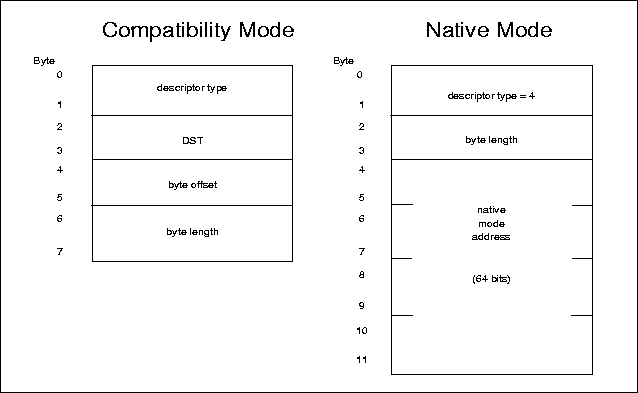

Figure 3-3 Data Location Descriptor — Vectored Data

Data Location Descriptor — Vectored Data

Compatibility Mode

In compatibility mode, the data location descriptor is eight bytes long and consists of four 2-byte fields. If the vector points to the stack, that is, type = 0, the value you input into the Data Segment Table (DST) is zero (DST = 0).

A compatibility mode data location descriptor consists of the following fields:

  • descriptor type (represented by a 2-byte integer); The compatibility mode descriptor type field can have one of the following values:

    0 — (Stack) the offset is a DB-relative byte address on the calling process's data stack (the DST is ignored);

    1 — (DST Index) DST is the logical index number returned by the MPE XL HPGETDSEG intrinsic;

    2 — (DST Number) DST is an actual data segment number. All data segment references, that is, calls in split-stack mode, require privileged mode.

  • DST (data segment table) number or index;

  • byte offset indicating the start of the data to be transmitted. (This would be the byte count from DB on the calling process's stack or segment relative from the extra data segment (XDS)).

  • byte length of the vectored data.

Native Mode

In native mode, the data location descriptor is 12-bytes long. It contains two 2-byte fields and a 64-bit native mode address. The DST field is unnecessary because DSTs do not exist in native mode. The three fields in the native mode vectored data descriptor are:

  • descriptor type (2-byte integer); in this field, only Type = 4 for NM addressing is valid;

  • byte length of the data;

  • native mode address (64-bits long); this is a long pointer (in Pascal terminology) to the data.

Example:

     nm_address:= globalanyptr(addr(data));

DLEN Parameter

In both compatibility and native mode, the dlen parameter indicates the full length of the data parameter. If the data are vectored, dlen must give the total length of each data location descriptor, not the length of the actual data buffer. For example, the length of a single or double vectored descriptor would be 8 or 16 bytes in compatibility mode; and 12 or 24 bytes for native mode.

Result Parameter

If a NetIPC (or Remote Process Management) intrinsic call is successful, the result parameter returns a value of zero. Otherwise the value returned represents a NetIPC error code (SOCKERR). NetIPC error messages are listed in Appendix A “IPC Interpreter (IPCINT)”of this manual. You can also obtain the corresponding error message by calling IPCERRMSG.

NOTE: When nowait I/O is used, the result parameter is not updated upon completion of an intrinsic. Therefore, the value of result only indicates whether the call was successfully initiated. To determine if the call completed successfully, you can use the IPCCHECK intrinsic immediately afterward.

Condition Codes

On an HP 3000, NetIPC intrinsics cause MPE condition codes to be set. CCE indicates successful completion, CCL indicates failure, and CCG is either not used or represents a warning.
