Regardless of the mode you use, the following input files must be
available when you invoke the FORTRAN preprocessor, as shown in
Figure 2-3 “FORTRAN Preprocessor Input and Output”:
Source File: a file containing the FORTRAN ALLBASE/SQL source code program and/or subprogram unit(s)
with embedded SQL commands that access the same DBEnvironment. The .sql suffix in SourceFileName.sql is optional although its use is recommended
for file name clarity.
ALLBASE/SQL Message Catalog: the ALLBASE/SQL message catalog,
which contains preprocessor messages and ALLBASE/SQL error and warning messages. The fully qualified name for the default message catalog is:
/usr/lib/nls/n-computer/hpsqlcat For native language users, the name of the catalog is:
/usr/lib/nls/$LANG/hpsqlcat where $LANG is the name of the current language. If this
catalog is not available, ALLBASE/SQL issues a warning and uses the default catalog instead.

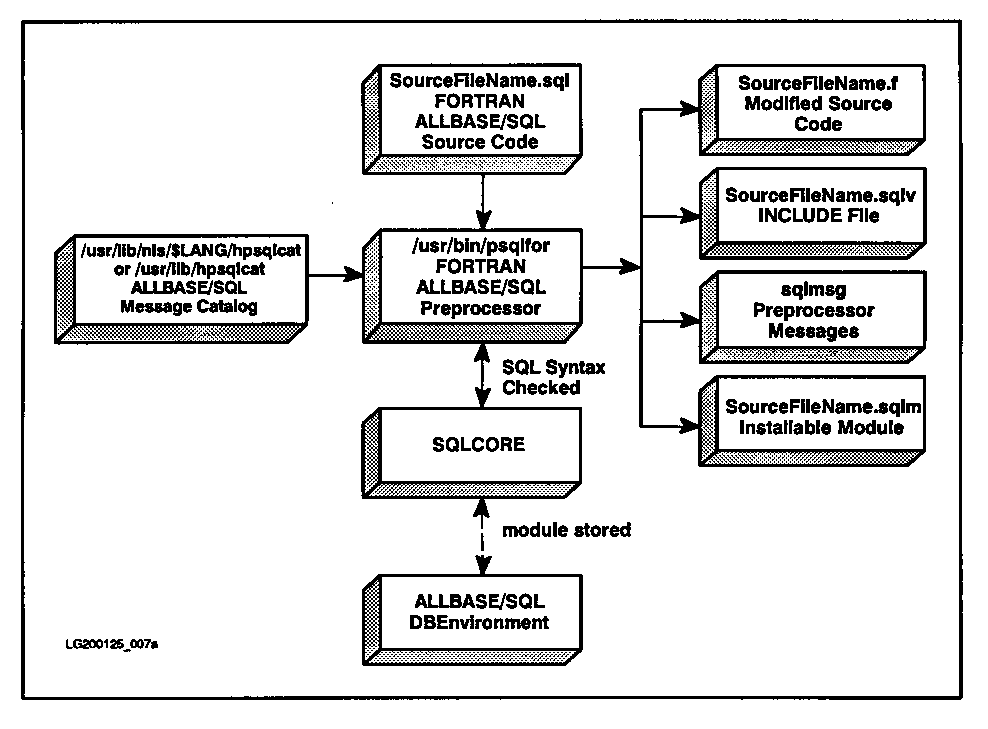

Figure 2-3 FORTRAN Preprocessor Input and Output
![[FORTRAN Preprocessor Input and Output]](img/125_007a.gif)
Figure 2-3 “FORTRAN Preprocessor Input and Output” shows the output file created by the preprocessor. These files are as follows:
Modified Source File: a file containing
the preprocessor modified version of the source code. If
the ModifiedSourceFileName.f is entered by using the -p
option in the options list, the FORTRAN compiler requires
that the .f suffix be included. If the ModifiedSourceFileName is not entered in the option list
when executing the preprocessor, the default file name syntax is
the input source file name (SourceFileName.sql) with the
.f appended file extension:
After you use the preprocessor in full preprocessing mode,
you see ModifiedSourceFileName.f and the following include
file as input files for the FORTRAN compiler, as shown in Figure 2-4 “FORTRAN Compiler Input”.
Include File: an include
file containing definitions of variables used by FORTRAN
statements the preprocessor inserts into
ModifiedSourceFileName.f. The default file name syntax is:
ModifiedSourceFileName.sqlv ALLBASE/SQL Message File: a file containing the preprocessor
banner, ALLBASE/SQL error and warning messages, and other messages. The
default file name for this file is:
Installable File: a file
containing a copy of the module created by the preprocessor. The default file name syntax for this file is:
ModifiedSourceFileName.sqlm
When you run the preprocessor in full preprocessing mode,
the preprocessor also stores a module in the DBEnvironment
accessed by your program. The module is used at run time
to execute DBEnvironment operations. If SourceFileName
is in a language other than ASCII, the
ModifiedSourceFileName and all generated files will have
names in the native language and extensions in ASCII.
When you run the preprocessor in full preprocessing mode,
also ensure that the DBEnvironment accessed by the program
or subprogram unit is available.

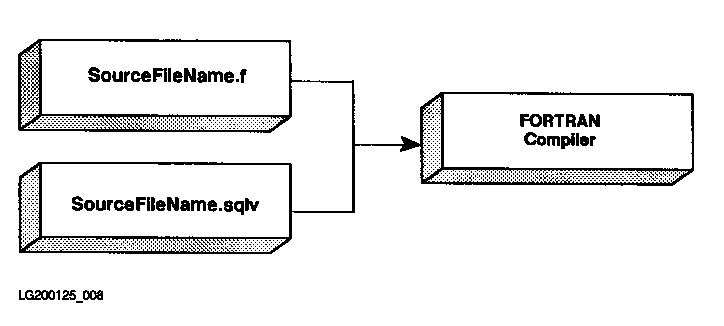

Figure 2-4 FORTRAN Compiler Input
![[FORTRAN Compiler Input]](img/uf0204.gif)
Preprocessor Source File | |
The preprocessor source file must contain at a minimum the
following statements:
PROGRAM Statement
AnyStatement
END
|
When parsing the source file, the FORTRAN preprocessor ignores
all FORTRAN statements and any FORTRAN compiler directives that
are not supported. Only the following information is parsed by
the FORTRAN preprocessor:
The PROGRAM Statement or SUBROUTINE name. Unless you specify a
module name in the preprocessor invocation line, the
preprocessor uses the PROGRAM Statement or the SUBROUTINE name
to name the module it stores. A module name can contain as many
as 20 bytes and must follow the rules governing ALLBASE/SQL
basic names (given in the ALLBASE/SQL Reference Manual ).
Statements found after the prefix EXEC SQL. Follow the
rules given in Chapter 3 for how and where to embed these
statements.
Statements found between the BEGIN DECLARE SECTION and END
DECLARE SECTION commands. These commands delimit a declare section,
which contains FORTRAN data description entries for the host variables used in that program
or subprogram unit. All program units (both main and
subprogram) that contain SQL commands, regardless of whether or
not they contain host variables, must include the BEGIN DECLARE
SECTION and the END DECLARE SECTION commands in order to create
the ModifiedSourceFileName.sqlv file. Host variables are described in Chapter 4.
The FORTRAN compiler directives $SET, $IF, $ELSE, $ENDIF, and
$INCLUDE are supported by the FORTRAN preprocessor. All other
compiler directives are ignored.
Figure 2-6 “Program forex2” illustrates a source file containing a sample
program using the following SQL commands:
As the interactive sample dialog in Figure 2-5 illustrates, the
program begins a DBE session for PartsDBE, the sample
DBEnvironment. It prompts the user for a part number, then
displays information about the part from the table
PurchDB.Parts. Warning and error conditions are handled with
WHENEVER and SQLEXPLAIN commands. The program continues to
prompt for a part number until the user enters a slash (/) or
until a serious error is encountered:
Figure 2-5 Runtime Dialog of Program forex2
Program to SELECT specified rows from the Parts table -- forex2
Event List:
CONNECT TO ../sampledb/PartsDBE
BEGIN WORK
SELECT specified row from the Parts table until user enters a "/"
COMMIT WORK
RELEASE ../sampledb/PartsDBE
CONNECT TO ../sampledb/PartsDBE
Enter PartNumber from Parts table or / to STOP > 1123-P-01
BEGIN WORK
SELECT PartNumber, PartName, SalesPrice
Part Number: 1123-P-01
Part Name: Central Processor
Sales Price: 500.00
Was retrieved from the PurchDB.Parts table!
COMMIT WORK
Enter PartNumber from Parts table or / to STOP > 1323-D-01
BEGIN WORK
SELECT PartNumber, PartName, SalesPrice
Part Number: 1323-D-01
Part Name: Floppy Diskette Drive
Sales Price: 200.00
Was retrieved from the PurchDB.Parts table!
COMMIT WORK
Enter PartNumber from Parts table or / to STOP > 1954-LP-01
BEGIN WORK
SELECT PartNumber, PartName, SalesPrice
Row not found!
COMMIT WORK
Enter PartNumber from Parts Table or / to STOP > 1823-PT-01
BEGIN WORK
SELECT PartNumber, PartName, SalesPrice
Part Number: 1823-PT-01
Part Name: Graphics Printer
Sales Price: 450.00
Was retrieved from the PurchDB.Parts table!
COMMIT WORK
Enter PartNumber from Parts table or / to STOP > /
RELEASE ../sampledb/PartsDBE
|
Figure 2-6 Program forex2
PROGRAM forex2
C
C ********************************************************
C * This program illustrates the use of SQL's SELECT *
C * command to retrieve one row or tuple of data at *
C * a time. This program executes a BEGIN WORK command *
C * before the SELECT command, and a COMMIT WORK command *
C * after executing the SELECT command. An indicator *
C * variable is also used for SalesPrice. *
C ********************************************************
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
CHARACTER Done
CHARACTER Abort
INTEGER MultipleRows
INTEGER Deadlock
CHARACTER*16 Response
C
C ****************************************************
C * Data Type Conversions : *
C * Character = SQL Char(1) *
C * Character*n = SQL Char(n) *
C * Character*n = SQL VarChar *
C * Double Precision = SQL Float *
C * Double Precision = SQL Decimal *
C * Integer = SQL Integer *
C * Integer*2 = SQL SmallInt *
C ****************************************************
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
EXEC SQL END DECLARE SECTION
C
C (* End Host Variable Declarations *)
C
C
C
C
C
C (* Beginning of the Main Program *)
C
WRITE (*,*) CHAR(27), 'U'
WRITE (*,*) 'Program to SELECT specified rows from the Parts Table
1 -- forex2'
WRITE (*,*) ' '
WRITE (*,*) 'Event List:'
WRITE (*,*) ' BEGIN WORK'
WRITE (*,*) ' SELECT specified row from the Parts table until use
1r enters a "/"'
WRITE (*,*) ' COMMIT WORK'
WRITE (*,*) ' RELEASE ../sampledb/PartsDBE'
C
CALL ConnectDBE
CALL QueryTable
CALL ReleaseDBE
C
STOP
END
C
C (* Beginning of the Sub-Routines *)
C
SUBROUTINE ConnectDBE
C (* Subroutine to Connect to ../sampledb/PartsDBE *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
EXEC SQL END DECLARE SECTION
C
EXEC SQL WHENEVER SQLERROR GOTO 500
C
WRITE (*,*) ' '
WRITE (*,*) 'CONNECT TO ../sampledb/PartsDBE'
EXEC SQL CONNECT TO '../sampledb/PartsDBE'
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
CALL ReleaseDBE
C
600 RETURN
EXEC SQL WHENEVER SQLERROR CONTINUE
END
C (* End of ConnectDBE Subroutine *)
C
SUBROUTINE BeginTransaction
C (* Subroutine to Begin Work *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
EXEC SQL END DECLARE SECTION
C
EXEC SQL WHENEVER SQLERROR GOTO 500
C
WRITE (*,*) 'BEGIN WORK'
EXEC SQL BEGIN WORK
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
CALL ReleaseDBE
600 RETURN
EXEC SQL WHENEVER SQLERROR CONTINUE
END
C (* End BeginTransaction Subroutine *)
C
SUBROUTINE EndTransaction
C (* Subroutine to Commit Work *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
EXEC SQL END DECLARE SECTION
C
EXEC SQL WHENEVER SQLERROR GOTO 500
C
WRITE (*,*) 'COMMIT WORK'
C
C
EXEC SQL COMMIT WORK
GOTO 600
500 CALL SQLStatusCheck
CALL ReleaseDBE
C
600 RETURN
EXEC SQL WHENEVER SQLERROR CONTINUE
END
C (* End EndTransaction Subroutine *)
C
SUBROUTINE ReleaseDBE
C (* Subroutine to Release ../sampledb/PartsDBE *)
C
EXEC SQL INCLUDE SQLCA
C (* Begin SQL Communication Area *)
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
EXEC SQL END DECLARE SECTION
C
EXEC SQL WHENEVER SQLERROR GOTO 500
C
WRITE (*,*) 'RELEASE ../sampledb/PartsDBE'
EXEC SQL RELEASE
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
C
600 RETURN
EXEC SQL WHENEVER SQLERROR CONTINUE
END
C (* End ReleaseDBE Subroutine *)
C
C
C
C
C
C
C
C
C
C
C
C
C
SUBROUTINE DisplayRow (PartNumber,PartName,SalesPrice,
1SalesPriceInd)
C (* Subroutine to Display a Selected Row *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
EXEC SQL END DECLARE SECTION
C
WRITE(*,100) PartNumber
WRITE(*,110) PartName
IF (SalesPriceInd .LT. 0) THEN
WRITE (*,*) 'Sales Price is NULL'
ELSE
WRITE(*,120) SalesPrice
ENDIF
WRITE (*,*) 'Was retrieved from the PurchDB.Parts table!'
100 FORMAT(' Part Number: ',A16)
110 FORMAT(' Part Name: ',A30)
120 FORMAT(' SalesPrice: ',F10.2)
C
RETURN
END
C (* End DisplayRow Subroutine *)
C
SUBROUTINE SQLStatusCheck
C (* Subroutine to Check the Status of DeadLocks *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
LOGICAL Abort
INTEGER DeadLock
C
C
C
C (* Begin Host Variable Declarations *)
C
EXEC SQL BEGIN DECLARE SECTION
CHARACTER*80 SQLMessage
EXEC SQL END DECLARE SECTION
C
C (* End Host Variable Declarations *)
C
DeadLock = -14024
Abort = .TRUE.
WRITE (*,*) Abort
IF (SQLCode .LT. DeadLock) THEN
Abort = .TRUE.
ELSE
Abort = .FALSE.
ENDIF
DO WHILE (SQLCode .NE. 0)
EXEC SQL SQLExplain :SQLMessage
WRITE (*,*) SQLMessage
END DO
IF (Abort) THEN
CALL EndTransaction
CALL ReleaseDBE
ENDIF
RETURN
END
C (* End of SQLStatusCheck Subroutine *)
C
SUBROUTINE QueryTable
C (* Subroutine to Query the Parts table *)
C
EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
INTEGER DeadLock
INTEGER MultipleRows
INTEGER NotFound
INTEGER OK
C
C
C (* Begin Host Variable Declarations *)
EXEC SQL BEGIN DECLARE SECTION
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
EXEC SQL END DECLARE SECTION
C
C (* End Host Variable Declarations *)
C
MultipleRows = -10002
DeadLock = -14024
NotFound = 100
OK = 0
C
DO WHILE (PartNumber .NE. '/')
WRITE(*,100)
100 FORMAT(/$,' Enter PartNumber from Parts table or / to STOP > ')
READ(*,110) PartNumber
110 FORMAT (A16)
C
IF (PartNumber .NE. '/' ) THEN
C
CALL BeginTransaction
WRITE(*,*) 'SELECT PartNumber, PartName, SalesPrice'
C
EXEC SQL SELECT PartNumber, PartName, SalesPrice
1 INTO :PartNumber,
2 :PartName,
3 :SalesPrice :SalesPriceInd
4 FROM PurchDB.Parts
5 WHERE PartNumber = :PartNumber
C
IF ((SQLWarn(3) .EQ. 'w') .OR. (SQLWarn(3) .EQ. 'W')) THEN
WRITE (*,*) 'SQL WARNING has occurred. The following row'
WRITE (*,*) 'of data may not be valid!'
CALL DisplayRow (PartNumber,PartName,SalesPrice,
1 SalesPriceInd)
ENDIF
C
C
C
C
C
C
C
IF (SQLCode .EQ. OK) THEN
CALL DisplayRow (PartNumber, PartName, SalesPrice)
ELSEIF (SQLCode .EQ. NotFound) THEN
WRITE (*,*) 'Row not found!'
ELSEIF (SQLCode .EQ. MultipleRows) THEN
WRITE(*,*) 'WARNING: More than one row qualifies!'
ELSE
CALL SQLStatusCheck
ENDIF
CALL EndTransaction
ENDIF
END DO
RETURN
END
C (* End QueryTable Subroutine *)
|
Output File Attributes | |
When the source file illustrated in Figure 2-6 “Program forex2” is preprocessed,
the attributes of the output files are created as follows:
$ ll forex2*
-r--r--r-- 1 bill dbsupport 8974 Mar 10 12:41 forex2
-rwxrwxr-x 1 bill dbsupport 17275 Mar 10 12:41 forex2.f
-rwxrwxr-x 1 bill dbsupport 1500 Mar 10 12:41 forex2.sqlm
-rwxrwxr-x 1 bill dbsupport 210 Mar 10 12:41 forex2.sqlv
$ ll sqlmsg
-rwxrwxr-x 1 bill dbsupport 405 Mar 10 12:41 sqlmsg
$
|
Preprocessor Modified Source File | |
As the FORTRAN preprocessor parses the source file, it copies
lines from the source file into the modified source file,
comments out embedded SQL commands, and inserts information
around each embedded SQL command. Figure 2-7 illustrates the
modified source file generated for the source file pictured in
Figure 2-6 “Program forex2”. The shaded lines show the start of original code commented out,
the preprocessor-generated code added, and some other key statements.
In both preprocessing modes, the FORTRAN preprocessor:
Inserts a C in column 1 on each line containing an embedded SQL
command to comment out the SQL command for the FORTRAN compiler.
Inserts one include FORTRAN compiler directive after the Type
Declaration Section. This directive references the preprocessor
generated include file (variable include file) during
compilation. Inserts one include FORTRAN compiler directive after the Type
Declaration Section. This directive references the preprocessor
generated include file during compilation:
ModifiedSourceFileName.sqlv.
Inserts a "Start SQL Preprocessor" comment before, and an "End
SQL Preprocessor" comment after code that it modifies.
Places any comment you placed after an embedded command
on the line following the last line generated for the embedded
command. Note, for example, that the comment following the
INCLUDE SQLCA command in the source file (refer to Figure 2-6 “Program forex2”) is in the same column, but on a different line in
the modified source file (refer to Figure 2-7 “Modified Source File for Program forex2”).
In full preprocessing mode, the preprocessor also:
Generates a FORTRAN COMMON BLOCK declaration of SQLCA following
the EXEC SQL INCLUDE SQLCA command.
Generates FORTRAN statements providing conditional instructions
following SQL commands encountered after one of the following
SQL commands: WHENEVER SQLERROR, WHENEVER SQLWARNING, and
WHENEVER NOT FOUND.
Generates FORTRAN statements that call ALLBASE/SQL external
procedures at runtime. These calls reference the module stored
by the preprocessor in the DBEnvironment for execution at
runtime. Variables used by these external calls are defined in
the variable declaration include file.
Inserts a "Start Inserted Statements" comment before generated
information.
| | | |  | CAUTION: Although you can access the modified source file and the
variable declaration file with an editor, you should
never change the information generated by the FORTRAN preprocessor.
Your DBEnvironment or other files on the system could be damaged
at runtime if preprocessor generated statements are altered.
| | | | |
If you change non-preprocessor generated statements in the
modified source file, make the changes to the source file,
re-preprocess the source file, and re-compile the output files
before putting the application program into production.
The following modified source file is the result of
preprocessing program forex2 (shown previously).
Figure 2-7 Modified Source File for Program forex2
C**** Start SQL Preprocessor ****
$ALIAS SQLXCNHF = 'SQLXCNHF' PASCAL \
$ (%REF,%REF,%VAL,%VAL)
$ALIAS SQLXCO = 'SQLXCO' PASCAL \
$ (%REF,%VAL,%REF)
$ALIAS SQLXEXIF = 'SQLXEXIF' PASCAL \
$ (%REF,%REF,%VAL)
$ALIAS SQLXEXUF = 'SQLXEXUF' PASCAL \
$ (%REF,%REF,%VAL,%REF,%VAL,%VAL,%REF,%VAL)
$ALIAS SQLXFE = 'SQLXFE' PASCAL \
$ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL,%VAL)
$ALIAS SQLXID = 'SQLXID' PASCAL \
$ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL)
$ALIAS SQLXOPKF = 'SQLXOPKF' PASCAL \
$ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL)
$ALIAS SQLXPLNF = 'SQLXPLNF' PASCAL \
$ (%REF,%REF,%VAL,%VAL)
$ALIAS SQLXPREF = 'SQLXPREF' PASCAL \
$ (%REF,%REF,%VAL,%REF,%VAL)
$ALIAS SQLXSECF = 'SQLXSECF' PASCAL \
$ (%REF,%REF,%REF,%VAL)
$ALIAS SQLXST = 'SQLXST' PASCAL \
$ (%REF)
$ALIAS SQLXSVPF = 'SQLXSVPF' PASCAL \
$ (%REF,%VAL,%REF,%REF)
C**** End SQL Preprocessor ****
PROGRAM forex2
C ********************************************************
C * This program illustrates the use of SQL's SELECT *
C * command to retrieve one row or tuple of data at *
C * a time. This program executes a BEGIN WORK command *
C * before the SELECT command, and a COMMIT WORK command *
C * after executing the SELECT command. An indicator *
C * variable is also used for SalesPrice. *
C ********************************************************
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C (* Begin SQL Communication Area *)
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
CHARACTER Done
CHARACTER Abort
INTEGER MultipleRows
INTEGER Deadlock
CHARACTER*16 Response
C ****************************************************
C * Data Type Conversions : *
C * Character = SQL Char(1) *
C * Character*n = SQL Char(n) *
C * Character*n = SQL VarChar *
C * Double Precision = SQL Float *
C * Double Precision = SQL Decimal *
C * Integer = SQL Integer *
C * Integer*2 = SQL SmallInt *
C ****************************************************
C
C (* Begin Host Variable Declarations *)
C
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
INTEGER*2 SalesPriceInd
C SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C
C (* End Host Variable Declarations *)
C (* Beginning of the Main Program *)
C
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
WRITE (*,*) CHAR(27), 'U'
WRITE (*,*) 'Program to SELECT specified rows from the Parts Table
1 -- forex2'
WRITE (*,*) ' '
WRITE (*,*) 'Event List:'
WRITE (*,*) ' CONNECT TO ../sampledb/PartsDBE'
WRITE (*,*) ' BEGIN WORK'
WRITE (*,*) ' SELECT specified row from the Parts table until use
1r enters a "/"'
WRITE (*,*) ' COMMIT WORK'
WRITE (*,*) ' RELEASE ../sampledb/PartsDBE'
C
CALL ConnectDBE
CALL QueryTable
CALL ReleaseDBE
C
STOP
END
C
C (* Beginning of the Sub-Routines *)
C
SUBROUTINE ConnectDBE
C (* Subroutine to Connect to ../sampledb/PartsDBE *)
C
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C (* Begin Host Variable Declarations *)
C
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR GOTO 500
C
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
WRITE (*,*) ' '
WRITE (*,*) 'CONNECT TO ../sampledb/PartsDBE'
C**** Start SQL Preprocessor ****
C EXEC SQL CONNECT TO '../sampledb/PartsDBE'
C**** Start Inserted Statements ****
CALL SQLXCO(SQLCAID,264,'00AE00002E2E2F73616D706C6564622F506172747
1344424520202020202020202020202020202020202020202020202020202020202
2020202020202020202020202020202020202020202020202020202020202020202
3020202020202020202020202020202020202020202020202020202020202020202
40202020202020202020202020')
IF (SQLCODE .LT. 0) THEN
GO TO 500
END IF
C**** End SQL Preprocessor ****
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
CALL ReleaseDBE
600 RETURN
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR CONTINUE
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
END
C (* End of ConnectDBE Subroutine *)
SUBROUTINE BeginTransaction
C (* Subroutine to Begin Work *)
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C (* Begin Host Variable Declarations *)
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR GOTO 500
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
WRITE (*,*) 'BEGIN WORK'
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN WORK
C**** Start Inserted Statements ****
CALL SQLXCO(SQLCAID,16,'00A6007F00110061')
IF (SQLCODE .LT. 0) THEN
GO TO 500
END IF
C**** End SQL Preprocessor ****
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
CALL ReleaseDBE
C
600 RETURN
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR CONTINUE
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
END
C (* End BeginTransaction Subroutine *)
C
SUBROUTINE EndTransaction
C (* Subroutine to Commit Work *)
C
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C (* Begin SQL Communication Area *)
C (* Begin Host Variable Declarations *)
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR GOTO 500
C
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
WRITE (*,*) 'COMMIT WORK'
C**** Start SQL Preprocessor ****
C EXEC SQL COMMIT WORK
C**** Start Inserted Statements ****
CALL SQLXCO(SQLCAID,8,'00A10000')
IF (SQLCODE .LT. 0) THEN
GO TO 500
END IF
C**** End SQL Preprocessor ****
GOTO 600
500 CALL SQLStatusCheck
CALL ReleaseDBE
600 RETURN
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR CONTINUE
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
END
C (* End EndTransaction Subroutine *)
C
SUBROUTINE ReleaseDBE
C (* Subroutine to Release ../sampledb/PartsDBE *)
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C (* Begin SQL Communication Area *)
C (* Begin Host Variable Declarations *)
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR GOTO 500
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
WRITE (*,*) 'RELEASE ../sampledb/PartsDBE'
C**** Start SQL Preprocessor ****
C EXEC SQL RELEASE
C**** Start Inserted Statements ****
CALL SQLXCO(SQLCAID,56,'00B200002020202020202020202020202020202020
1202020FFFFFFFF')
IF (SQLCODE .LT. 0) THEN
GO TO 500
END IF
C**** End SQL Preprocessor ****
GOTO 600
500 CALL SQLStatusCheck
CALL EndTransaction
600 RETURN
C**** Start SQL Preprocessor ****
C EXEC SQL WHENEVER SQLERROR CONTINUE
C**** Start Inserted Statements ****
C**** End SQL Preprocessor ****
END
C (* End ReleaseDBE Subroutine *)
SUBROUTINE DisplayRow (PartNumber,PartName,SalesPrice,
1SalesPriceInd)
C (* Subroutine to Display a Selected Row *)
C
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C (* Begin Host Variable Declarations *)
C
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
INTEGER*2 SalesPriceInd
C SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION}}
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
WRITE(6,100) PartNumber
WRITE(6,110) PartName
IF (SalesPriceInd .LT. 0) THEN
WRITE (*,*) 'Sales Price is NULL'
ELSE
WRITE(6,120) SalesPrice
ENDIF
WRITE (*,*) 'Was retrieved from the PurchDB.Parts table!'
100 FORMAT(' Part Number: ',A16)
110 FORMAT(' Part Name: ',A30)
120 FORMAT(' SalesPrice: ',F10.2)
C
RETURN
END
C (* End DisplayRow Subroutine *)
C
SUBROUTINE SQLStatusCheck
C (* Subroutine to Check the Status of DeadLocks *)
C
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
LOGICAL Abort
INTEGER DeadLock
C (* Begin Host Variable Declarations *)
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
CHARACTER*80 SQLMessage
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C (* End Host Variable Declarations *)
C
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
DeadLock = -14024
Abort = .TRUE.
WRITE (*,*) Abort
IF (SQLCode .LT. DeadLock) THEN
Abort = .TRUE.
ELSE
Abort = .FALSE.
ENDIF
DO WHILE (SQLCode .NE. 0)
C**** Start SQL Preprocessor ****
C EXEC SQL SQLExplain :SQLMessage
C**** Start Inserted Statements ****
CALL SQLXPLNF(SQLCAID,SQLTMP,80,0)
READ(SQLTMP,'(A80)')SQLMessage
C**** End SQL Preprocessor ****
WRITE (*,*) SQLMessage
END DO
IF (Abort) THEN
CALL EndTransaction
CALL ReleaseDBE
ENDIF
RETURN
END
C (* End of SQLStatusCheck Subroutine *)
C
SUBROUTINE QueryTable
C (* Subroutine to Query the Parts table *)
C**** Start SQL Preprocessor ****
C EXEC SQL INCLUDE SQLCA
C
C (* Begin SQL Communication Area *)
C
C**** Start Inserted Statements ****
CHARACTER SQLCAID*8
INTEGER SQLCABC
INTEGER SQLCODE
INTEGER SQLERRL
CHARACTER SQLERRM*256
CHARACTER SQLERRP*8
INTEGER SQLERRD(6)
CHARACTER SQLWARN(0:7)
INTEGER SQLEXT(2)
CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,
1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7
EQUIVALENCE (SQLWARN0,SQLWARN(0)),
1 (SQLWARN1,SQLWARN(1)),
2 (SQLWARN2,SQLWARN(2)),
3 (SQLWARN3,SQLWARN(3)),
4 (SQLWARN4,SQLWARN(4)),
5 (SQLWARN5,SQLWARN(5)),
6 (SQLWARN6,SQLWARN(6)),
7 (SQLWARN7,SQLWARN(7))
COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,
1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT
C**** End SQL Preprocessor ****
INTEGER DeadLock
INTEGER MultipleRows
INTEGER NotFound
INTEGER OK
C (* Begin Host Variable Declarations *)
C**** Start SQL Preprocessor ****
C EXEC SQL BEGIN DECLARE SECTION
C**** End SQL Preprocessor ****
CHARACTER*16 PartNumber
CHARACTER*30 PartName
DOUBLE PRECISION SalesPrice
INTEGER*2 SalesPriceInd
C SQLIND SalesPriceInd
CHARACTER*80 SQLMessage
C**** Start SQL Preprocessor ****
C EXEC SQL END DECLARE SECTION
C (* End Host Variable Declarations *)
C**** End SQL Preprocessor ****
INCLUDE 'forex2.sqlv'
MultipleRows = -10002
DeadLock = -14024
NotFound = 100
OK = 0
DO WHILE (PartNumber .NE. '/')
WRITE(6,100)
100 FORMAT(/$,' Enter PartNumber from Parts table or / to STOP > ')
READ(5,110) PartNumber
110 FORMAT (A16)
C
IF (PartNumber .NE. '/' ) THEN
C
CALL BeginTransaction
WRITE(*,*) 'SELECT PartNumber, PartName, SalesPrice'
C
C**** Start SQL Preprocessor ****
C EXEC SQL SELECT PartNumber, PartName, SalesPrice
C 1 INTO :PartNumber,
C 2 :PartName,
C 3 :SalesPrice :SalesPriceInd
C 4 FROM PurchDB.Parts
C 5 WHERE PartNumber = :PartNumber
C
C**** Start Inserted Statements ****
WRITE(SQLTMP,'(A16)')PartNumber
CALL SQLXFE(SQLCAID,SQLOWN,SQLMDN,1,SQLTMP,16,56,1)
IF (SQLCODE .EQ. 0) THEN
READ(SQLTMP,'(A16,A30,A8,A2)')PartNumber,PartName,SalesPrice,Sales
1PriceInd
ELSE
END IF
C**** End SQL Preprocessor ****
IF ((SQLWarn(3) .EQ. 'w') .OR. (SQLWarn(3) .EQ. 'W')) THEN
WRITE (*,*) 'SQL WARNING has occured. The following row'
WRITE (*,*) 'of data may not be valid!'
CALL DisplayRow (PartNumber,PartName,SalesPrice,
1 SalesPriceInd)
ENDIF
C
IF (SQLCode .EQ. OK) THEN
CALL DisplayRow (PartNumber, PartName, SalesPrice)
ELSEIF (SQLCode .EQ. NotFound) THEN
WRITE (*,*) 'Row not found!'
ELSEIF (SQLCode .EQ. MultipleRows) THEN
WRITE(*,*) 'WARNING: More than one row qualifies!'
ELSE
CALL SQLStatusCheck
ENDIF
CALL EndTransaction
ENDIF
END DO
RETURN
END
C (* End QueryTable Subroutine *)
|
Variable Declaration Include File | |
ModifiedSourceFileName.sqlv, the preprocessor-creator
include file, contains delcarations for variables referenced in
preprocessor-generated statements in the modified source file.
Figure 2-8 illustrates the variable declaration include file
that corresponds to the modified source file in Figure 2-7.
Note in Figure 2-7 that just after inserting the EXEC SQL END
DECLARE SECTION declaration into the modified source file,
the preprocessor inserted the following FORTRAN compiler
directive to reference the variable declaration include file:
This directive is always inserted after the Host Variable
Type Declaration Section. Figure 2-8 Sample Variable Declaration Include File
C temporary area
CHARACTER*112 SQLTMP
C ownership information
CHARACTER*20 SQLOWN
CHARACTER*20 SQLMDN
DATA SQLOWN /'BILL '/
DATA SQLMDN /'FOREX2 '/
C
|
ALLBASE/SQL Message File | |
Messages placed in sqlmsg come from the ALLBASE/SQL message
catalog. The default catalog is
/usr/lib/nls/n-computer/hpsqlcat. For native language users,
the name of the catalog is /usr/lib/nls/$LANG/hpsqlcat, where
$LANG is the current language. If this catalog is not
available, ALLBASE/SQL uses the default instead.
Sqlmsg messages contain four parts: A banner:
MON, JUL 10, 1991, 4:48 PM
HP36217-02A.E1.00 FORTRAN preprocessor/9000 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,1984,1985,
1986,1987,1988,1989,1990,1991. ALL RIGHTS RESERVED.
|
| | | |  | 300/400:
MON, JUL 10, 1991, 4:48 PM
HP79725A.E1.00 FORTRAN preprocessor/300 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,
1984,1985,1986,1987,1988,1989,1990,1991. ALL RIGHTS RESERVED.
|
| | | | |
A summary of the preprocessor invocation conditions:
DBEnvironment = ../sampledb/PartsDBE
Module Name = FOREX2
|
Warnings and errors encountered during preprocessing:
SELECT PartNumber, PartName, SalesPrice INTO :PartNumber,
:PartName, :SalesPrice, :SalesPriceIND FROM PurchDB.Parts
WHERE PartNumber = :PartNumber;
****** ALLBASE/SQL errors (DBERR 10977)
****** in SQL statement ending in line 133
*** Syntax error. (DBERR 1001)
There are errors. No sections stored. (DBERR 10114)
|
A summary of the results of preprocessing:
1 ERRORS 0 WARNINGS
END OF PREPROCESSING.
|
By default, both the banner and the summary of preprocessing
output is echoed to the standard output, the terminal, by
default. In addition, all sqlmsg messages are written to
the file named sqlmsg. As illustrated om Figure 2-9, a line number is often
provided in sqlmsg after the error or warning message. This
line number references the last line in the source file
containing the command in question. A message accompanied
by a number may also appear. You can refer to the
ALLBASE/SQL Message Manual for additional information
on the exception condition when these numbered messages appear.
Figure 2-9 Sample sqlmsg Showing Errors
$ more sqlmsg
MON, JUL 10, 1991, 4:48 PM
HP36217-02A.E1.00 FORTRAN Preprocessor/9000 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,1984,1985,1986,
1987,1988,1989,1990,1991. ALL RIGHTS RESERVED.
DBEnvironment = ../sampledb/PartsDBE
Module Name = FOREX2
SELECT PartNumber, PartName, SalesPrice INTO :PartNumber, :PartName
:SalesPrice :SalesPriceInd FROM PurchDB.Parts WHERE PartNumber =
:PartNumber;
****** ALLBASE/SQL errors (DBERR 10977)
****** in SQL statement ending in line 133
*** Syntax error. (DBERR 1001)
There are errors. No sections stored. (DBERR 10114)
1 ERRORS 0 WARNINGS
END OF PREPROCESSING.
$
|
As Figure 2-10 “Sample sqlmsg Showing Warning” illustrates, the preprocessor can terminate with
the warning message:
****** ALLBASE/SQL warnings. (DBWARN 10602)
|
This happens when the name of an object in the source file
does not match the name of any object in the system catalog.
Although a section is stored for the syntactically correct
but semantically incorrent command, the section is marked
as invalid and will not execute at run time if it cannot
be validated. Refer to the ALLBASE/SQL Reference Manual
for a description of how to delete a stored section.
Figure 2-10 Sample sqlmsg Showing Warning
$ more sqlmsg
MON, JUL 10, 1991, 4:48 PM
HP36217-02A.E1.00 FORTRAN Preprocessor/9000 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,1984,1985,1986,
1987,1988,1989,1990,1991. ALL RIGHTS RESERVED.
DBEnvironment = PartsDBE
Module Name = FOREX2
SELECT PARNUMBER, PartName, SalesPrice INTO :PartNumber, :PartName
:SalesPrice :SalesPriceInd FROM PurchDB.Parts WHERE PartNumber =
:PartNumber;
****** ALLBASE/SQL warnings. (DBWARN 10602)
****** in SQL statement ending in line 133
*** Column PARNUMBER not found. (DBERR 2211)
1 Sections stored in DBEnvironment.
0 ERRORS 1 WARNINGS
END OF PREPROCESSING
$
|
Installable Module File | |
When the FORTRAN preprocessor stores a module in the system
catalog of a DBEnvironment at preprocessing time, it places a
copy of the module in an installable module file.
The name of this file by default is ModifiedSourceFileName.sqlm. If at preprocessing time
ModifiedSourceFileName.sqlm already exists. it is
overwritten with the new module. The module in this file can be installed into a DBEnvironment
different from the DBEnvironment accessed at preprocessing
time by using the INSTALL command in ISQL. For example:
$ psqlfor DBEnvironmentName -i SourceFileName.sql -d
|
If you want to preserve the SourceModifiedFileName.sqlm file after
preprocessing, you must rename ModifiedSourceFileName.sqlm
so it is not over written the next time the preprocessor is
invoked to preprocess the same source code:
$ mv ModifiedSourceFileName.sqlm mymod.sqlmod
|
Before invoking ISQL to install the module contained in
ModifiedSourceFileName.sqlm, you may have to transport it
and its related program file to the machine containing the
target DBEnvironment. After all the files are restored on
the target machine you invoke ISQL on the machine containing
the target DBEnvironment.
In order to install the module, you need CONNECT or DBA
authority in the target DBEnvironment:
isql=> CONNECT TO '../sampledb/PartsDBE';
isql=> INSTALL;
File name> mymod.sqlmod;
Name of module in this file: BILL.FOREX2
Number of sections installed: 1
COMMIT WORK to save to DBEnvironment.
isql=> COMMIT WORK;
isql=>
|
Stored Sections | |
In full preprocessing mode, the preprocessor stores a section
for each embedded command except:
BEGIN DECLARE SECTION INCLUDE
BEGIN WORK OPEN
CLOSE PREPARE
COMMIT WORK RELEASE
CONNECT ROLLBACK WORK
DECLARE CURSOR SAVEPOINT
DELETE WHERE CURRENT START DBE
DESCRIBE STOP DBE
END DECLARE SECTION SQLEXPLAIN
EXECUTE TERMINATE USER
EXECUTE IMMEDIATE UPDATE WHERE CURRENT
WHENEVER
|
The commands listed above either require no authorization to
execute or are executed based on information contained in the
compilable preprocessor output files.
When the preprocessor stores a section, it actually stores what
are known as an input tree and a run tree. The input tree
consists of an uncompiled command. The run tree is the compiled, executable form of the
command.
If at runtime a section is valid, ALLBASE/SQL executes the
appropriate run tree when the SQL command is encountered in the
application program. If a section is invalid, ALLBASE/SQL
determines whether the objects referenced in the sections exist
and whether current authorization criteria are satisfied. When
an invalid section can be validated, ALLBASE/SQL dynamically
recompiles the input tree to create an executable run tree and
executes the command. When a section cannot be validated, the
command is not executed, and an error condition is returned to
the program.
There are three types of sections:
Sections for executing the SELECT command associated with a
DECLARE CURSOR command.
Sections for executing the SELECT command associated with a
CREATE VIEW command.
Sections for all other commands for which the preprocessor
stores a section.
Figure 2-11 “Information in SYSTEM.SECTION on Stored Sections” illustrates the kind of information in the system
catalog that describes each type of stored section. The query
result illustrated was extracted from the system view named
SYSTEM.SECTION by using ISQL. The columns in Figure 2-11 “Information in SYSTEM.SECTION on Stored Sections”
have the following meanings:
NAME: This column contains the name of the module to which a
section belongs. You specify a module name when you invoke the
preprocessor; the module name is by default the program name
from the PROGRAM Statement. If you are supplying a module name
in a language other than n-computer (ASCII), be sure it is in the same language as that of the
DBEnvironment.
OWNER: This column identifies the owner of the module. You
specify an owner name when you invoke the preprocessor; the
owner name is by default the userid associated with the
preprocessing session. If you are supplying an owner name in a
native language other than n-computer (ASCII), be sure it is in the same language as that of the
DBEnvironment.
DBEFILESET: This column indicates the DBEFileSet with which
DBEFiles housing the section are associated.
SECTION: This column gives the section number. Each section
associated with a module is assigned a number by the
preprocessor as it parses the related SQL command at
preprocessing time.
TYPE: This column identifies the type of section:
1 = SELECT associated with a cursor.
2 = SELECT defining a view.
VALID: This column identifies whether a section is valid or
invalid:
Figure 2-11 Information in SYSTEM.SECTION on Stored Sections
isql=> SELECT NAME,OWNER,DBEFILESET,SECTION,TYPE,VALID FROM SYSTEM.SECTION;
------------------------------------------------------------
NAME |OWNER |DBEFILESET |SECTION |TYPE |VALID
-----------------|---------|-----------|--------|-----|-----
TABLE |SYSTEM |SYSTEM | 0 | 2| 0
COLUMN |SYSTEM |SYSTEM | 0 | 2| 0
INDEX |SYSTEM |SYSTEM | 0 | 2| 0
SECTION |SYSTEM |SYSTEM | 0 | 2| 0
DBEFILESET |SYSTEM |SYSTEM | 0 | 2| 0
DBEFILE |SYSTEM |SYSTEM | 0 | 2| 0
SPECAUTH |SYSTEM |SYSTEM | 0 | 2| 0
TABAUTH |SYSTEM |SYSTEM | 0 | 2| 0
COLAUTH |SYSTEM |SYSTEM | 0 | 2| 0
MODAUTH |SYSTEM |SYSTEM | 0 | 2| 0
GROUP |SYSTEM |SYSTEM | 0 | 2| 0
VIEWDEF |SYSTEM |SYSTEM | 0 | 2| 0
HASH |SYSTEM |SYSTEM | 0 | 2| 0
CONSTRAINT |SYSTEM |SYSTEM | 0 | 2| 0
CONSTRAINTCOL |SYSTEM |SYSTEM | 0 | 2| 0
CONSTRAINTINDEX |SYSTEM |SYSTEM | 0 | 2| 0
COLDEFAULT |SYSTEM |SYSTEM | 0 | 2| 0
TEMPSPACE |SYSTEM |SYSTEM | 0 | 2| 0
PARTINFO |PURCHDB |SYSTEM | 0 | 2| 0
VENDORSTATISTICS |PURCHDB |SYSTEM | 0 | 2| 0
FEXP01D2 |BILL |SYSTEM | 1 | 0| 1
FEXP11 |BILL |SYSTEM | 1 | 1| 1
FEXP11 |BILL |SYSTEM | 2 | 0| 1
|
The first eighteen rows in this query result describe the sections
stored for the system views. The next two rows describe the two
views in the sample database: PurchDB.PartInfo and
PurchDB.VendorStatistics. Views are always stored as
invalid sections, because the run tree is always generated at
run time. The remaining rows describe sections associated with two
preprocessed programs. FEXP01D2 contains only one section, for executing the SELECT command in
the program illustrated in Figure 2-6 “Program forex2”. FEXP11
contains two sections, one for executing the SELECT command
associated with a DECLARE CURSOR command and one for executing a
FETCH command.
Stored sections remain in the system catalog until they are
deleted with the DROP MODULE command or by invoking the
preprocessor with the DROP option:
isql=> DROP MODULE forex2;
or
$ psqlfor ../sampledb/PartsDBE -m forex -i forex2.sql -d
|
Stored sections are marked invalid when:
The UPDATE STATISTICS command is executed.
Tables accessed in the program are dropped, altered, or assigned
new owners.
Indexes or DBEFileSets related to tables accessed in the program
are changed.
Module owner authorization changes occur that affect the
execution of embedded commands.
When an invalid section is validated at run time, the validated
section is committed when the program issues a COMMIT WORK
command. If a COMMIT WORK command is not executed, ALLBASE/SQL
must re-validate the section again the next time the program is
executed. For this reason, you should embed COMMIT WORK
commands following SELECT commands since COMMIT WORK may be
needed to commit a section, even when data is not changed by a
program. |
