KSAM FILE SIZE

KEY BLOCK SIZE

Key block size can affect the complexity of the tree structure and this complexity can affect access time. In order to understand the relation between block size and access time, consider the following general rules:

From this it would follow that in order to reduce access time, you should define large blocks. This is true only up to a point. Depending on the total number of key values expected in the file, a large block size may result in a great deal of unused space in each block. Also, the blocking factor may result in unused disc space since all blocks must start on sector boundaries.

KSAM provides a default blocking factor that produces a block with 1024(1K) words. This size has proved to be efficient for many files. You may, however, override this default blocking by specifying a value in the keyblocking parameter of the ;KEY= option in the BUILD command, or in word 19 of the FOPEN ksamparam parameter. Note that any blocking factor you specify is a minimum value since KSAM may increase the blocking factor so that the least amount of disc space is wasted.

After creating a KSAM file, you can use the VERIFY command of KSAMUTIL to determine the number of levels needed by the KSAM file. The VERIFY listing will also tell you the actual blocking factor used in creating the file so you can find out whether your specified blocking factor has been increased.

CALCULATING KEY BLOCK SIZE.

Key block size is based on a number of factors:

• The key size is bytes (KS)

• The key entry size in words (ES).

• The number of key entries per block, the blocking factor (BF).

Once the block size is determined, the number of sectors needed to hold one block is calculated. If this value (NB) wastes sector space, KSAM adjusts the blocking factor to produce a block size that uses the least number of sectors by filling each sector as completely as possible. Note that when KSAM uses the default block size of 1024, it calculates a blocking factor by the same method.

The following steps show how KSAM determines block size based on a specified minimum blocking factor.

	NOTE: The notation |_ _| means round down the result of the enclosed algorithm to the next whole number; | | means round it up.

1. Calculate the entry size (ES) in words from the key size (KS) in bytes, and then add two words for each pointer in the key entry (see Figure B-6 “Key Entry Block Structure”). KSAM uses the following algorithm to perform this calculation:

   ES = [urcrop](KS+I)/2[ulcrop] + 4

2. If the blocking factor (BF) was specified as an odd number, KSAM issues an error message. Otherwise, it uses the specified blocking factor to continue the calculation of block size.

3. Determine blocksize (BS) by multiplying the key entry size by the blocking factor and adding 5 words. (The five words are for the three words of control information at the beginning of each block, plus two words for the final pointer in the block. See Figure B-6 “Key Entry Block Structure”). KSAM uses the algorithm:

   BS = (ES x BF) + 5

   Since blocks always start on sector boundaries, this calculated block size may leave a lot of unused sector space. The following steps show how KSAM determines the most efficient block size and, if this size differs from the size calculated from the specified blocking factor, how KSAM adjusts this blocking factor upwards to produce the optimum block size.

4. Determine the number of sectors required to hold the block at its calculated size. If the result is not a whole number, round it up to the nearest whole sector. KSAM determines the number of sectors per block (NB) as follows:

   NB = [ulcrop] BS/128 [urcrop]

5. Multiply the number of sectors per block by 128 to determine the optimum block size:

   BS = NB x 128

6. If the optimum block size calculated in step 5 differs from the block size calculated in step 3, or if the default block size 1024 is used, KSAM adjusts the blocking factor to one that produces the optimum block size. It uses the following algorithm to determine the number of key entries that fit in the block and, if this is an odd number, reduces it by one. (Blocking factor must be an even number.)

   BF = F [ulcrop] (|_(BS-5)/ES _| -1)/2 [urcrop] x 2

KEY FILE SIZE

KSAM uses the blocking factor and the number of sectors per block to detenrmine the maximum file size in sectors to allocate to the key file. In addition, KSAM needs to know the maximum number of key entries to expect, and the number of keys (primary and alternate) defined for the key file at creation.

The maximum number of key entries for each key may be specified in the numentries parameter of the KEYENTRIES= option of the BUILD command, or in the ksamparam parameter of FOPEN. However, this file limit is usually based on the maximum number of data records. This value is specited in the numrec parameter of the DISC= option of the BUlLD command, or in the filesize parameter of FOPEN. If not specified in either of these places, KSAM assumes a default file limit of 1024 key entries.

Since the number of records in the data file can be used to calculate the maximum number of keys for only one key, each additional key defined for the file causes the file sizes to be summed.

When key file size has been calculated, KSAM uses this value to allocate that number of sectors on disc to the key file whenever the file is opened.

Key file size is based on the following factors:

KSAM uses the following formula to determine key file size in sectors for a file with one key:

     FS = ([ulcrop] FL/BF [urcrop]x 2) x NB

This formula is derived through the following steps:

	NOTE: The file size (FS) calculated by the above algorithm does not include the two sectors required for control information.

If the file has only one key, add 2 to the file size (FS+2) to get the total file size. The value 2 represents the two sectors at the beginning of each key file containing control and key descriptor information.

If the key file has multiple keys, then the optimum block size of each key must be determined. The largest block size is then selected as the standard block size for all keys in the file (KSAM does not allow variable-length key blocks). Since the block size of some keys has changed, the blocking factor (BF) must be recalculated for these keys using the algorithm:

            BF = [ulcrop] (|_(BS-5)/ES_|-1)/2 [urcrop]x 2

A separate file size for each key is then calculated based on their various blocking factors. The total key file size is equal to the sum of all these file size (FS) values plus 2 for the two control sectors.

Figure B-8 “Formula to Determine File Space per Key” summarizes the steps KSAM uses to calculate file size for one key. Figure B-9 “Calculation of Total Key File Size with Two Keys” shows how KSAM calculates key file size for a file with two keys. Each key file size (FS) is calculated separately, and then the blocking factor and file size of the key with the smaller block size is recalculated.

For a file with one key, KSAM simply adds 2 sectors to the file size (FS) calculated for the single key.

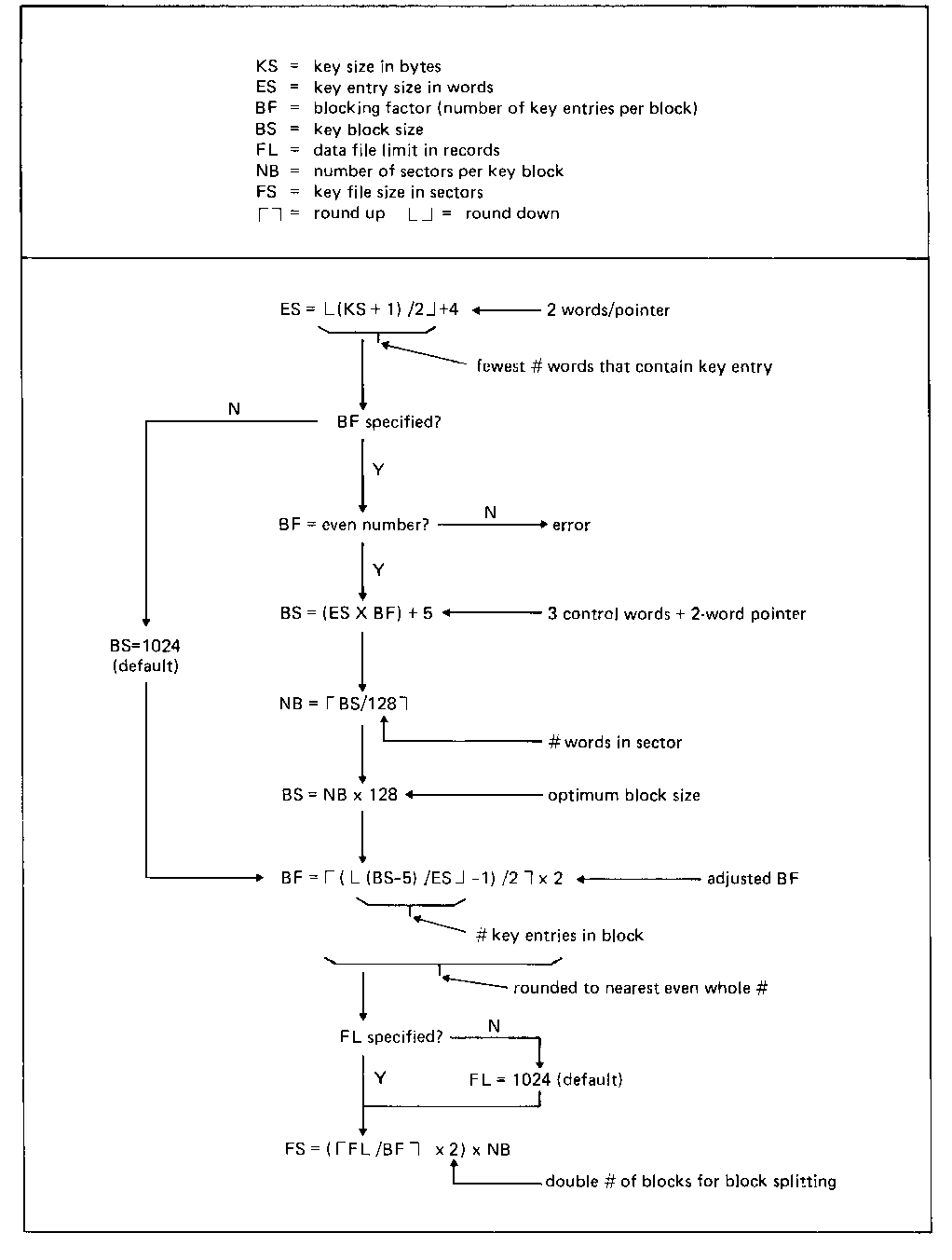

Figure B-8 Formula to Determine File Space per Key

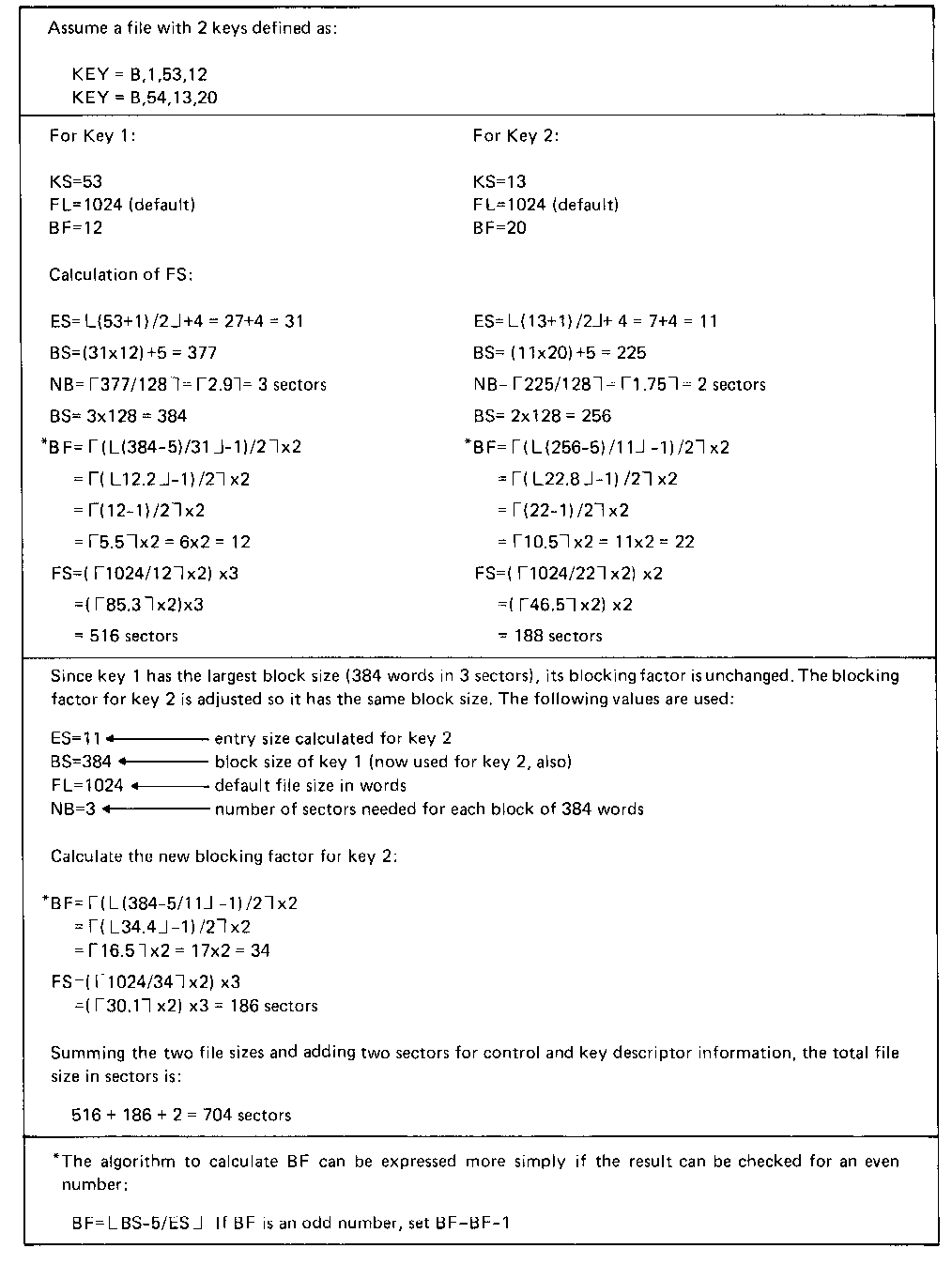

Figure B-9 Calculation of Total Key File Size with Two Keys
