HP SPT/XL User's Manual: Analysis Software

Transaction Defaults

This screen shows HP SPT/XL's estimation as to the transactions in the
monitored application program, based on the intrinsics your program
called directly.

To select a default to define a transaction, mark the intrinsics that
begin transactions, for example enter a 3.  An asterisk next to a number
(#) indicates the intrinsic is selected as one that begins a transaction.
To unmark an intrinsic, enter a minus sign and the number, for example
enter a -3.

Access this screen by selecting  Redefine Trans or respond YES to the
Define Transactions?  prompt on the Logfile Summary Information screen.

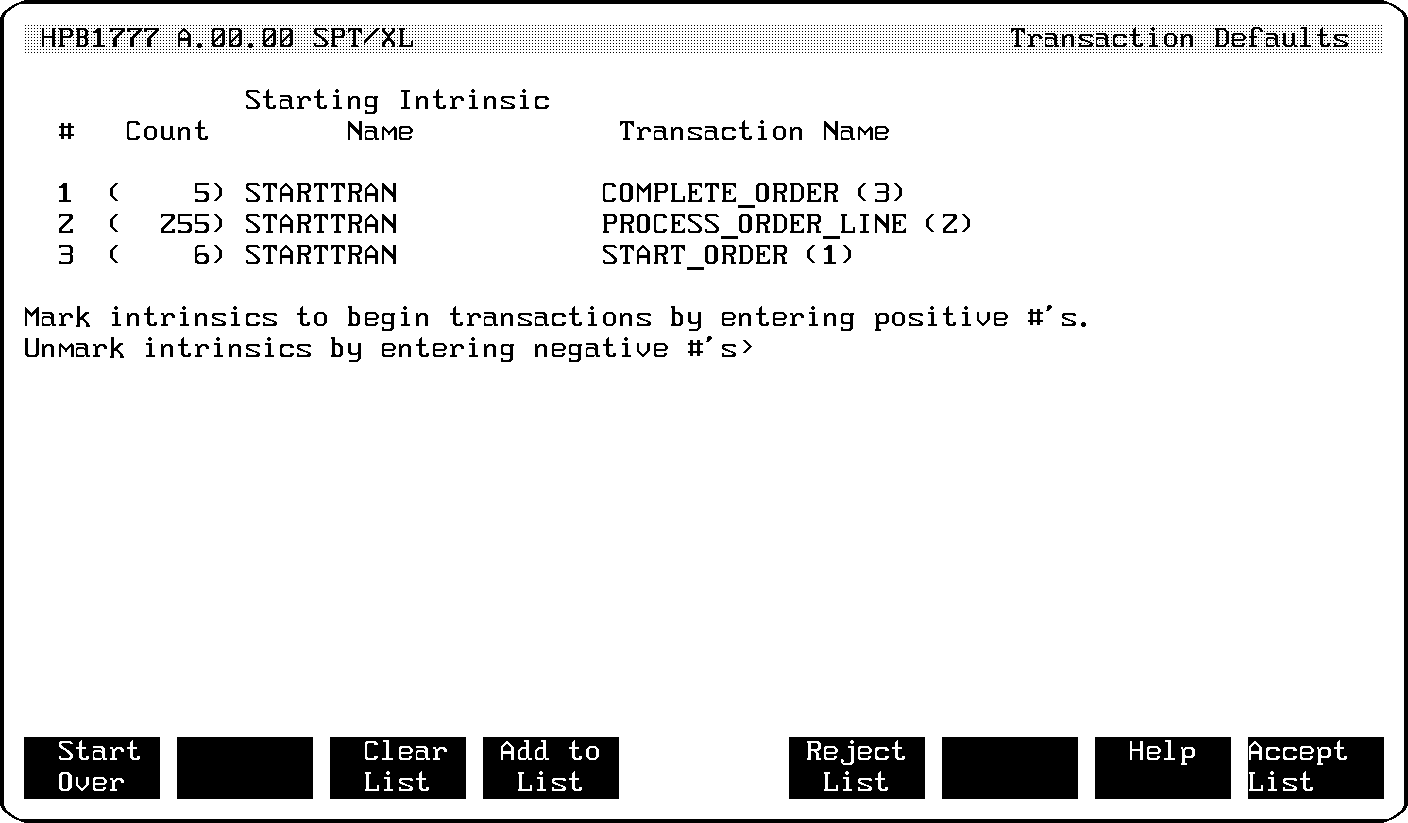

          Figure 5-21.  Transaction Defaults

Screen Definitions

Starting Intrinsic        Intrinsic that flagged the start of this
                          transaction.

Transaction Name          Transaction name from monitored program, or
                          defined by HP SPT/XL.

Mark procedures...        Add procedures by entering the starting
                          intrinsic number; remove procedures by entering
                          a minus sign, then the intrinsic number.
                          Numbers can be separated by commas.

 Start Over               Returns list to original defaults.

 Clear List               Clears all select asterisks from this screen.

 Add to List              Go to the Intrinsic Categories screen to add
                          transactions to those selected here.

 Reject List              Reject these transaction definitions and go to
                          Intrinsic Categories to start defining your own
                          transactions.

 Accept List              Accept these definitions and continue.
