Transaction CPU Time Histogram

This screen shows a histogram of CPU time per transaction for all
instances of the active transaction.

Access this screen by selecting  Individual Trans to display the
Individual Transaction Percentiles screen (provided there are more than a
few instances of transaction).  From this screen select  Histogrm.

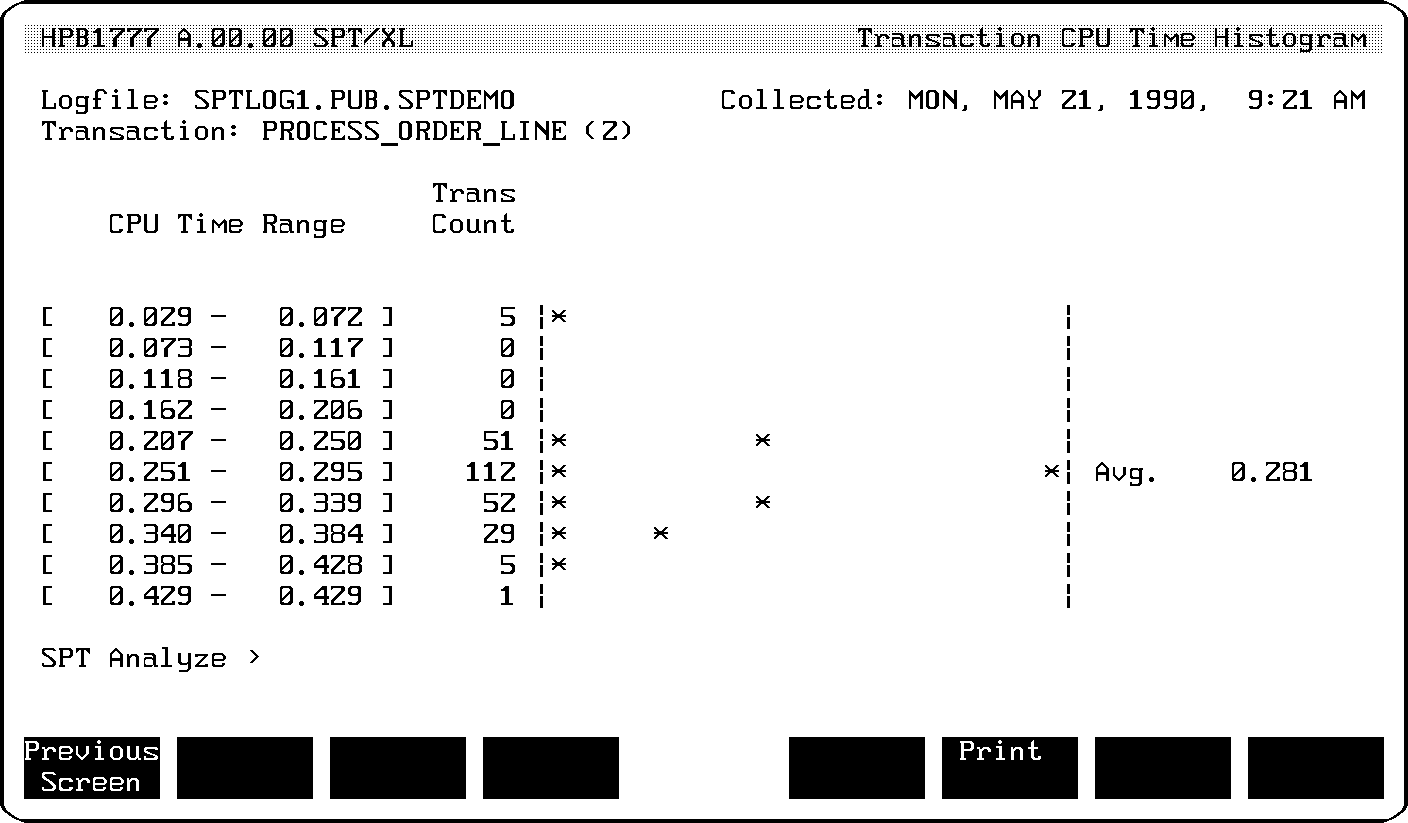

          Figure 5-19.  Transaction CPU Time Histogram

Screen Definitions

Trans Count               Number of transactions in this range.

Histogram                 Transaction count.

Avg.                      Average transaction CPU time.

 If Individual Transaction Percentiles screen is showing process time
instead of CPU time when you choose  Histogrm, you will see the
Transaction Process Time Histogram screen.

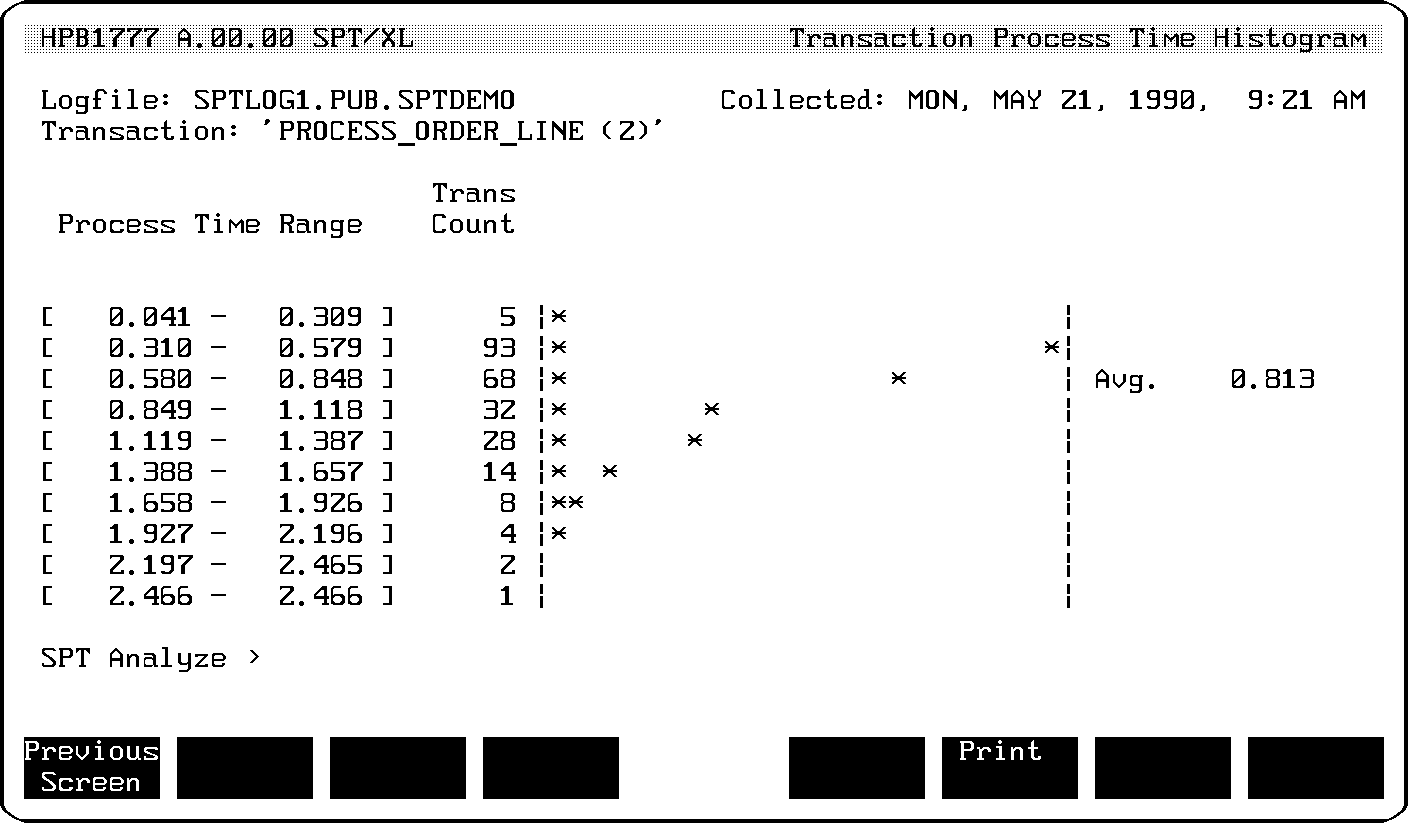

          Figure 5-20.  Transaction Process Time Histogram
