Transaction Definition

This screen lists all the intrinsics found in the category you selected
on the Intrinsic Categories screen.

To define a transaction, mark the intrinsics that begin transactions, for
example enter a 3.  An asterisk next to a number (#) indicates the
intrinsic is selected as one that begins a transaction.  To unmark an
intrinsic, enter a minus sign and the number, for example enter a -3.

Access this screen by selecting  Redefine Trans or respond YES to the
Define Transaction?  prompt on the Logfile Summary Information screen.
If this displays the Transaction Defaults screen, select  Add to List or
Reject List to display the Intrinsics Categories screen, then select a
category to display this screen.  If HP SPT/XL does not find enough
qualifying intrinsics, you will see the Intrinsic Categories screen
instead of the Transaction Defaults screen.

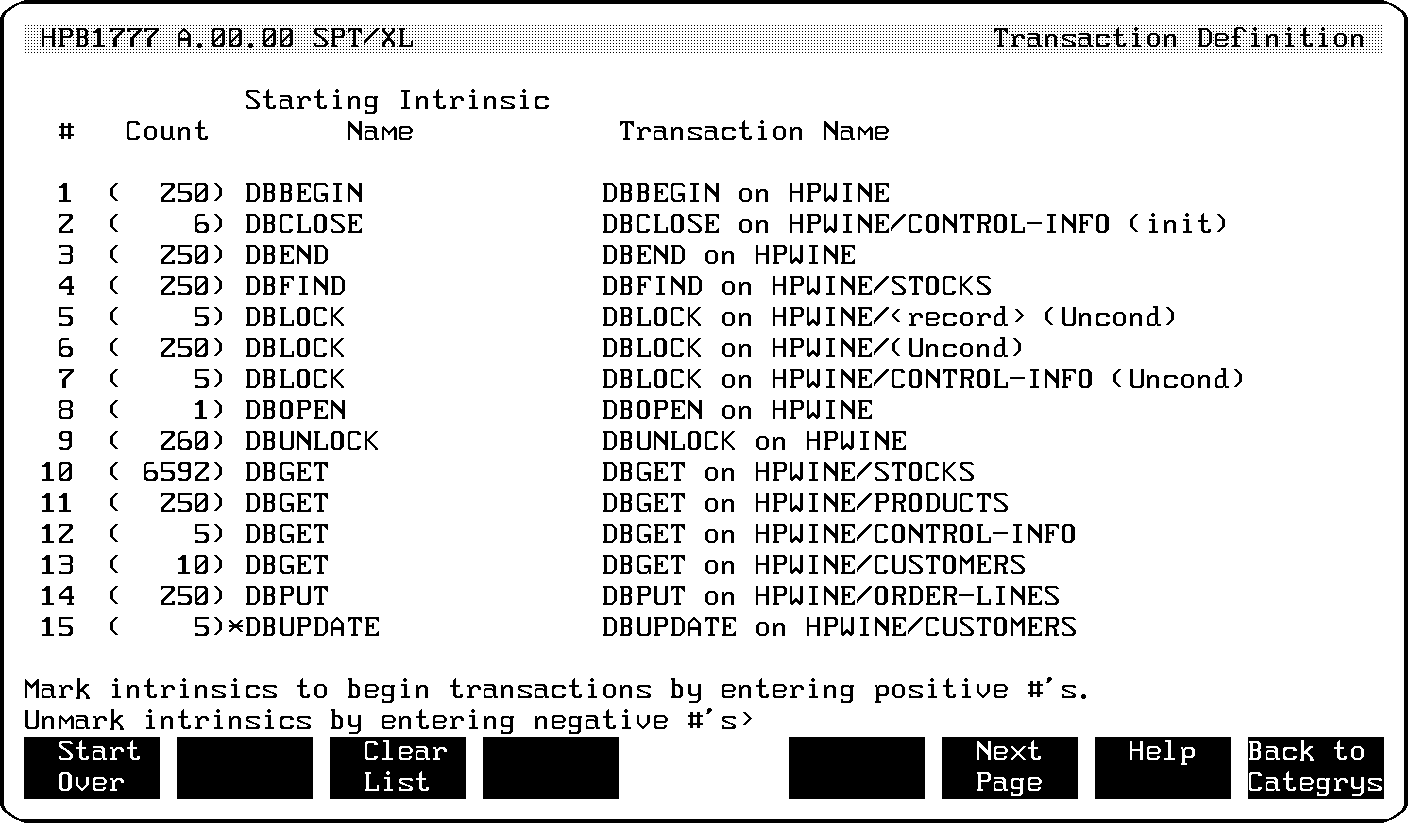

          Figure 5-22.  Transaction Definition

Screen Definitions

 Start Over               Clears * and returns to Intrinsic Categories
                          screen.

 Clear List               Clears all selected intrinsics (marked with *).

 Back to Categrys         Return to Intrinsic Categories screen to define
                          more transactions.
