HP SPT/XL User's Manual: Analysis Software

Summary TurboIMAGE Data Set Information

This screen shows summary TurboIMAGE data set accesses averaged over all
instances of the current transaction.

The data sets are listed with an index number to identify the data set to
HP SPT/XL and which may be used to display Detailed TurboIMAGE Data Set
Information.

Access this screen by selecting  DB Use to display the Summary TurboIMAGE
Database Information screen.  From this screen select  Detailed DB Use to
display the Detailed TurboIMAGE Database Information screen.  From this
screen select  Summary DSet Info.

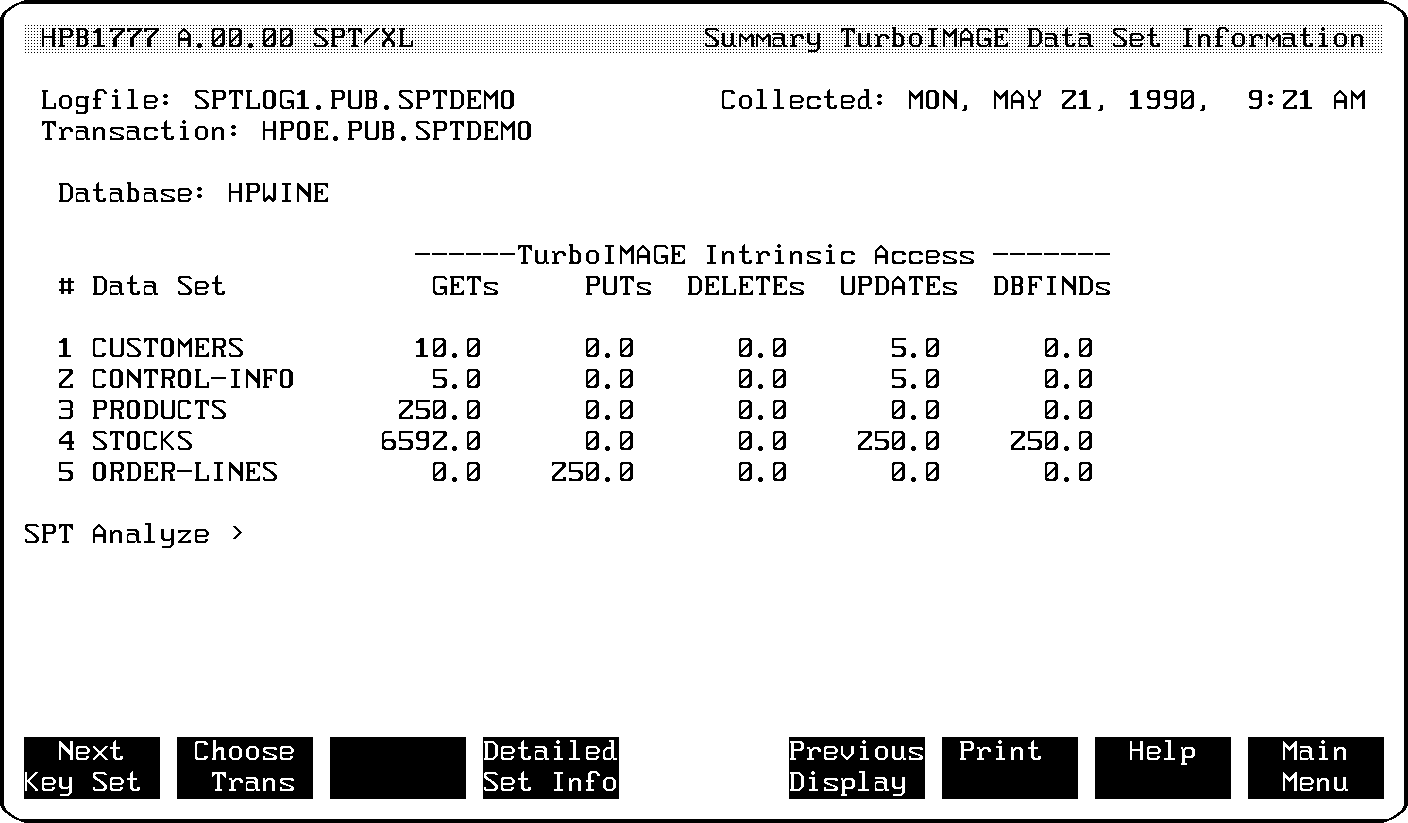

          Figure 5-18.  Summary TurboIMAGE Data Set Information

Screen Definitions

#                         Index number used to select a database for more
                          detailed review.

Database                  Active database.

TurboIMAGE Intrinsic      Average number of these intrinsics for all
Access                    instances of this transaction.

 Detailed Set Info        Prompts for data set number, goes to Detailed
                          TurboIMAGE Data Set Information screen.
