HP SPT/XL User's Manual: Analysis Software

Summary TurboIMAGE Database Information

This screen shows summary TurboIMAGE database accesses averaged over all
instances of the current transaction.

Each database accessed is listed with an index number used to identify
the database to HP SPT/XL and which may be used to display Detailed
TurboIMAGE Database Information.

Access this screen by selecting  DB Use.

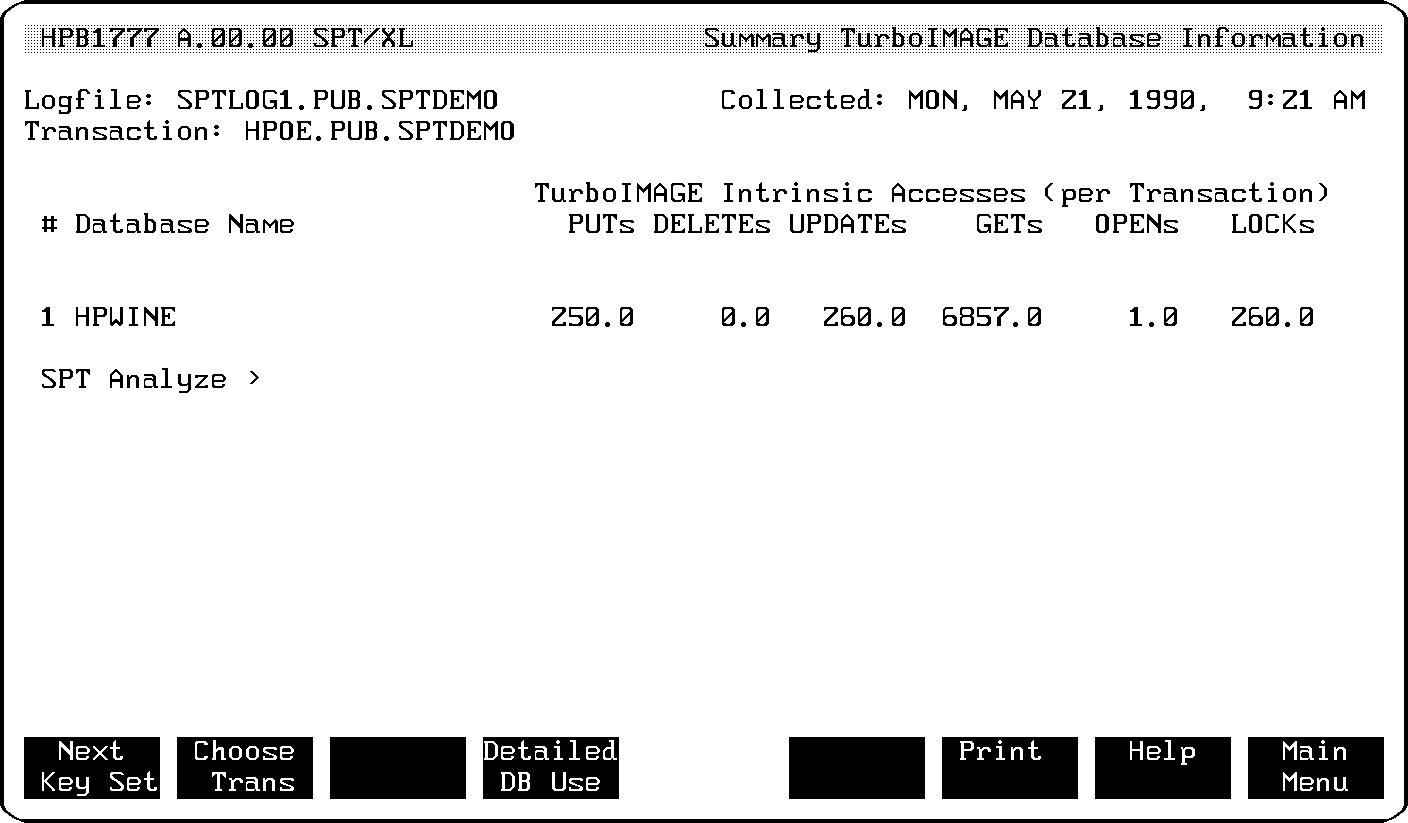

          Figure 5-17.  Summary TurboIMAGE Database Information

Screen Definitions

#                         Index number used to select a database for more
                          detailed review.

Database Name             TurboIMAGE databases accessed.

TurboIMAGE Intrinsic      Average number of these intrinsics for all
Accesses                  instances of this transaction.

 Detailed DB Use          Prompts for database number, goes to Detailed
                          TurboIMAGE Database Information screen.
