Detailed TurboIMAGE Database Information

This information about a specific database includes buffer use data and a
count of the intrinsics used to access the database during the current
transaction.

Access this screen by selecting  DB Use to display the Summary TurboIMAGE
Database Information screen.  Select  Detailed DB Use and enter a
database number.

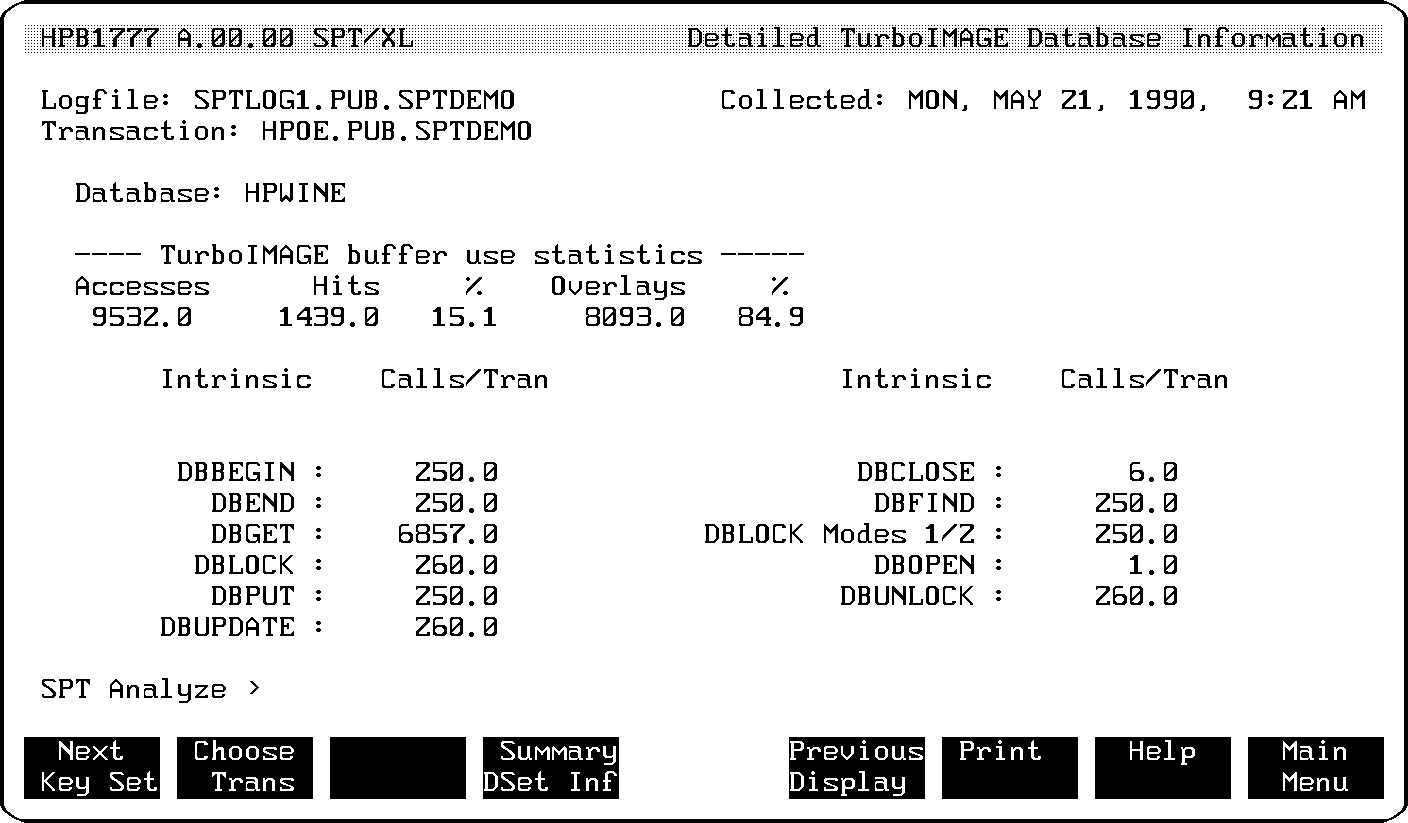

          Figure 5-6.  Detailed TurboIMAGE Database Information

Screen Definitions

Database                  The name of the database you selected to
                          review.

Accesses                  Number of times data was requested from a
                          buffer.

Hits                      Number of times data was found in a buffer.

%                         Percentage of accesses represented by hits.

Overlays                  Number of times buffers were overlaid or
                          reused.

%                         Percentage of accesses represented by overlays.

Intrinsic                 Intrinsics called that accessed this database.

Calls/Tran                Average number of times this intrinsic was
                          called during the transaction.

 Summary DSet Inf         Displays the Summary TurboIMAGE Data Set
                          Information screen.
