HP SPT/XL User's Manual: Analysis Software

Detailed Intrinsic Information

This screen gives detailed information on a specific intrinsic.

If this intrinsic were called from more than one location, you could get
a display for each location by pressing  Continue.

The first information shown is the location from which the call was made.
This consists of the code file, which is the program file or perhaps an
XL library that called the intrinsic; the calling procedure, which is the
module within the program file or library that called the selected
intrinsic; and the offset and statement number of the procedure call.
The statement number is supplied only in PASCAL when the STATEMENT_NUMBER
option is used in the application's source code.

Access this screen by selecting  Intrinsic Profile to display the
Transaction Intrinsic Profile screen; from this screen select  Intrinsic
Detail and enter an intrinsic number.

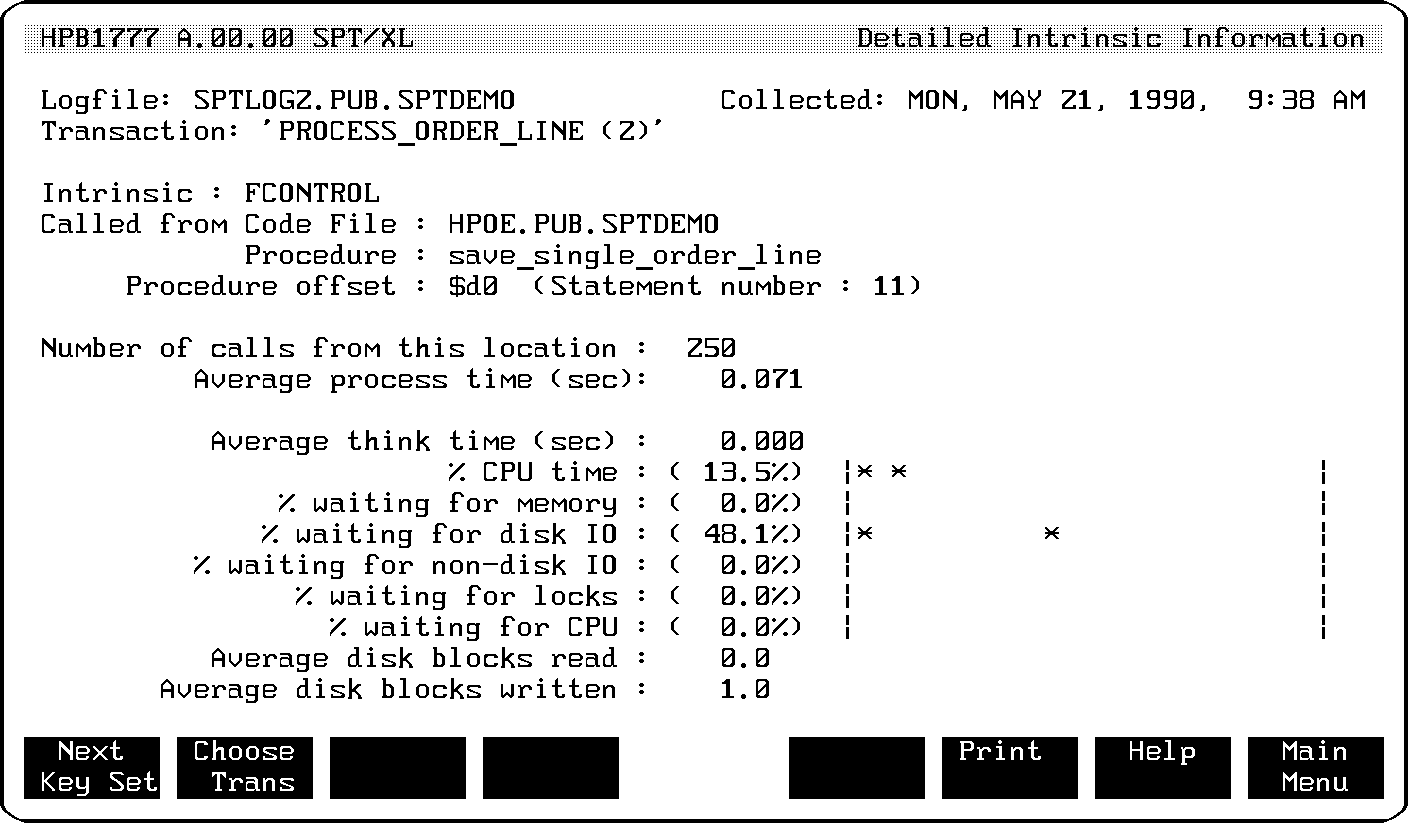

          Figure 5-5.  Detailed Intrinsic Information

Screen Definitions

Procedure                 Procedure that called the intrinsic.

Procedure offset          Hexadecimal offset into the calling procedure.

Number of calls...        Number of calls from the specified location.

Average process time      Average time this intrinsic took to process
(sec)                     when called from the code file location.

Average think time (sec)  Average time spent waiting for terminal input.

% CPU time                Percentage of intrinsic processing time spent
                          using the CPU.

% waiting...              Percentage of intrinsic processing time spent
                          in wait states.

Average disk blocks...    Average number of blocks read from or written
                          to disk.
