HP SPT/XL User's Manual: Analysis Software

Detailed TurboIMAGE Data Set Information

This screen shows which TurboIMAGE intrinsics were called against a
particular data set during the current transaction.  Buffer use
statistics are also shown.

Hash/Lock Conflicts displays the number of times a DBPUT to a master set
resulted in a record already being where the new record should go or the
average number of times record level locks conflicted.

Access this screen by selecting  DB Use to display the Summary TurboIMAGE
Database Information screen; from this screen select  Detailed DB Use and
enter a database number to display the Detailed TurboIMAGE Database
Information screen; from this screen select  Summary Dset Info to display
the Summary Data Set Information screen; from this screen select
Detailed Set Info and enter a data set number.

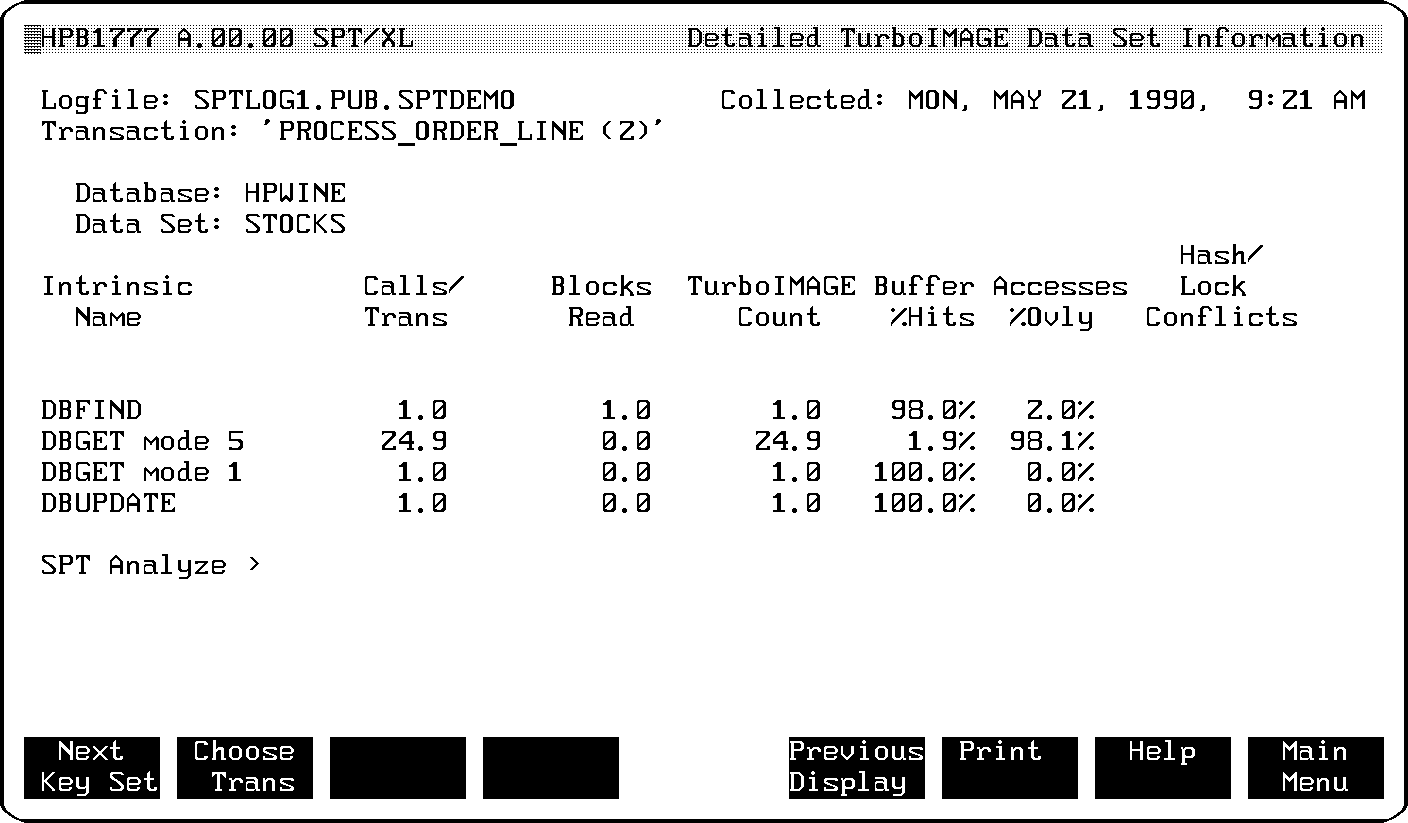

          Figure 5-7.  Detailed TurboIMAGE Data Set Information

Screen Definitions

Database                  Active database.

Data Set                  Active data set.

Intrinsic Name            Intrinsics called that accessed this database.
                          For DBGETS, separate entries are shown for each
                          mode used.

Calls/Trans               Average number of times this intrinsic was
                          called during this transaction.

IMAGE Count               Number of times data was requested from a
                          buffer.

% Hits                    Percentage of times data was found in a buffer.

% Ovly                    Percentage of accesses that caused overlays.
