Detail Procedure Sample Profile

One way HP SPT/XL monitors an application is to frequently sample the
instruction address where the application is executing.  This screen
presents the samples that were found in the this procedure.

You would typically want to review a particular procedure that has been
identified as a heavy CPU-resource consumer.

Access this screen by selecting  Sample Profile to display the Code File
Sample Summary screen; from this screen select  FileSmpl Profile and
enter a code file number to display the Code File Sample Profile screen;
from this screen select  Prc Smpl Profile and enter a procedure name.

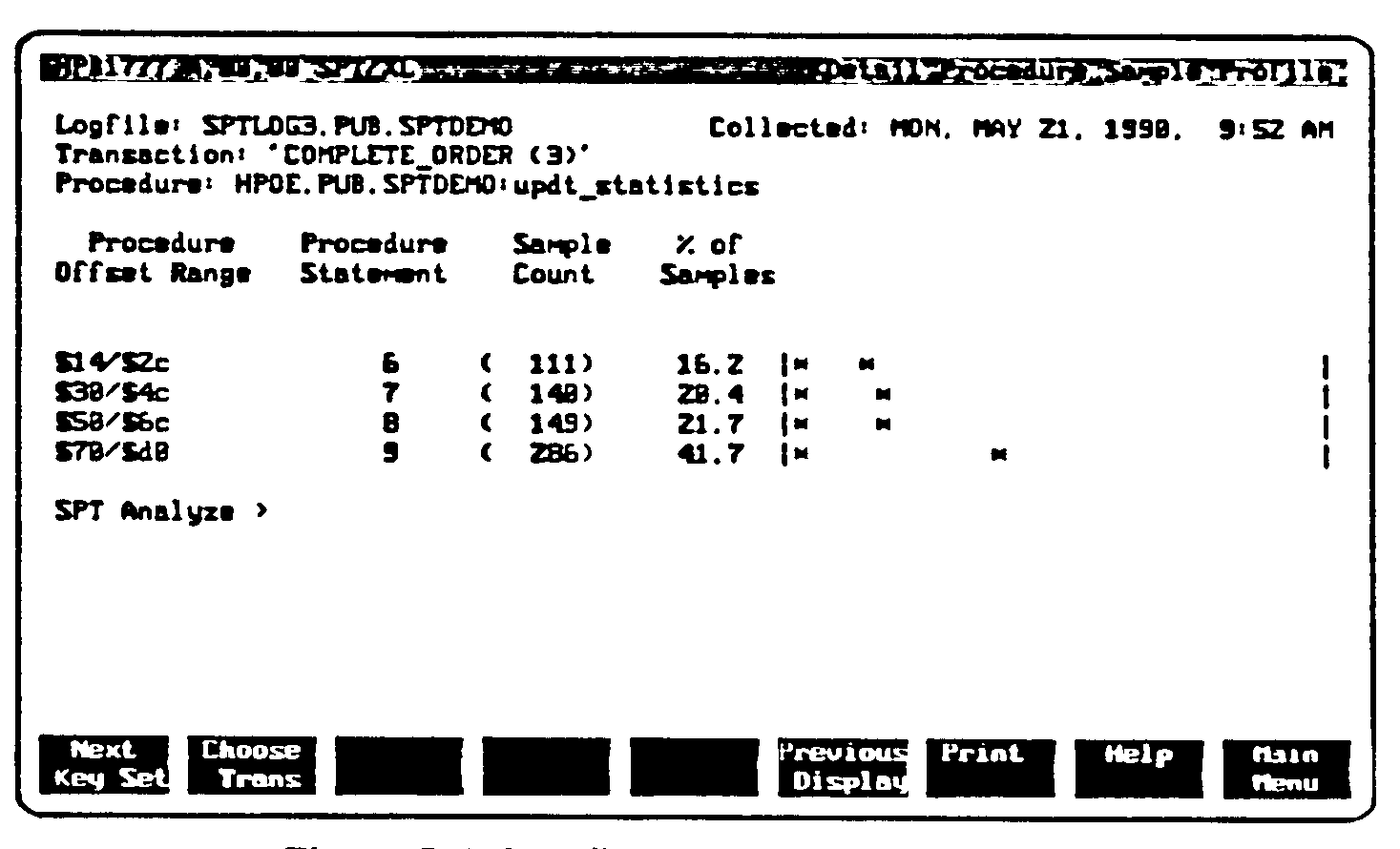

          Figure 5-4.  Detail Procedure Sample Profile

Screen Definitions

Procedure Offset Range    Range of instruction addresses corresponding to
                          the statement number in the next column, if
                          available.

Procedure Statement       Statement number, if available.

Sample Count              Number of samples found in the instruction
                          range.

% of Samples              Samples found in the range, as a percentage of
                          all samples in the procedure.
