HP LaserRX/MPE User's Manual: Analysis Software

Connect LAN Command

The Connect LAN command appears under the File menu.

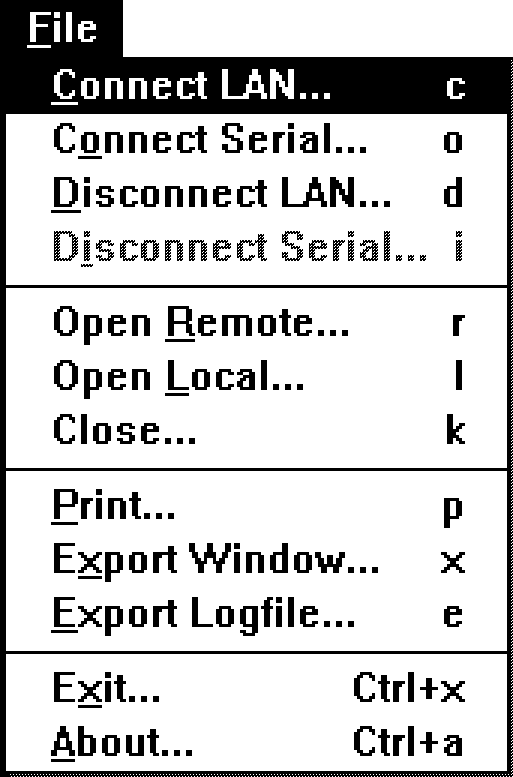

          Figure 10-15.  Connect LAN Command

The Connect LAN command establishes a LAN link between HP LaserRX/MPE and
a specific HP 3000 containing the logfiles you want to access and logs
you in to the target HP 3000 host.  A link may be established to a target
HP 3000 host through intermediate HP 3000s as required.

When you select the Connect LAN command, you get the Connect LAN dialog
box.

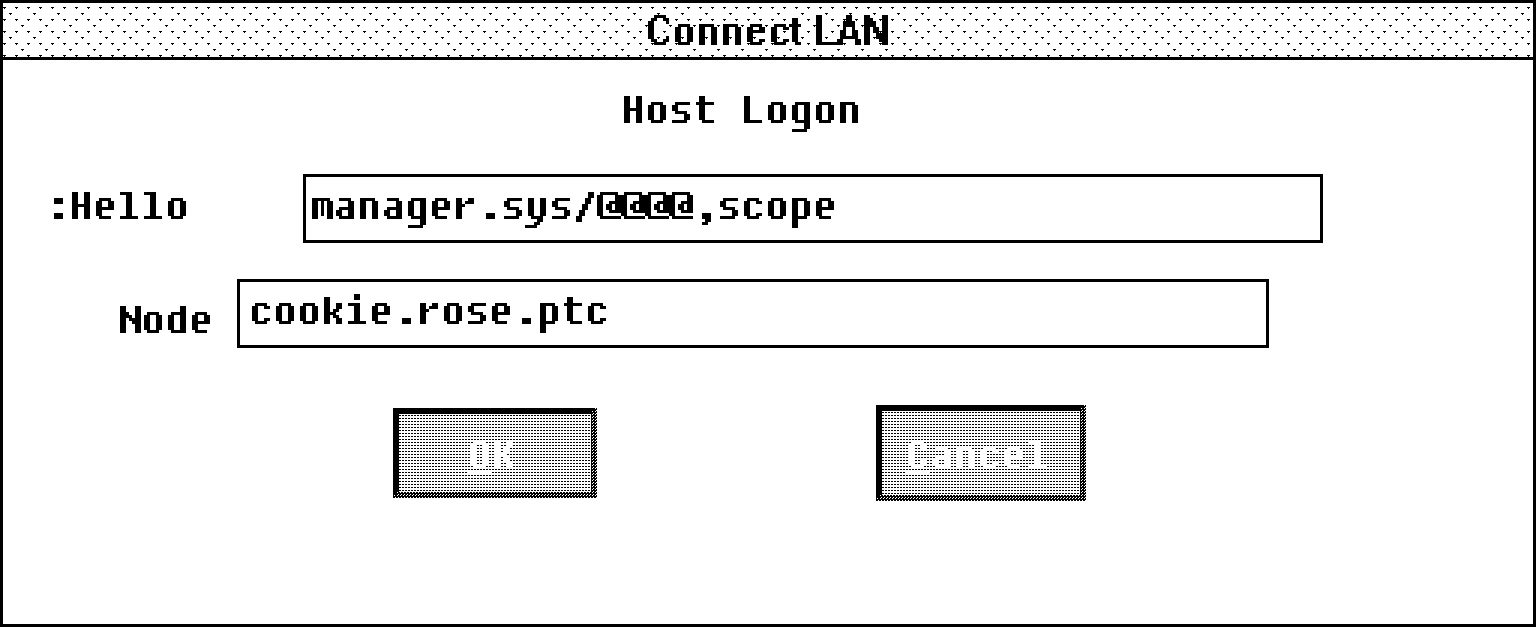

          Figure 10-16.  Connect LAN Dialog Box

The Connect LAN dialog box contains whatever default connection
specifications you have provided through the LAN Connect command under
the Configure menu.

You can override the defaults before you process the Connect LAN command.

Use this dialog box to issue a logon command to connect you to an HP 3000
over a LAN.

   *   Hello.

       Enter a logon string up to 72 characters long.  Passwords are
       masked and encrypted in the WIN.INI file.

       If you omit a required password, the connection fails.

   *   Node.

       Enter the node name of the HP 3000 to which you will connect.

Use the LAN Connect command under the Configure menu to create LAN
connect defaults.

Regardless of any connections made external to HP LaserRX/MPE, the File
Connect LAN command will attempt to issue a logon command to the
designated HP 3000 and establish a connection.


NOTE  Make sure that the HP OfficeShare Network software was loaded
      before Windows was started.  If it was not, exit Windows, load the
      HP OfficeShare Network software, restart Windows, and then start HP
      LaserRX/MPE. Otherwise the File Connect LAN command will fail.


Related Topics

"Auto Connect Option"

"Auto Connect Selection Option"

"Command File Option"

"Connect LAN Command"

"Connect Serial Command"

"Options Command"

"Serial Connect Command"

For more information on connecting to the HP 3000, see Chapter 4 .

For information on loading HP OfficeShare Network software, see User's
Guide--HP OfficeShare Network.
