HP LaserRX/MPE User's Manual: Analysis Software

Command File Option

The Command File option appears on the File Connect Serial and the File
Disconnect Serial dialog boxes.

The Command File option also appears on the Configure Serial Connect and
the Configure Serial Disconnect dialog boxes.

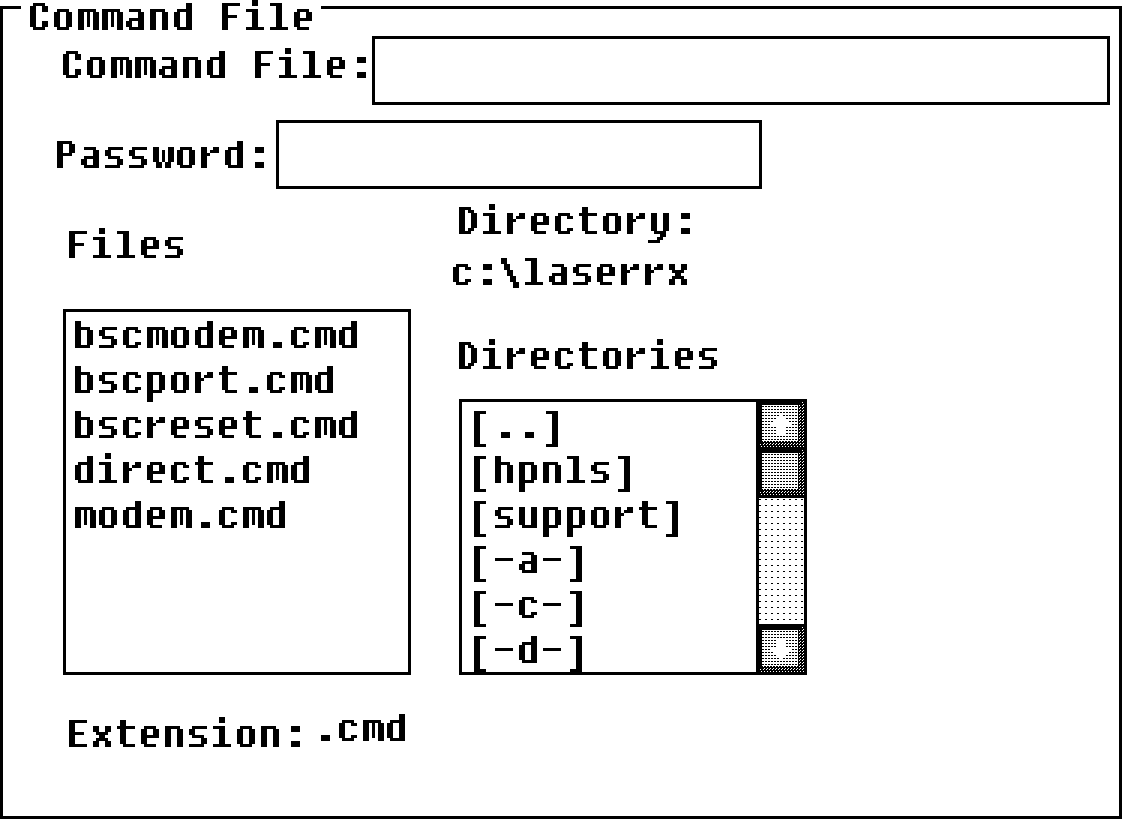

          Figure 10-14.  Command File Option

The Command File option specifies the name of a basic serial command file
containing commands that can connect you with or disconnect you from an
HP 3000.

You can use it to specify relatively sophisticated connection and
disconnection sequences.

You have the following options within the Command File option box:

   *   Command File.

       Fill in the Command File box by typing the fully qualified basic
       serial command file name.  The basic serial command file must be
       written outside of HP LaserRX/MPE before you enter the program.

       Alternately, locate and select a command file with the Files and
       Directories list boxes.  Only files with the .CMD extension are
       listed.

   *   Password.

       If the command file is protected with a password, you can enter a
       default password.

       You can use the BSCV utility to encrypt passwords in basic serial
       command files.

   *   Files.

       The Files list box lists the files in the current directory with a
       .CMD extension (the default extension for command files).
       Clicking a file selects it; the file name will appear in the
       Command File box.

   *   Directories.

       The Directory list box contains disc drives and directory names.

       When you double-click on a name, it becomes the current disc drive
       or directory and the Files list box is updated.

Related Topics

See Chapter 4  for basic serial connection and disconnection
procedures that use a command file.

See Chapter 9  for using basic serial command files with the HP
LaserRX/MPE -serialcmd batch interface command.

"Connect LAN Command"

"Connect Serial Command"

"Disconnect LAN Command"

"Disconnect Serial Command"

"Options Command"

"Serial Connect Command"

"Serial Disconnect Command"

For information on building a basic serial command file, see Using Basic
Serial Connection Files, which was shipped with the HP LaserRX/MPE
package.
