HP LaserRX/MPE User's Manual: Analysis Software

Auto Connect Option

The Auto Connect option appears on the Configure Options dialog box.

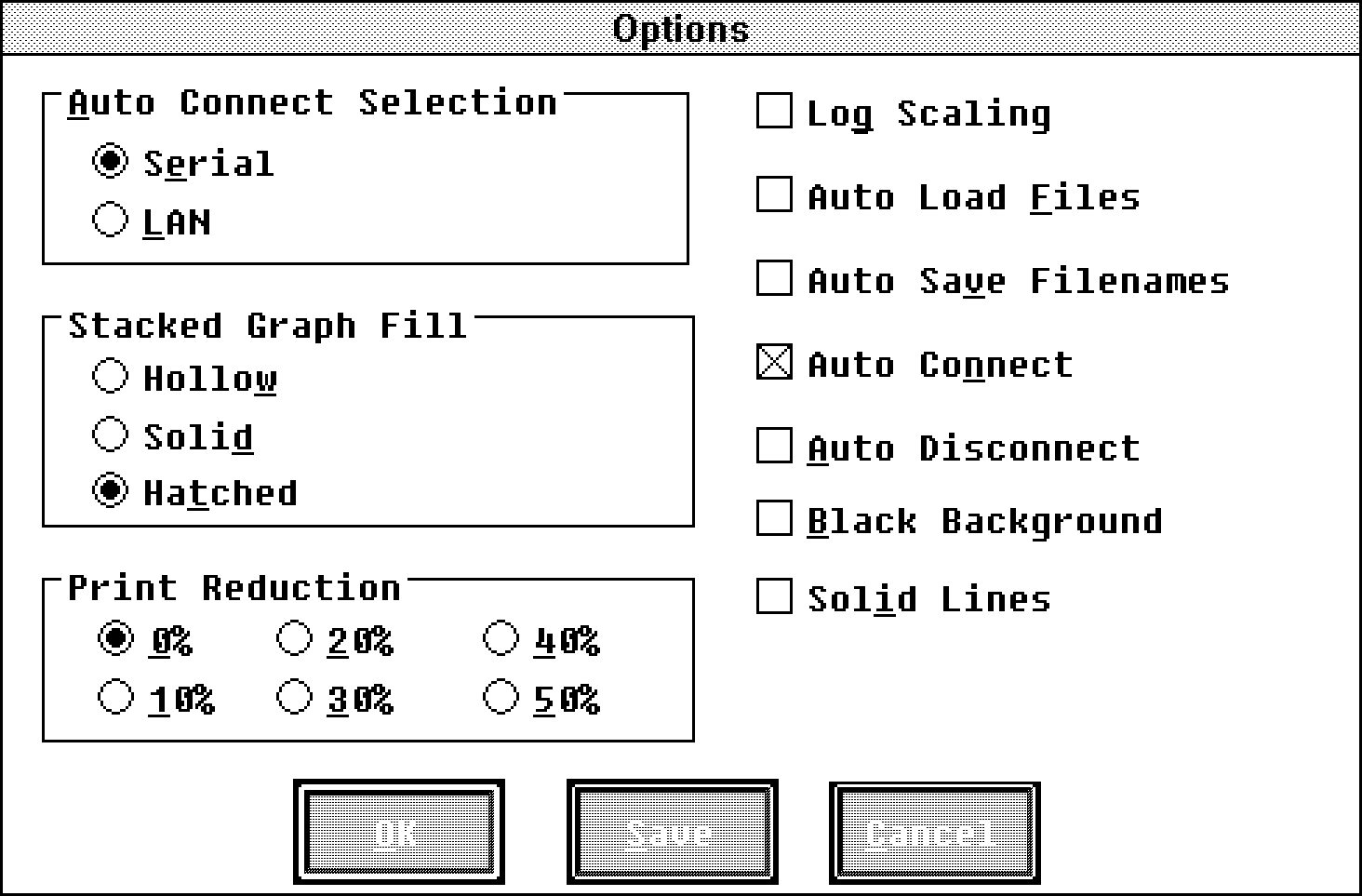

          Figure 10-4.  Auto Connect Option

Auto Connect, when enabled (checked), automatically connects you to one
HP 3000 when you start HP LaserRX/MPE.

This one connection can be either LAN or serial, depending on which data
communications mode is checked in the Auto Connect Selection:

   *   If LAN is checked, then you are automatically connected as
       configured in the Configure LAN Connect dialog box.

   *   If Serial is checked, then you are automatically connected as
       configured in the Configure Serial Connect dialog box.

Related Topics

"Auto Connect Selection Option"

"Auto Disconnect Option"

"LAN Connect Command"

"Serial Connect Command"
