HP LaserRX/MPE User's Manual: Analysis Software

Application Command

The Application command appears under the Zoom menu.

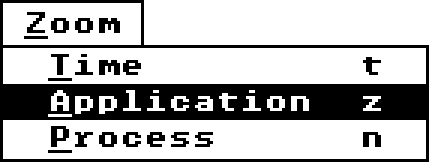

          Figure 10-3.  Application Command

Use the Application command to select a specific time interval on a
graph.  When Application is enabled (a check mark appears in front of
it), you can highlight any period on a graph by holding down the left
mouse button and dragging the cursor across it.  When you release the
mouse button, HP LaserRX/MPE creates a new tabular window that lists
applications that were active during that time.

You can zoom-by-application on any graph whose logfile contains
application detail data.  If the logfile from which the graph was drawn
contains no application detail data, HP LaserRX/MPE displays a message
informing you that it cannot draw the tabular window.

Time, Application, and Process modes of zoom cannot be enabled
simultaneously.  If you select one, the others are disabled.
