Process Details Screen

This screen allows you to define the logic commands that make up a
process logic block.  You must complete the process header screen before
you can use this screen to define the process logic block.

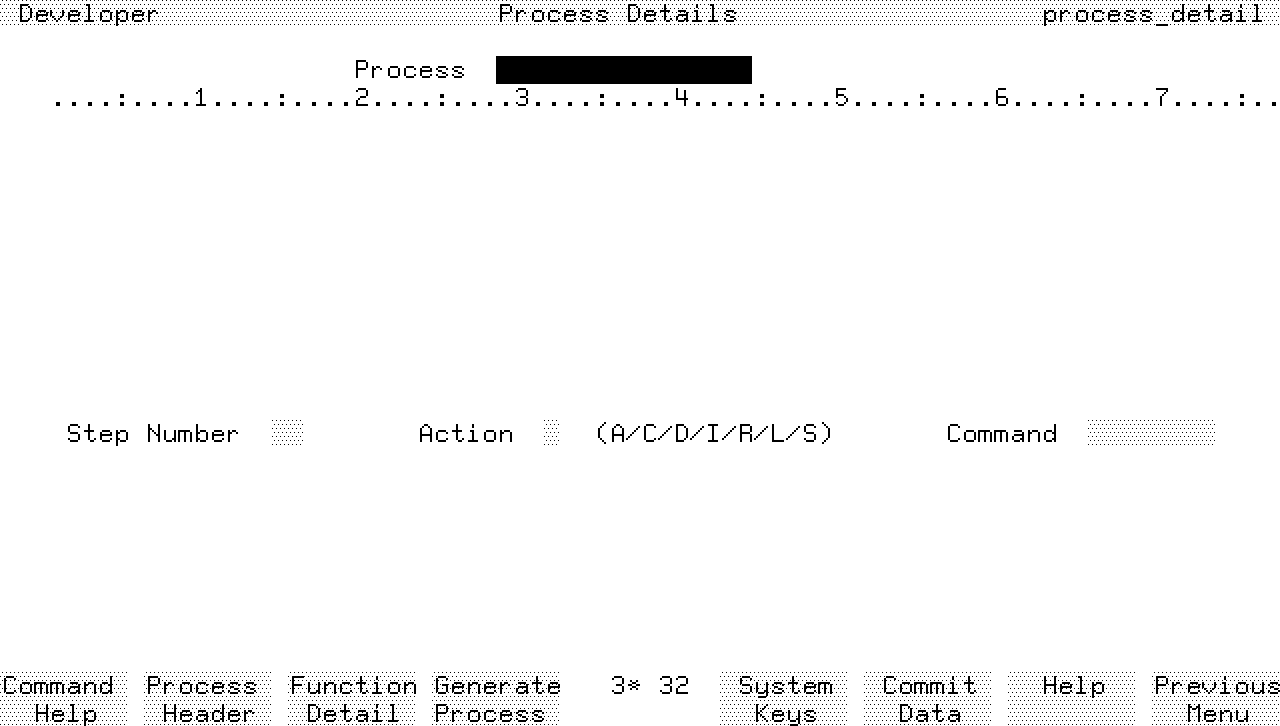

Screen Image




Field Descriptions

Process.  Enter the name of a process defined on the process header
screen.

Step Number.  Enter the number of the step to be added, modified or
deleted.  Step numbers must be in the range 1 to 99.

The top half of the screen displays up to 10 steps for the process.  This
display is always oriented around the step number entered.  Only the
first 76 characters of each step are displayed.

Action.  The following actions may be performed on the step corresponding
to the step number you enter:

        A         add a new step.

        C         change an existing step.

        D         delete a step.

        I         insert a new step before this one.

        R         renumber steps.

        L         list all steps.

        S         swap display pages.  (HP ALLBASE/4GL displays steps in groups of 10
                  from 1 to 99 -- that is, 1 to 10, 11 to 20, 21 to 30 and so on, in
                  the display area of the screen.)

If the current step is a new step, the action defaults to A. Otherwise,
the action defaults to C.

Command.  Enter the name of the logic command to be performed by this
step.  If the step already exists, HP ALLBASE/4GL displays the command
name automatically and skips this field.

If the command uses a window, HP ALLBASE/4GL displays it automatically.

If you leave this field blank, HP ALLBASE/4GL displays a general purpose
unformatted window, to allow free format entry of the command.

Function Keys

f1       Command Help  Displays a series of help screen containing a
        summary of the HP ALLBASE/4GL logic commands.

f2       Process Header  Cancels the current screen and displays the
        process header screen.

f3       Function Detail  Cancels the current screen and displays the
        function details screen.

f4       Generate Process  Generates the process.

Additional Information

If you enter the number of an existing step that uses a window, HP
ALLBASE/4GL checks that the contents of the fields will fit into the
window's fields.  If so, HP ALLBASE/4GL displays the window with the
command formatted into the appropriate fields.  If not, HP ALLBASE/4GL
displays the command on the general purpose window.

You must always press the  Commit Data  function key after you delete,
insert or change a command in the process.  The system does not update
the appropriate HP ALLBASE/4GL file until you commit the screen data.

The D- action blanks out the step from the screen.  However the step is
not deleted from the actual logic block until you press the  Commit Data
function key.

When you add or delete a step, HP ALLBASE/4GL renumbers the remaining
steps in the logic block.  HP ALLBASE/4GL also attempts to correct
references to the renumbered steps in logic commands such as ENTER.
However, after you add or delete a step, you should always check that
steps have been renumbered correctly, and references to renumbered steps
are correct.

You must generate a process before it can be used by the application at
run time.
